Currently the various plan view tabs are treated as their own “sheets” or pages. In other words if you print that tab you get exactly what is in the viewport scaled to fit into a regular sheet size (letter, 11x17, Arch C, Arch D). You cannot add in other geometry from other tabs. This seems to work reasonably well for most of these plan views (ie. Floor Plan, Foundation Plan, Roof Plan, Floor Framing Plan etc…)

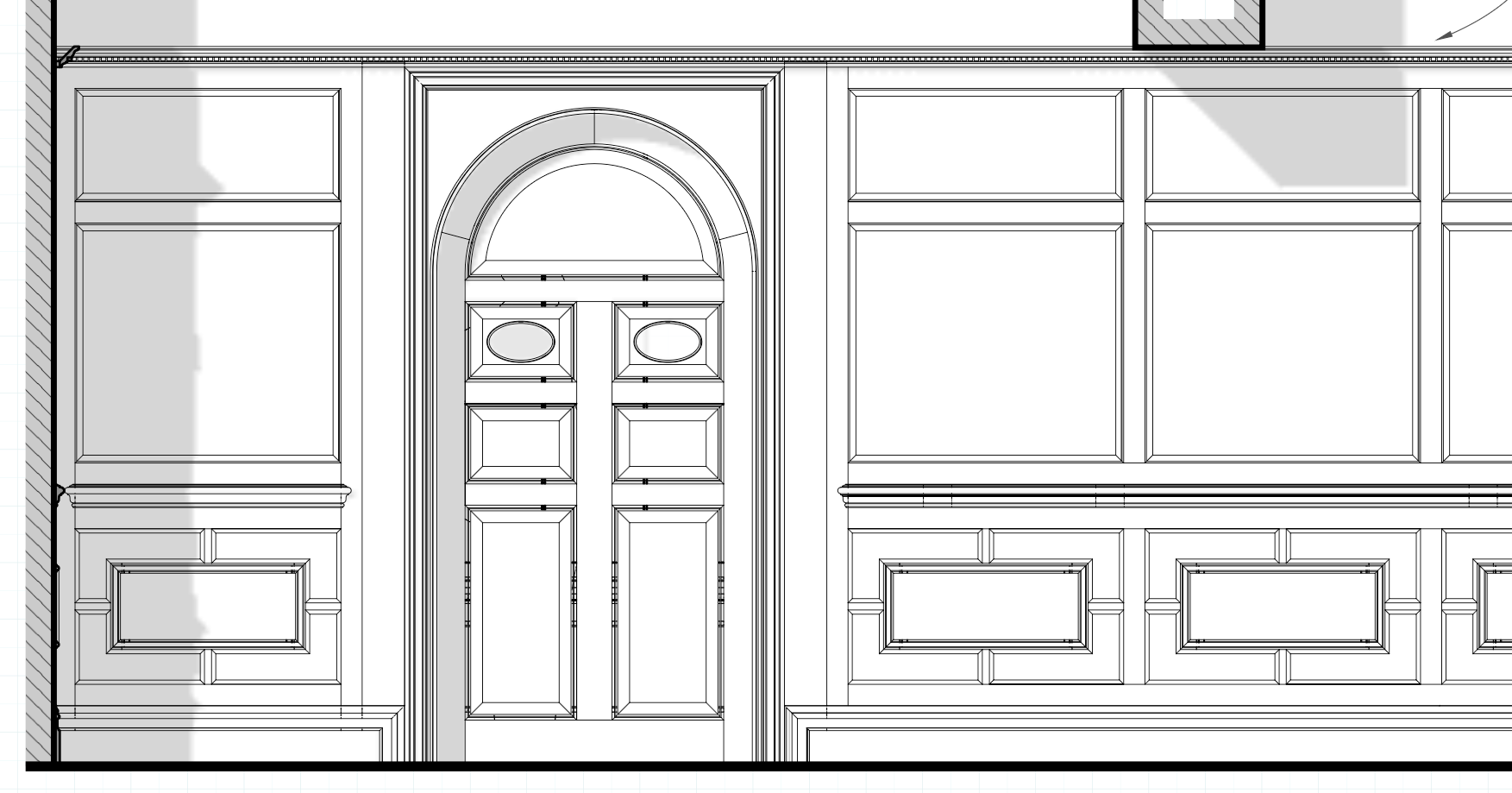

However, when it comes to elevation views things typically get a bit more interesting. Some designers like to put multiple elevation views on one sheet and in some cases all four if they will fit ( I like to do this for small ADUs for example). So it is not as easy as assigning one elevation view to one sheet, or even assigning two elevation views to one sheet, there needs to be more flexibility.
After giving this some considerable thought I decided what I really needed was a Layout system where the user can drag the elevations into the “workspace” and position them as they see fit, and then at that point add their annotations and dimensions. I have now created four additional Layout tabs where the user can do exactly that.
The only major thing I feel like I am missing at this point is a sectional view or section tool.
