• Maintaining style characteristics when exporting from layout

    2
    0 Votes
    2 Posts
    20 Views
    Dave RD

    @agifford87

    What version of SketchUp/LayOut are you using? If 2023 or 2024, make sure you untick the Output Override box in LayOut's Document Setup>Rendering. When that box is ticked, LayOut will render raster viewports as Hybrid or Vector depending on which option is selected. Both Hybrid and Vector rendering result in Vector linework. To show the sketchy line style the viewports must remain Raster rendered.

    Example: Same scene with a sketchy line style.
    Screenshot - 10_8_2024 , 7_57_26 AM.png

  • Murs structure composites / Composite wall structure Plan/Section

    2
    0 Votes
    2 Posts
    29 Views
    A

    @zulesg
    You can model wall internals in 3D, and Section will show you the contours of each element's cross section.
    However, to automatically display them with appropriate hatches is not possible in Sketchup.
    It's a feature found in BIM software, like Autodesk Revit. Sketchup acts more like 2D CAD application here.

    That said, you can send the sectioned scene of a model to Layout, and add hatches manually by drawing shapes and choosing pattern for them from Layout Scrapbooks.

  • LO Scale

    4
    0 Votes
    4 Posts
    33 Views
    Dave RD

    @djh Scale doesn't make any sense for Perspective views. That's why it is only available for Parallel Projection.

    Create scenes that show the model the way you want to see it in LayOut. When you insert the SketchUp file into LayOut, the boundary of the first viewport is determined by the size of the paper. It's unlikely that the aspect ratio of your paper matches the aspect ratio of the SketchUp model window. If the paper is oriented in Landscape mode, the height of the viewport will be set as a percentage of the height of the paper. The width of the viewport will probably get cropped a bit. That depends on the aspect ratios. If you only want a single viewport on a page, set up the scene so the model is well within the resulting viewport. You can use the Advanced Camera tools to show the safe area in the SketchUp model window. Figure out the aspect ratio of the paper you are using and either select a camera with the same ratio or create a custom camera to do that.

  • Size to fit Text Shortcut

    4
    0 Votes
    4 Posts
    28 Views
    Dave RD

    @Sekta said in Size to fit Text Shortcut:

    I tried the unbounded text, it behaves the same.

    Are you saying Make Unbounded works for your needs?

  • Cannot copy/paste in LayOut 2024 (Mac)

    1
    0 Votes
    1 Posts
    8 Views
    No one has replied
  • Change list separator spacing?

    8
    0 Votes
    8 Posts
    44 Views
    ntxdaveN

    @Dave-R Thanks for the reply anyway. 🙂

  • How do I show hidden geometry in LayOut?

    Unsolved
    4
    0 Votes
    4 Posts
    54 Views
    Dave RD

    @kzrdvd also note that the viewports must be rendered as Raster in LayOut. Hidden Geometry will not be displayed in Vector or Hybrid.

    Do you really want to show all the hidden geometry in the model or are you wanting to show hidden features as I have on the left in this image?
    Screenshot - 7_23_2024 , 8_40_39 AM.png

    This requires a different method if this is what you want.

  • Export PDF HYBRID

    1
    0 Votes
    1 Posts
    18 Views
    No one has replied
  • [Plugin] Create Layout File - by SketchUp

    12
    0 Votes
    12 Posts
    3k Views
    W

    @utiler Please rate our automatic layout export features https://youtu.be/RZZHyFv9fE4?si=s3FTAur6YxQcu7Ql

  • lenteur changement d'Ă©chelle layout

    2
    0 Votes
    2 Posts
    13 Views
    TIGT

    @chaours1

    Do you have any idea on the slowness of changing scale on layout (in my case several long minutes at least 5...)?

    Version
    Computer OS
    etc

    It should not take that long...

    Version
    Système d'exploitation de l'ordinateur
    etc.

    Cela ne devrait pas prendre si longtemps...

  • Split tool to cut contour lines

    Solved
    12
    1 Votes
    12 Posts
    83 Views
    A

    @Dave-R Got it! Thanks Dave...it did seem like overkill to lock both the viewport and the layers, but it seemed like one of my viewports was shifting (even though camera positions weren't changed) and I thought maybe I had been double-clicking into the viewport(s) w/o realizing it. Still not sure what I did, but it seems to be working now.

  • This topic is deleted!

    4
    0 Votes
    4 Posts
    15 Views
  • Upgraded PC but now can't export

    17
    0 Votes
    17 Posts
    69 Views
    grizzlerG

    @TIG Thanks for your collective wisdom folks, your efforts are appreciated.

  • Layout viewport screwed up

    21
    0 Votes
    21 Posts
    5k Views
    N

    @Dave-R Yes, I avoid modifying the camera in LO. At least I have a better understanding of this glitch now and can compensate for it. I also need to be more concise with my models and make better use of tags and visibility. I'm also fortunate enough to have Studio here with the massive power of Vray 6, which is a great incentive to be more organised with it's render layer capabilities.

  • Scrapbook drawing references

    8
    0 Votes
    8 Posts
    88 Views
    gullfoG

    yes, the reference-to needs the target drawing# and page identifier (name or #) to be entered manually. i usually create one first then copy and edit as needed. the target page, you have options for auto-numbering

  • Office365 and Onedrive

    8
    0 Votes
    8 Posts
    24 Views
    J

    I have the same work flow for years and never have an issue, sketchup files, excel, layout files all in a local onedrive folder. No corruptions but I do have to close excel to update the data in layout and have gotten used to working that way. My guess, as I'm no IT guy, is how onedrive handle excels autosave feature where everything you do is saved immediately meaning the file is always being held by onedrive and layout doesn't like it. I've always wondered if turning autosave off would fix it. Or, because the feature exists, means layout can't never get full access to the data (because onedrive and excel are always connected) thus it's a Microsoft problem, not a layout problem. and potentially why most people are scared of corruption.

  • Auto text section marks to their page number location

    2
    0 Votes
    2 Posts
    4 Views
    ntxdaveN

    Look at this set of links in the SketchUp forum. I think you should find the answer you need there.

  • Line Weight Issue

    7
    0 Votes
    7 Posts
    11 Views
    D

    @dave r said:

    OK. I think you already know this but I'll put it out there. SketchUp is not designed as a 2D drawing tool. When there multiple faces at the same height the graphics card has to decide which one should be in front of which and it often gets it wrong. The solution is to work in 3D so the graphic card doesn't get confused. Here I've moved the windows down 100 mm from the walls.
    [attachment=3:2nx5rs09]<!-- ia3 -->Screenshot - 1_18_2024 , 9_46_42 AM.png<!-- ia3 -->[/attachment:2nx5rs09]
    You wrote the the edges on the window had been deleted but that's not correct. If they had been deleted there's be no faces. The faces of the window end up occluding the edges of the opening in the wall.

    With the windows moved down and the reference updated in LayOut the heavier edges for the wall show as desired.
    [attachment=2:2nx5rs09]<!-- ia2 -->Screenshot - 1_18_2024 , 9_39_56 AM.png<!-- ia2 -->[/attachment:2nx5rs09]

    I've worked with a lot of students over the years who have been assigned to create 2D drawings in SketchUp and who have run into similar issues. Rug and furniture outlines disappearing in their plan views, case work disappearing in their 2D elevation drawings ... I also see students being taught to draw 2D elevations along with their 2D plans in SketchUp. It seems to me that it would make sense to use a 2D drawing application for making 2D drawings if only 2D drawings are required. LayOut can be used that way. Or get the students thinking in 3D much earlier in the process. They do have to learn about making things like section cuts to show plan and interior elevations but there's no chance of making elevations and plans that conflict like there is when making the individual 2D views. And it's more like what they'll do in the real world.

    Off topic but something you should pass on to the student. Make sure tag usage is correct. ALL edges and faces should be kept untagged. Only groups and components should be given tags.
    [attachment=1:2nx5rs09]<!-- ia1 -->Screenshot - 1_18_2024 , 9_40_36 AM.png<!-- ia1 -->[/attachment:2nx5rs09]

    And purging unused stuff periodically helps to keep the file size down and performance up.
    [attachment=0:2nx5rs09]<!-- ia0 -->Screenshot - 1_18_2024 , 9_51_22 AM.png<!-- ia0 -->[/attachment:2nx5rs09]
    This isn't a huge file but the same ideas apply. Purging unused stuff from this model reduced the file size by 87.5%

    Hopefully that all works for you.

    Thanks for your detailed response, Dave. I hear what you're saying about the 2D/3D, but this is how it's taught at the moment and so I need to be able to support it.

    That's odd about the faces still being there. Maybe I uploaded the wrong file. I've played with it so much I may haven't uploaded the version without the edges and face on the window - the version I have has no edge or faces.

    I know how to workaround it several ways, such as moving the symbol down along the blue axis, I just couldn't work out why it was happening if there was no edge or face on the window.

    Thanks very much for taking the time to look at it.

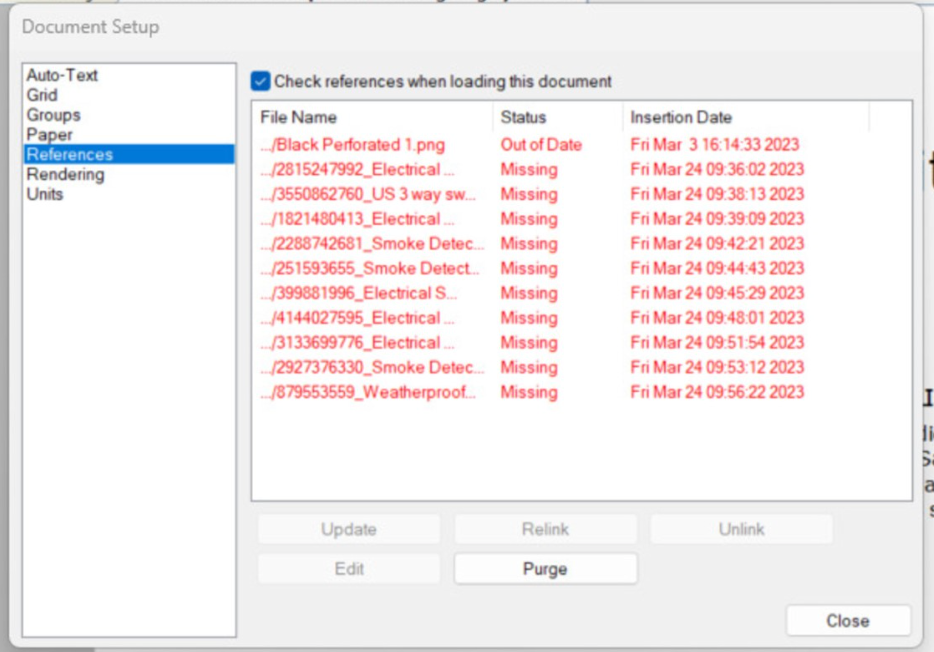

  • Updating model reference

    8
    0 Votes
    8 Posts
    7 Views
    Dave RD

    Yeah. It's kind of silly that we've never met in person. After we get through this cold spell and my feet warm up, I'll drive up there.

  • '! in the yellow triangle'

    3
    0 Votes
    3 Posts
    6 Views
    D

    Dave R,
    Presently, it's working properly again.
    Thank you.
