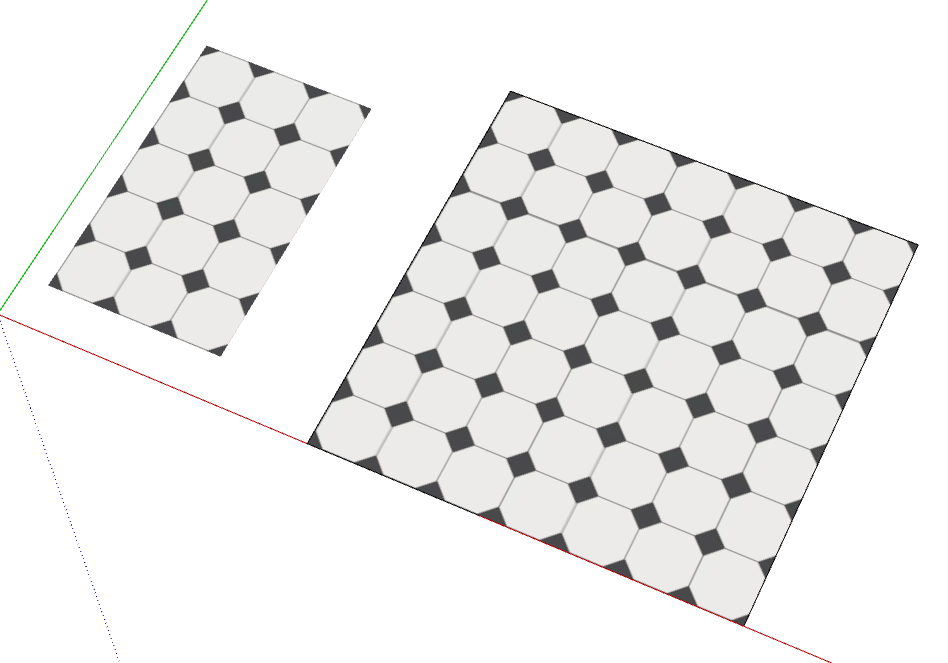

That's normal behavior for the method you are using. Easier approach to get the correct result would be to add the corner radius before cutting the large arcs.
Shop Creator [Trusted]
Those shop creators whose new products can be published without administrator's approval.
Private
Posts
-
RE: Beveled corners without overlaps
-
RE: [Plugin Beta] Animator - v4.4a - 01 Jun 25
Not in the current version. However, I think VRay has this function by default
-
RE: [Plugin Beta] Animator - v4.4a - 01 Jun 25
Animator has no control over VRay inner processing. Anyway, it's not surprising that the memory usage increases for a long job.
I would suggest you render by piece, say 100 frames. This feature is available in the latest version of Animator, with VRay 6 or 7. You may also use the cloud rendering.
-
RE: 3d dimensions visible for render
I don't believe there are any extensions to do that. You could use 3D text and drawn 3D dimension and extension lines to create the geometry. I find it's simper and faster to combine a couple of image exports; the render and a dimensions-only image direct from SketchUp. This is a quick 10 second render to show the idea.
The render:
The dimensions-only image export from SketchUp:
And after combining them in an image editor:
The layer for the dimensions is set to Multiply in the image editor. -
RE: Bevel Emboss or Whatever how can i make this in sketch up???
Did you look at the video on it's ExtensionStore page?

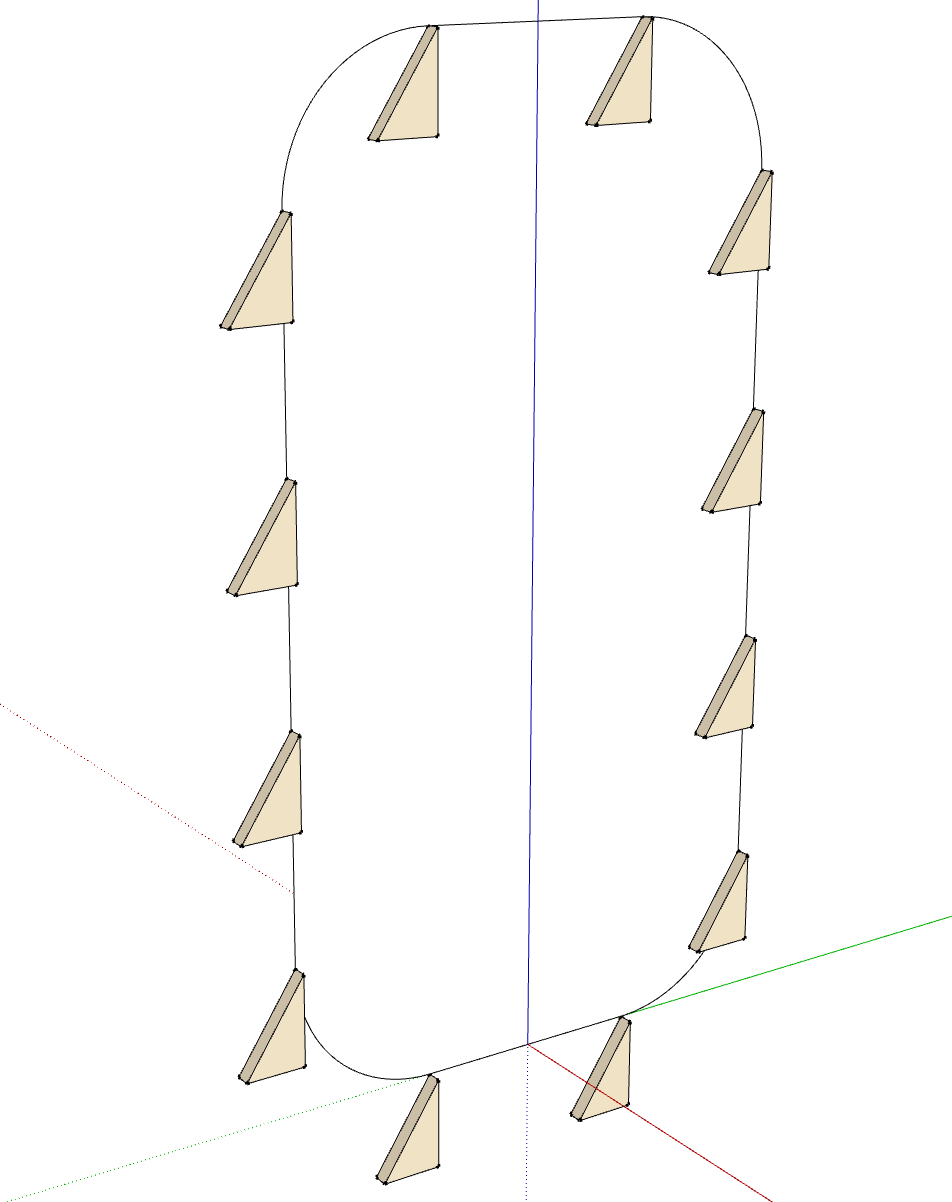

https://sketchucation.com/plugin/1103-extrudetoolsI still don't have time to do a video on the entire process but maybe this will help. I copied out the needed edges from the L I already made for this. Note that the straigh edges at the ends need to be divided into multiple segments and welded to make them curves. Two segments is enough, though. Going through the options I chose to no delete the original curves. Since the entire letter gets done in stages, you can't delete all of the edges after an extrusion because you'll need them for the neighboring steps.
-
RE: Bevel Emboss or Whatever how can i make this in sketch up???
Sorry. I don't have time to make a video right now.
What version of SketchUp are you using? How much experience do you have?
-
RE: Bevel Emboss or Whatever how can i make this in sketch up???
To illustrate what @Rich-O-Brien described, I made a 3D model in SketchUp based on your image.

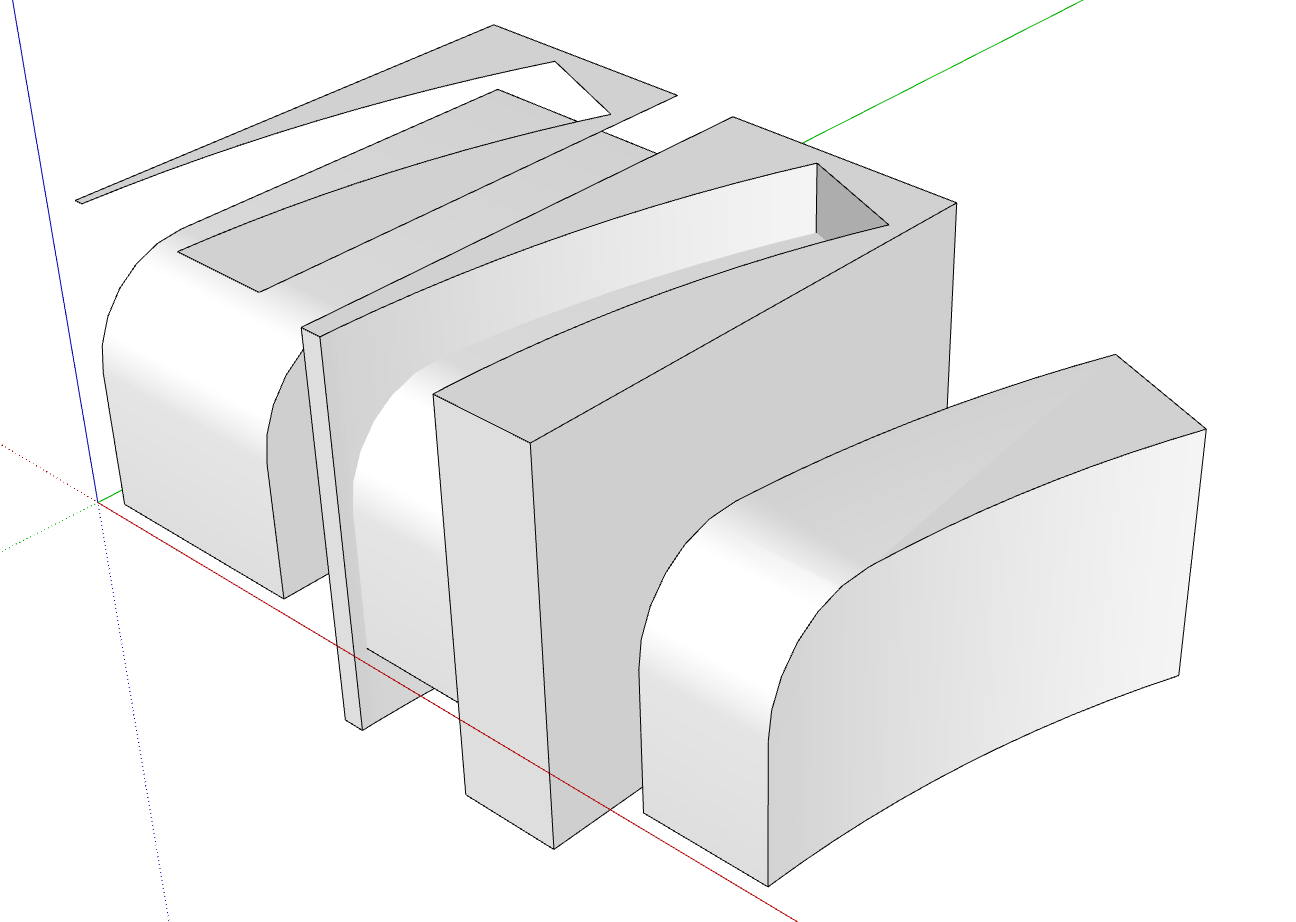

I imported your image into SketchUp as an image to trace. I made it quite large--200m tall--to avoid the tiny face issue. I used a combination of straight edges and Bezier splines drawn with FredoSpline to outline the letter, draw in the ridge lines and connect them at the various ends. Then I used TIG's Extrude Edges by Rails to create the sloped surfaces. Bybreaking it into a few sections, Extrude Edges is more controllable.
The blue edges show where I divided things up.
-
RE: FREDO ANIMATOR
The best is to send me the model with some explanations.
-
RE: [Plugin Library] LibFredo6 - v15.4a - 13 May 25
Which plugin, and for which version of Sketchup.
In general, the version of LibFredo6 indicated is just the minimum version required. The latest version should also work.
