I use Sketchup sometimes for non-professional stuff.
Therefore, I stick to the 2017 Make version with a series of plugins to do what I want to do. Basically, my only 'inconvenience' with this old Make version, and for which I did not find a decent solution via plugins, was the lack of support for importing vector graphics.
On Reddit, I found some 'traces' of a very old plugin to import SVG files (origin 2008, updated in 2013). However, it missed many SVG features. There were also some incompatibilities and dependencies that made it quite complex to install. More recently, Samuel Tallet (author of some great plugins on Sketchucation) removed some of these dependencies, and made it apparently also compatible, up to SU version 2024. But, the old deficiencies in terms of SVG features remained.

Because I had no solution for the import of 2D vector data with my old Sketchup version, I decided - a couple of months ago - to jump into this gap myself (only for personal use). I had to dive into Ruby coding, the Sketchup API and the SVG specifications. Quite an endeavor, but I finally succeeded to come up with something that works... At least for me ...

• I extended the original support for the limited set of SVG shapes (i.e. rectangles, and 'shapes' composed of lines and cubic beziers) to the full set of SVG geometry (i.e. addition of circles, ellipses, horizontal and vertical lines, polylines, polygons, as well as support for elliptical arcs and quadratic beziers, including the smooth variants of cubic and quadratic beziers).
• I added support for all types of transformations (translate, rotate, scale, X- and Y-skew), including combined transforms.
• I added support for fills and line colors in a more robust way.
• I added support for text, although this still faces a number of limitations (as I encounter problems to fully convert some SVG font attributes into equivalent 3D text objects in SU).
• I could substantially improve the import performance, especially for complex SVG files (often from many minutes to just some seconds).

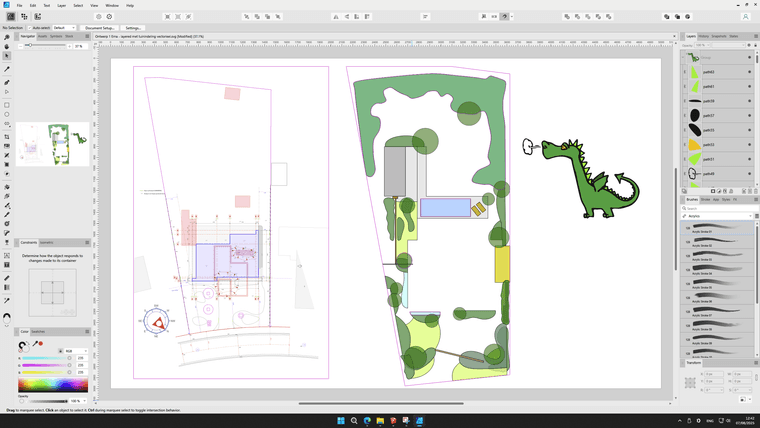

Below are some examples. The first example shows a screenshot of 3 files in my 2D graphics editor (Affinity Designer). Inkscape is a popular - and open source - alternative. Such editors allow to create SVG files, can read multiple vector formats (e.g. DWG, DXF, PDF) and also support the conversion towards SVG.

The first example is a site plan, with lots of text (measurements) and line colors, the second is a garden plan with multiple color-filled shapes, and the last one is a more 'graphical object' (that demonstrates an 'inconsistency' between 2D and 3D design constraints - cf. below).

()

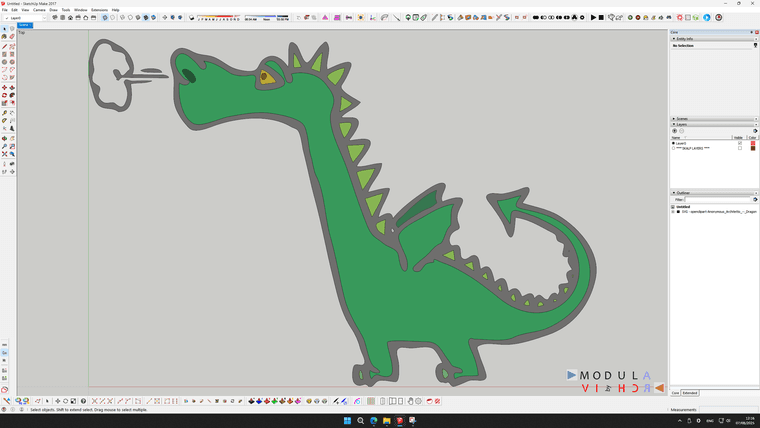

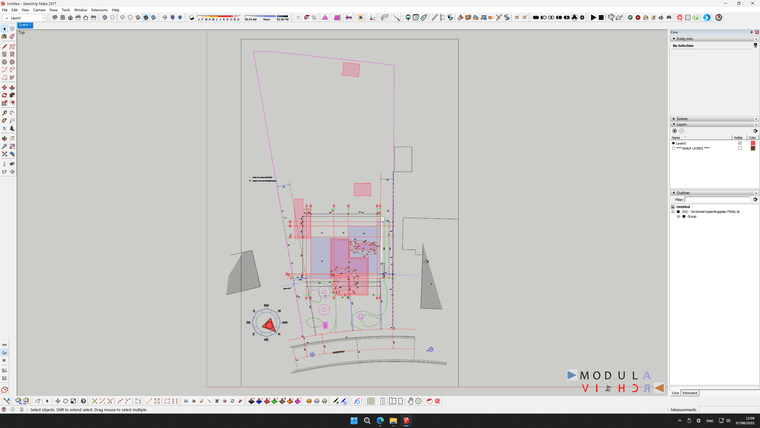

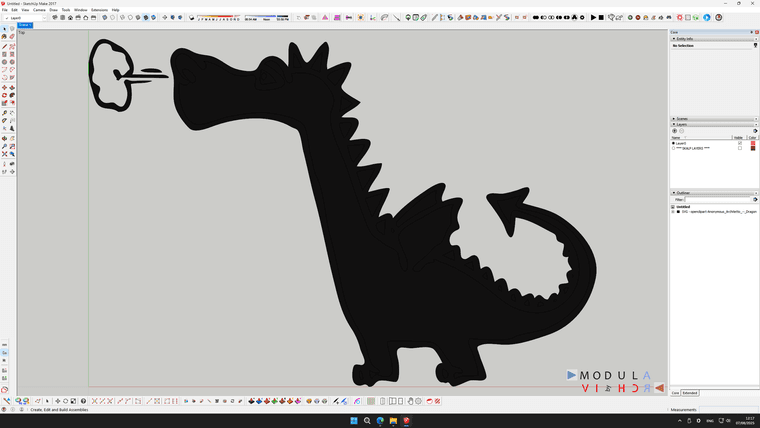

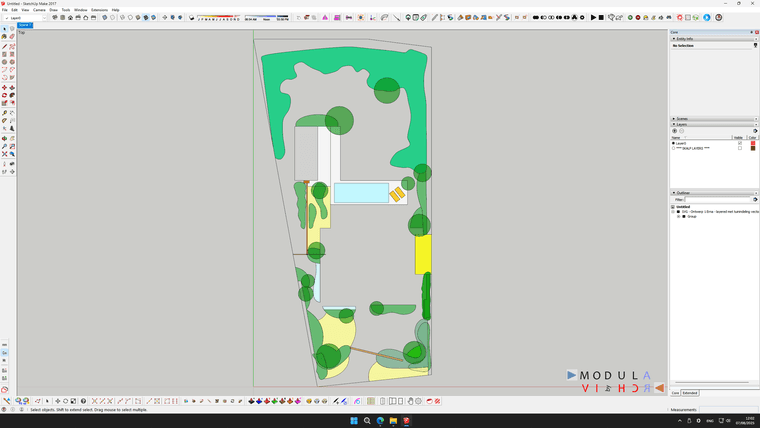

Next, you'll see screenshots of the corresponding SVG imports in Sketchup.

Due to the inherent differences between 2D and 3D modeling approaches, there are some caveats to take into account. The last 2 figures (the dragon) explain this. SVG works with lines and shapes. Lines ('strokes' in SVG) have a thickness. Shapes can be filled with color, but SVG shapes can also be put 'on top' of each other ('layered' and blended, like in a photo editor). However such layering is not possible when converting the 2D drawing into a 3D modeling tool like Sketchup. You'll end up with 'Z-fighting' of different shapes on the ground plane. All lines and shapes are properly imported, but they may overlap, which leads to the 'black dragon'. The overlap between the different shapes can be - manually ! - manipulated by selecting the shape in the outliner and cutting it out of the larger shape. You can 'visualize' the different composing shapes by using the X-Ray mode (cf the second dragon figure). Alternatively, this 'avoidance of shape overlap' can also be performed (and likely more efficiently) in a 2D editor, before exporting it to SVG, and importing it afterwards in Sketchup.

My 'extension' supports colored shape fills and lines, including transparency. Line widths (~edges) are (as always in SU) without stroke thickness.

The (optional) shape fill 'enhancements' in SVG (i.e. gradients, patterns, filters, masks) are, due to the lack of an equivalent, non-rasterized alternative for SU faces, always 'solid colors'.

If any such 'enhancements' would be required, this must be done (manually!!) in Sketchup via the import of bitmap files as material textures, after the SVG file is loaded. However, be aware that the rasterized nature of such textures, nullifies the benefits of the vectorial nature of SVG!!!

The 'extension' supports various color definitions (RGB, 3-digit and 6-digit hex, as well as the W3C color names). As Dan Rathbun pointed out above, this last color coding mechanism may not be supported anymore in SU2025. It should be possible to adapt the extension to translate these color names into equivalent RGB values, but this is currently not implemented, as I don't use SU2025. Thus, I also have no clue what may be the impact of the new PBR materials for my 'SVG Importer'...

As mentioned above, the support for texts is currently not 'perfect', due to inconsistencies between the way the SVG specification allows text formatting and the way SU's 3D text can be manipulated via the Sketchup Ruby API. However, if a 100% accurate import of the text elements (e.g. a detailed font design) is absolutely necessary, this can be achieved by 'translating the text into curves' with a 2D graphical editor. In this case, the text is handled like a regular 'SVG shape'. This will lead to a larger SVG file size. In case of lots of text, it might be easier to create the text directly in SU as well.

There is no documentation available for this 'personal extension'. I'm also not pretending that it is 'professional-grade' software. E.g. the only dialog box (to capture some parameters) is an old-fashioned (ugly) Sketchup UI.Inputbox. I had no need or intention to learn how to code HTML dialog boxes and how they interact with Sketchup...

I don't know your exact needs in terms of SVG import. But, if the above clarification of what I did, looks like a potential match, I have no objection to share it (without any guarrantee and/or liability). If so, please reach out to me via a PM on this forum.

Re: [Plugin][$] JointPushPull Interactive - v4.8a - 30 Mar 24
I have the latest version of this plugin installed. I also have the required versions of LibFredo6 installed. I'm using Sketchup Make 2017.
On regular times, the plugin crashes. An example of the crash report is shown below:

***Date: 20-May-24 13:15:14 - SU2017.2
An error occurred in Joint Push Pull
Error in Analysis of model

wrong number arguments: 4 or 6 required

body_lib6g6.rbe: 3139 -- linear_combination
body_lib6g6.rbe: 3139 -- vector_exact_average
jointpushpullalgo.rbe: 1369 -- joint_compute_direction
jointpushpullalgo.rbe: 1315 -- block in block_prepare_vertices_J
jointpushpullalgo.rbe: 1315 -- each
jointpushpullalgo.rbe: 1315 -- block_prepare_vertices_J
jointpushpullalgo.rbe: 1200 -- block in block_prepare_vertices_all
jointpushpullalgo.rbe: 1200 -- each
jointpushpullalgo.rbe: 1200 -- block_prepare_vertices_all
jointpushpullalgo.rbe: 524 -- algo_prepare_calculation_exec
jointpushpullalgo.rbe: 504 -- algo_prepare_calculation
jointpushpulltool.rbe: 866 -- dragging_start
jointpushpulltool.rbe: 1574 -- onLButtonDown***

As I mentioned, this doesn't occur all the time. However, one process to trigger the error is as follows;

• Start Sketchup with a new file.
• Draw a circle in the origin
• Convert this circle into a cylinder with the standard Sketchup Push/Pull tool.
• Convert the cylinder into a group
• Activate the Joint-Push-Pull methods and try to increase the volume of the cylinder.....
• The error window pops-up...

From time to time, after doing some other actions, the joint push pull starts working again (even with the same cylinder!)
PS1: I also tried to downgrade to an earlier plugin version that I still had available on my system (4.6a). The same issue happens with that version.
PS2: The error happens on my 2 PC's where Sketchup is installed (Windows 10 and Windows 11).

Thanks to verify what' going on. Hopefully a fix can be provided.
In case more information would be required, please don't hesitate to ask.

Isn't triangulation of all faces a native feature when you export your Sketchup model to Collada? Normally, it should be available behind the 'Options...' button in the Sketchup 'Export Model' dialog.
Next, there are indeed separate extensions that offer similar functionality, but these may be beyond your needs. So, best is to start with the out-of-the-box feature, and see how it works for your specific requirements.

I don't understand your dilemma...
I'm also using Sketchup Make 2017.

• I'm not familiar with 'gtlf'. I assume that you mean 'glTF'? I never used this format so far. Do you want to 'import from' or 'export to' this format? I understand that there are extensions that allow the exchange of models (both directions) with Sketchup. Do a search, both in the Extension Warehouse, and on Sketchucation. A good importer (for many formats) is the 'Universal Importer' extension that you can find on Sketchucation. For exports, look at the extension warehouse.
• Running Sketchup Make (2017) on a Windows 11 PC is no problem. I do it on two machines since quite long.
• Open and save Make 2016 files in Make 2017 shouldn't be a problem: Just select 'File|Save As...' in the menu, and select 'Sketchup version 2016 (.skp)*' in the dropdown box that is labeled 'Save as file' at the bottom of the dialog box. Opening a 2016 file in version 2017 is no problem, it works like opening any other SU 2017 file (menu 'File|Open...').
• Your files remain on your computer. Just save them to your harddisk.

@Dan-Rathbun

@Dan-Rathbun said in SVG or other vector file import WITH colors:

The only caveat is that SketchUp does not support some of the gray/grey spellings variants, and may be missing a couple of the more obscure color names.

Dan, thanks to clarify that my Ruby SVG Importer will also work with SU2025.
W.r.t. the spelling variants and missing names, my current plugin handles this already, based on your highly appreciated advise (couple of months ago in a thread on the Sketchup forum) .

As said in my previous post, I'm still facing some problems with text in my plugin.

I'll try to explain:
In my plugin, I translate SVG graphical information into Sketchup geometry on the ground plane (Z = 0).
W.r.t. text elements, I convert the 2D SVG text into (flat) 3D text objects in Sketchup. In SVG, the (Y-)position of (horizontal) text is based on the 'baseline' of the text. This baseline is a virtual horizontal line on which most characters 'sit'.
However, in SVG it's also possible to differentiate the position and look and feel (color, size, ...) of indiviual characters in a text string. This can be accomplished e.g. with a 'tspan' SVG element.
In such cases with specific settings for individual characters, these characters translate into separate SVG (sub)entities ('text' or 'tspan'), which in turn convert into multiple Sketchup 3D-text objects (subgroups of the main text group).

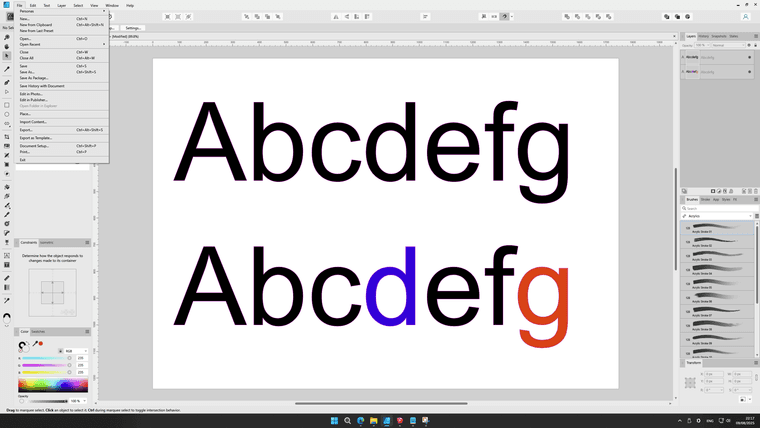

To clarify my problem, in the figure below (screenshot of my 2D editor), I show 2 SVG textstrings, composed of the first 7 characters of the alphabet ('a' to 'g'). For the first string (on top) all characters have the same characteristics, and thus create a single object. In the second textstring (at the bottom), the 'd' has a blue color, and the 'g' has a red color. This splits this textstring into 4 substrings ('abc', 'd', 'ef', and 'g').

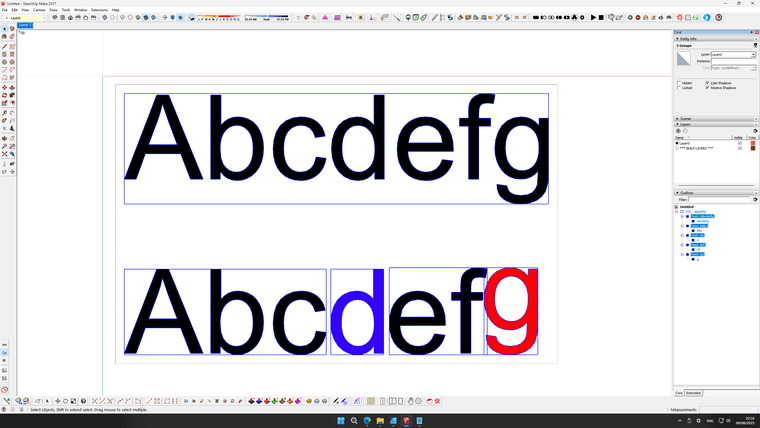

The screenshot below shows the result after importing this SVG file in Sketchup
