I'm not as skilled as my master @panixia, but I can still create some items with SubD.

Re: SubD examples and models

Su 2024 + vray 7 . Italian kitchen.

@HornOxx Thank you, you've been extremely helpful. I practically discovered that if I don't save the parameters, even if I go and change them manually and then export the image, it doesn't save the image with the correct parameters. If I save the parameters instead, it works. Anyway, I want to compliment you again because the utility is small but very, very useful, at least for me.

Thanks I solved it, I didn't understand why only that bar didn't work, anyway with the repair as administrator it solved it

@panixia yes, vray decals

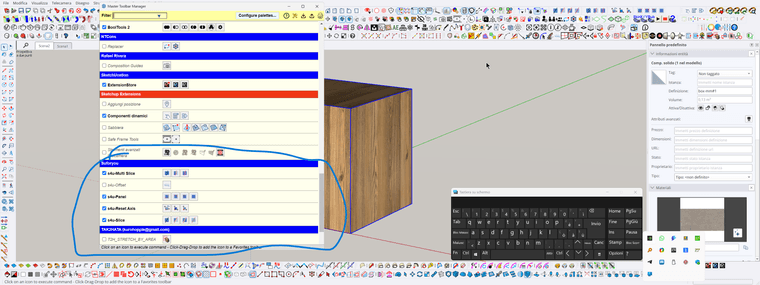

I have a problem with SketchUp 2025 that I can’t solve. Basically, every time I open SketchUp 2025, it doesn’t display the styles toolbar. I always have to open it every time, and once I’ve completed a task, I close, save, and reopen SketchUp, and it’s always the same issue. What can I do?![alt text]

@panixia it's the n°1

I love all the Fredo products when I use Fredo scale, but I have a problem. I would like to have the ability to scale an object by resizing just one or a single axis. This is possible with the standard scale disk by holding down the shift key and setting the measurement to which the entire object should scale. It would be nice to have something similar also on the cold skate.

@fredo6
This plugin is fantastic and very useful but not well known, which is why I would like to write an article about it for an Italian group, but I have a problem. Being disabled, when I open the Freddo Batch windows, they open at the top, above and outside the limits of the open SketchUp window, and due to my inability to use a normal mouse, I use a virtual mouse (eviacam). It's difficult for me to move the window because the top bar is used by eviacam but is not editable. It's only my problem, but this is the only plugin I have this issue with. Is it possible to have the windows open inside the SketchUp window?

@panixia In certain situations, I am willing to lose the instances. This is particularly true when I am building external component libraries: every component within is stripped of all scale and instance definitions. I accept this compromise.
Buon anno, Marcello.

@TIG @thomthom
The created Ruby script works with practically all objects and components, except for those not converted to SubD and QuadFace. Furthermore, these types of objects do not work even when handled individually with standard scale commands.

@tig
I have included a final status message and a count for the modified objects.

require 'sketchup.rb'

module Visual_Scale_Applier
  def self.apply_scale_to_selection
    model = Sketchup.active_model
    selection = model.selection

    if selection.empty?
      UI.messagebox("Seleziona gli oggetti a cui vuoi 'definire' la scala.")
      return
    end

    @count = 0
    model.start_operation('Definisci Scala Corrente', true)

    selection.each do |entity|
      self.process_entity(entity)
    end

    model.commit_operation

    # Messaggio di successo richiesto
    UI.messagebox("Scale definition of all objects/components successfully completed.\nElementi elaborati: #{@count}")
  end

  def self.process_entity(entity)
    return unless entity.is_a?(Sketchup::ComponentInstance) || entity.is_a?(Sketchup::Group)

    # Rende unico il componente se necessario per non influenzare copie non selezionate
    entity.make_unique if entity.is_a?(Sketchup::ComponentInstance)

    t = entity.transformation

    # Calcolo dei fattori di scala correnti
    scale_x = Math.sqrt(t.to_a[0]**2 + t.to_a[1]**2 + t.to_a[2]**2)
    scale_y = Math.sqrt(t.to_a[4]**2 + t.to_a[5]**2 + t.to_a[6]**2)
    scale_z = Math.sqrt(t.to_a[8]**2 + t.to_a[9]**2 + t.to_a[10]**2)

    # Applica la trasformazione interna se la scala non è già 1.0
    unless (scale_x - 1.0).abs < 0.001 && (scale_y - 1.0).abs < 0.001 && (scale_z - 1.0).abs < 0.001
      internal_scaling = Geom::Transformation.scaling(scale_x, scale_y, scale_z)
      entity.definition.entities.transform_entities(internal_scaling, entity.definition.entities.to_a)

      # Resetta il contenitore esterno a scala 1.0
      new_transformation = Geom::Transformation.axes(
        t.origin,
        t.xaxis.normalize,
        t.yaxis.normalize,
        t.zaxis.normalize
      )
      entity.transformation = new_transformation
      @count += 1
    end

    # Processo ricorsivo per elementi nidificati
    entity.definition.entities.each do |child|
      self.process_entity(child)
    end
  end
end

# Esecuzione
Visual_Scale_Applier.apply_scale_to_selection

@TIG I think I found it. Gemini gave me this solution and it works logically. The components will become unique, but it does exactly what I wanted. Since you're the expert, could you check if it works well?

require 'sketchup.rb'

module Visual_Scale_Applier
def self.apply_scale_to_selection
model = Sketchup.active_model
selection = model.selection

if selection.empty?
  UI.messagebox("Seleziona gli oggetti a cui vuoi 'fissare' la scala.")
  return
end

model.start_operation('Fissa Scala Corrente', true)

selection.each do |entity|
  self.process_entity(entity)
end

model.commit_operation
puts "Scala 'fissata' a 1.0 per la selezione e tutti i contenuti nidificati."

end

def self.process_entity(entity)
return unless entity.is_a?(Sketchup::ComponentInstance) || entity.is_a?(Sketchup::Group)

# 1. Se è un componente con più copie, lo rendiamo unico per non rovinare il resto del modello
entity.make_unique if entity.is_a?(Sketchup::ComponentInstance)

t = entity.transformation

# Estrarre i fattori di scala correnti
scale_x = Math.sqrt(t.to_a[0]**2 + t.to_a[1]**2 + t.to_a[2]**2)
scale_y = Math.sqrt(t.to_a[4]**2 + t.to_a[5]**2 + t.to_a[6]**2)
scale_z = Math.sqrt(t.to_a[8]**2 + t.to_a[9]**2 + t.to_a[10]**2)

# Se la scala è già 1.0, non facciamo nulla su questo livello
unless (scale_x - 1.0).abs < 0.001 && (scale_y - 1.0).abs < 0.001 && (scale_z - 1.0).abs < 0.001
  # 2. Creiamo una trasformazione di scala per la geometria interna
  internal_scaling = Geom::Transformation.scaling(scale_x, scale_y, scale_z)

  # 3. Trasformiamo la geometria interna (bordi, facce, etc.)
  entity.definition.entities.transform_entities(internal_scaling, entity.definition.entities.to_a)

  # 4. Resettiamo la scala del contenitore esterno a 1.0 mantenendo posizione e rotazione
  new_transformation = Geom::Transformation.axes(
    t.origin,
    t.xaxis.normalize,
    t.yaxis.normalize,
    t.zaxis.normalize
  )
  entity.transformation = new_transformation
end

# 5. Entra ricorsivamente nei gruppi/componenti nidificati
entity.definition.entities.each do |child|
  self.process_entity(child)
end

end
end

Esegui

Visual_Scale_Applier.apply_scale_to_selection

@TIG
Is it necessary to repeat this operation for every single object? I need a single command to set the scale for all selected elements (including nested components and groups) with just one click. Otherwise, it would be faster to do it manually

@TIG I've tried but it doesn't work. I'm attaching an image as an example where I've modified the scale of each cube and also the scale of a group that contains three cubes. In practice, I would like that once all objects are selected, I can define the scale for all of them, even those nested inside the group.

@TIG I didn't manage to do it. In your opinion it's not a useful function. I would need it. there is a solution

I’m not a programmer, and I don’t know Ruby. I tried using artificial intelligence to create a plugin, and it works, but only on main objects and components, not on nested ones.

Is there a way to "define the scale" of a group of objects or multiple selected components simultaneously, with the option to also scale nested objects and components? For me, it’s a useful command, but I haven’t found a solution.
