Any good tutorials on BEVEL gear design in SU?
-
Another thing to keep in mind is that the bevel angle on the gears may not be 45° for a right angle drive. You'll have to play with that to get the correct angles so the teeth will mesh properly. You may not be able to get the exact ratio you're after, either.
See the calculator on this page: https://www.engineersedge.com/calculators/spur_gear_calculator_and_generator_15506.htm for figuring out pitch diamter based on the number of teeth.
-
Thanks for the reply.
I will be open (to a limited extent) about the model I need to build. Can't show all due to patent reasons.
I am using a Centimetre Drawing unit which will translate to Millimetres when printed on a Snapmaker A350 (when I get it).
It has a print resolution of .05mm in XY and .12mm in Z axis. So my minimum line segment length has to be .05mm or greater.
So drawing in Centimetres or Meters makes little difference, except I can mentally visualize in Centimetres better.The actual dimensions of the gears are determined by several factors, but can vary a bit (1 or 2 mm) if and as needed. However the ratios are firm.
All are bevel gears, ranging in size from (about) 20mm (printed), 25mm, 50mm, 140mm and 280mm (see drawing). I usually go by outside diameter rather than pitch diameter, but I can adjust to one or the other if needed.
There are 6 types of gears, A to F.
A - About 50 mm diam printed. There are several of these same gears, but I only show 2. The tooth count really does not matter and I will adjust as needed.
B - The Main ring gear is about 280 mm diam meshing to gear A. Again, tooth count really does not matter but MUST be an even count.
C - MUST be the same diameter and tooth count as A, but the bevel angle is different. There is only 1 in the model.
D - Is a smaller ring gear meshed only to gear C. The diameter and tooth count MUST be EXACTLY 1/2 that of gear B. (140 mm diameter) This is critical.
E - Is a "standard" 45 degree bevel gear, about 25 mm diameter and no specific tooth count, but not too fine. There are 5 of these same gears forming a differential.*Ignore the unlabelled gear to its left. That is a whole other problem to solve. It is a worm gear with diam and tooth count to be determined by some complex math once these other gears are known as well as other factors.*F - Are also 45 deg bevel gears, same as gear E but smaller, about 20 mm diameter. There are 6 in the model.
So the 2 really difficult gears to design are gears B and D in order to mesh properly with gears A and C respectfully..
FYI; Gears A, C and E are connected with concentric shafts and form the 50% RPM reduction needed between gear A and C.When I first started SPGears, I created a 45 deg bevel gear with some arbitrary values, as I still do not full understand its dialog box.
I played around a bit to figure what it was made of; (lots of components) then simplified it to a solid and removed unnecessary soft lines.
But it also produced gear teeth with lots of tiny overhangs (in red) where a lot of work will be necessary to remove support material. I will modify the single gear tooth component to eliminate that overhang.
I would appreciate if you could fully explain the SPGears dialog box as some of the terms are not reflected in other documentation.
jgb
-
@jgb Hi, first of all, congratulations. At your age, you still have a strong desire to create. I am retired and 100% disabled, and I still want to create something. If you want, I can give you a hand, but you have to show me with a rough drawing without gears what you want to do. At most, you can make the gears without the teeth. Then, if you want and without any obligation, I can help you; I have plenty of time.
-
@jgb If instead you want to look for something already done, try checking this site which is free and has many models, but they are mostly in STEP or 3DSMax format. Then I can explain to you how to convert 3DSMax files for free and legally."If you want to look for something already done, try checking this site that is free and has many models, but they are mainly in STEP or 3DSMax format. Then I can explain how to convert 3DSMax files for free and legally.
Free CAD Designs, Files & 3D Models | The GrabCAD Community Library
The GrabCAD Library offers millions of free CAD designs, CAD files, and 3D models. Join the GrabCAD Community today to gain access and download!
(grabcad.com)
-
@alexpacio2013
Thanks, but there is nothing about my model that has predefined printed parts. Other than motors, screws, bearings and some electrical parts, all of it is a unique design.
I have visited this site before and it has a lot of neat stuff, but nothing appropriate to my model. -
@alexpacio2013
Thanks. I know what you mean to be retired and have "plenty" of time on your hands. Even so, I have been working on this concept for over 7 years and the model to prove it will work for about 4 years now. Plenty of time but plenty of distractions as well.My model design is complete, except for the actual gears design and some final wire routing.
However, if you have expertise in trigonometry and Excel I could use some help in some spreadsheets I cannot wrap my head around.
The main spreadsheet is a simulation of the model both for proof of concept, animated demonstration/presentation and design of some part sizes for a real life-sized device.I would need you to commit to an NDA to bring you on board, as I have about 7 patents to reveal for you to help me..
-
I have no problem signing an NDA; it’s not that I’m an engineer or an expert in complex calculations. I have some experience and wherever I can, I help you, especially with the drawing, so don’t worry. If you can tell me which sector the idea is in, maybe it has been one of my experiences. My email is [Redacted]@gmail.com.
-
@jgb said in Any good tutorials on BEVEL gear design in SU?:
I would appreciate if you could fully explain the SPGears dialog box as some of the terms are not reflected in other documentation.
Looks like Roberto is taking over so I'll leave it to him.
-
@alexpacio2013 I removed your email address. Last thing you need to tons of Spam.
If you guys need to swap details use the Chat feature to privately discuss options.
-

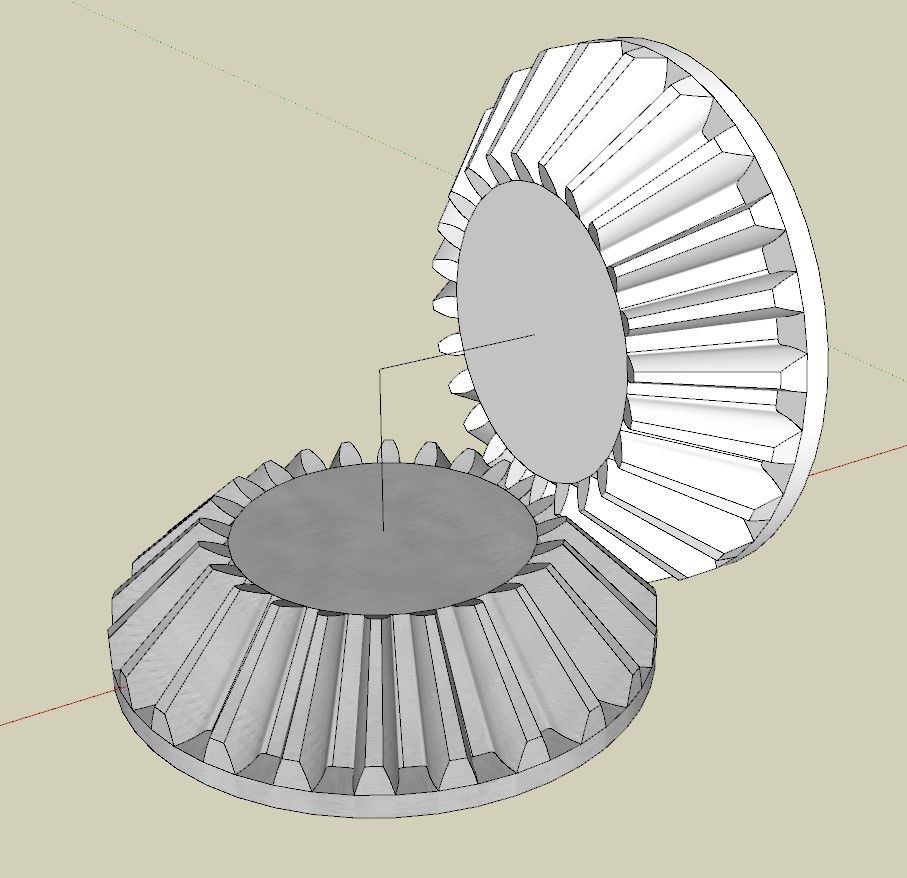

Spent the better part of yesterday getting this gear right (I hope). It is a 24 tooth bevel gear 22.5 mm diam (drawn in centimetres). Gear E in my diagram above.
SPGears created a fairly close model. I had to compare that model to my desired cross section and manipulate it into shape.
I had to get rid of the overhangs on each tooth to avoid any supports. That was the tedious part. (I'll show how later today)Thankfully SPGears creates each tooth as a circular array of one tooth, so editing is relatively easy.
Then I had to make a single generic hub as the 5 gears, plus the other smaller gear (scaled down a bit) have different hubs. That part was far easier.
An SPGear is actually a group of 2 nested groups, the set of teeth, and the hub, done in a strange way, but hey, it works. I made it a component of the 2 nested groups.
To make sure the gears mesh correctly (fingers crossed) I duplicated the SPGear and turned it 90 deg. I drew an axial line to the vertex within the component for alignment purposes. I then turned it 90 degrees and mated them at the vertex. I also rotated the vertical gear 7.5 deg (24 teeth) to properly mesh the 2 gears. That resulted in a large gap between teeth.
By eye I moved the vertical gear along blue and red axis (equally) till I got a nice mesh with a bit of play. Then adjusted (shortened) the vertex end of the axial line accordingly.
There were tiny overlaps.
So I had to scale the 2 face ends of the teeth a bit to clean up the mesh. Only after all that was I able to redraw the large end to eliminate the overhangs.
I cannot yet print a pair to test as I do not yet have a printer (long story, and it's not the $$$)
Later.......
