    changing radius on a radius

    Scheduled Pinned Locked Moved SketchUp Discussions
    11 Posts 3 Posters 55 Views 3 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L Offline
      Leggy
      last edited by

      bosch dust collector 6.dwg bosch dust collector 6.dxf

      hope these help

      1 Reply Last reply Reply Quote 0
      • Rich O BrienR Offline
        Rich O Brien Moderator
        last edited by

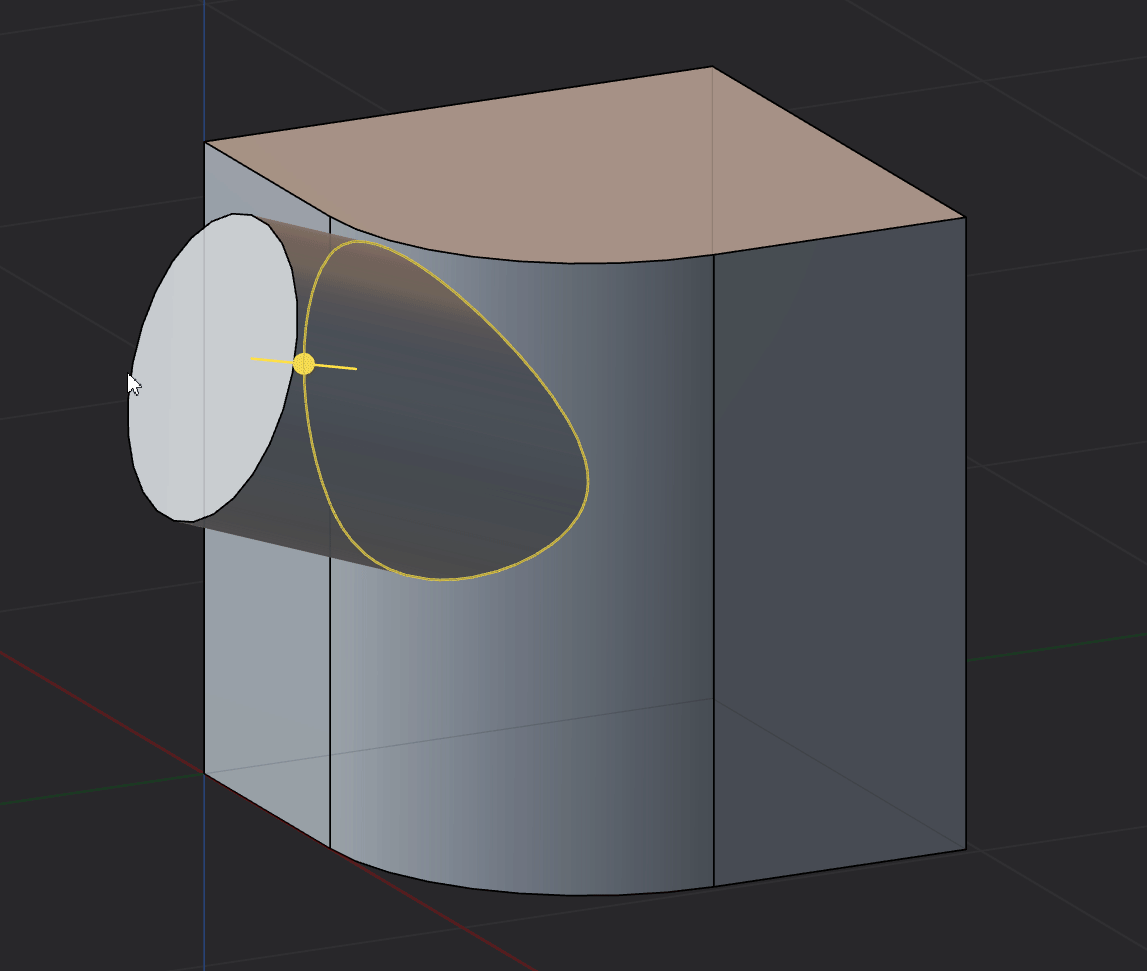

        This is more suited to a NURBS environment rather than SketchUp because you are lookiing to create variable fillets.

        ToolOnSurface Offset tool will help you out to a degree to get some type profiles you could loft. But there's no magic bullet.

        Download the free D'oh Book for SketchUp πŸ“–

        1 Reply Last reply Reply Quote 0
        • Rich O BrienR Offline
          Rich O Brien Moderator
          last edited by


          Download the free D'oh Book for SketchUp πŸ“–

          1 Reply Last reply Reply Quote 0
          • Dave RD Offline
            Dave R
            last edited by

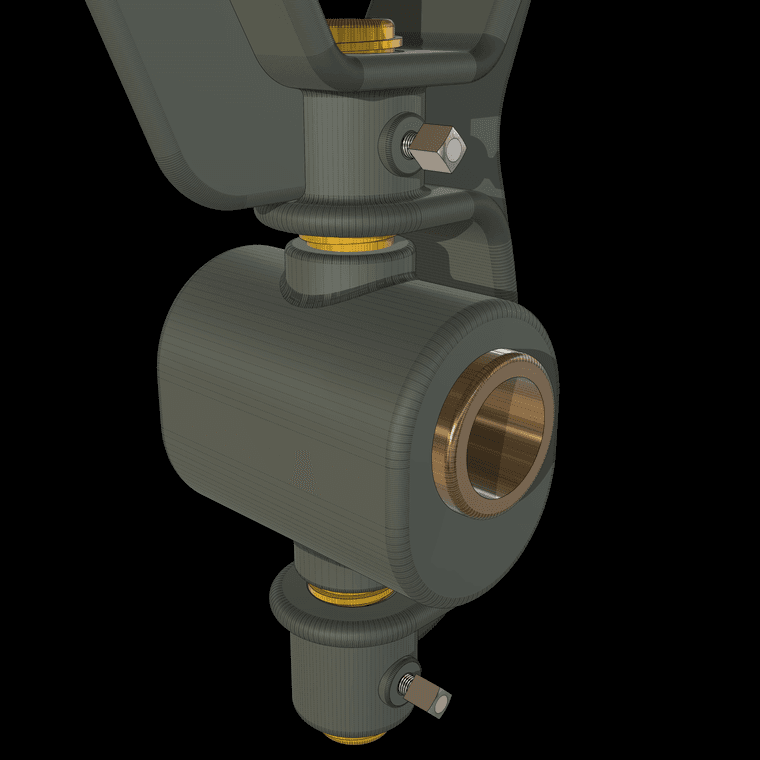

            It is possible to model fillets with changing radii in SketchUp. I do it fairly often using tools like TIG's Extrusion Tools or Fredo's Curviloft but Rich's suggestion and example is probably more straightforward.

            shaft hanger.png

            Etaoin Shrdlu

            %

            (THERE'S NO PLACE LIKE)

            G28 X0.0 Y0.0 Z0.0

            M30

            %

            1 Reply Last reply Reply Quote 0
            • Rich O BrienR Offline
              Rich O Brien Moderator
              last edited by

              @Dave-R

              In the example file it's not as a clean and pre-planned as your good example.

              I think that it is doable but not on the file shared. Where the tube is intersecting the flat top face is a bit of a mess. The tube geometry has a few probably unintentional edges.

              You can do this but you need to pre-plan the profiles to get the nice results Dave does in his sleep.

              Download the free D'oh Book for SketchUp πŸ“–

              1 Reply Last reply Reply Quote 1
              • L Offline
                Leggy
                last edited by

                thanks for your time guys, instead of a radius I went with a chamfer, pulled the tube through then scaled the end up. This would be fine, all be it a lot neater , but the profile would work
                bosch dust collector 7.dwg

                1 Reply Last reply Reply Quote 0
                • L Offline
                  Leggy
                  last edited by

                  I tweaked it a bit more, its not 100% , but I think it could work
                  bosch dust collector 8.skp

                  1 Reply Last reply Reply Quote 0
                  • Dave RD Offline
                    Dave R
                    last edited by

                    Well, it makes a solid component so it should be printable. How tall is the final thing supposed to be?

                    Etaoin Shrdlu

                    %

                    (THERE'S NO PLACE LIKE)

                    G28 X0.0 Y0.0 Z0.0

                    M30

                    %

                    1 Reply Last reply Reply Quote 0
                    • L Offline
                      Leggy
                      last edited by

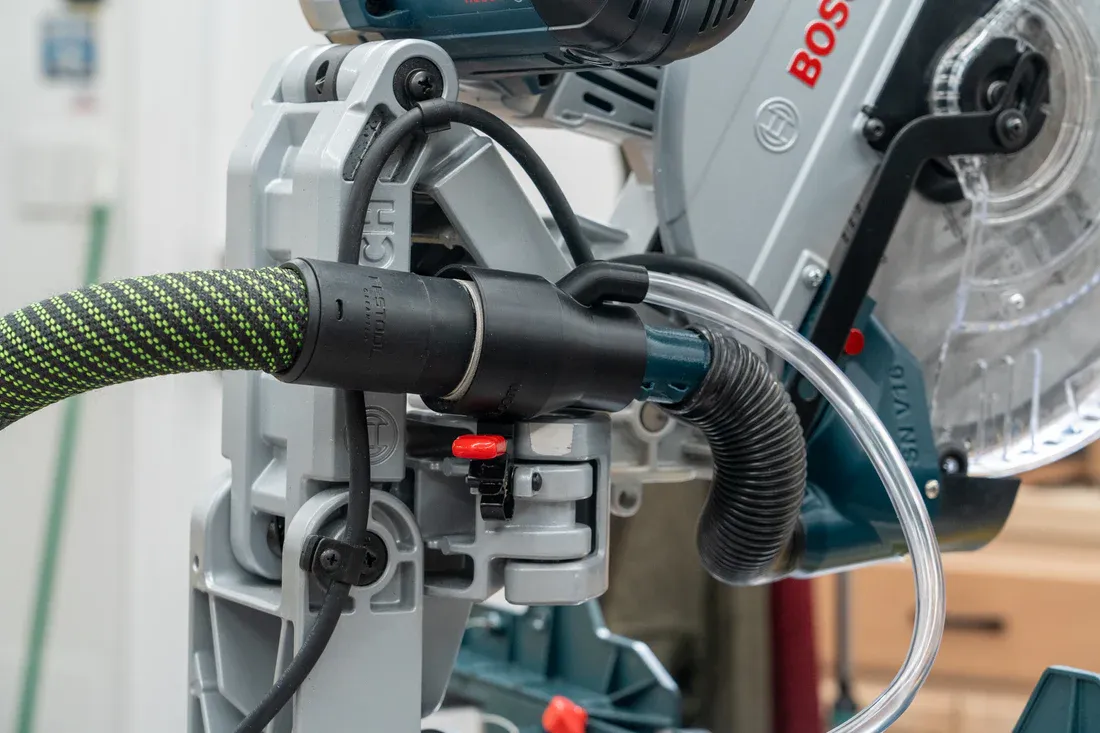

                      its for a Bosch mitre saw for dust extraction , about 80mm

                      1 Reply Last reply Reply Quote 0
                      • L Offline
                        Leggy
                        last edited by

                        its the dark blue part wrapped around the blade with the flexible tube coming off it

                        1 Reply Last reply Reply Quote 0
