    • medeekM Offline
      medeek
      last edited by

      Version 1.0.4 - 05.26.2025

      • Enabled joist hangers for openings.


      Tutorial 24 - Joist Hangers and Openings (7:58 min.)

      Nathaniel P. Wilkerson PE
      Medeek Engineering Inc
      design.medeek.com

      1 Reply Last reply Reply Quote 1
      • medeekM Offline
        medeek
        last edited by

        Version 1.0.5 - 05.30.2025

        • Added the ability to stretch opening headers with the "Stretch Floor Header" tool.

        Tutorial 25 - Stretching Opening Headers (7:50 min.)

        Nathaniel P. Wilkerson PE
        Medeek Engineering Inc
        design.medeek.com

        1 Reply Last reply Reply Quote 1
        • gullfoG Offline
          gullfo
          last edited by

          i think this is a good solution - otherwise you'd have to do all the other computations for where existing parallel joists are located. whereas here, you let the user crate the extensions on the header as needed or desired. cheers!

          Glenn

          http://www.runnel.com

          1 Reply Last reply Reply Quote 0
          • medeekM Offline
            medeek
            last edited by

            Version 1.0.6 - 05.31.2025

            • Added an edit function to the "Stretch Floor Header" tool.
            • Added a "Timber" header type for floor openings.
            • Fixed minor bugs in the floor opening module.


            Nathaniel P. Wilkerson PE
            Medeek Engineering Inc
            design.medeek.com

            1 Reply Last reply Reply Quote 0
            • medeekM Offline
              medeek
              last edited by

              Tutorial 26 - Editing Opening Headers (5:00 min.)

              Nathaniel P. Wilkerson PE
              Medeek Engineering Inc
              design.medeek.com

              1 Reply Last reply Reply Quote 1
              • medeekM Offline
                medeek
                last edited by

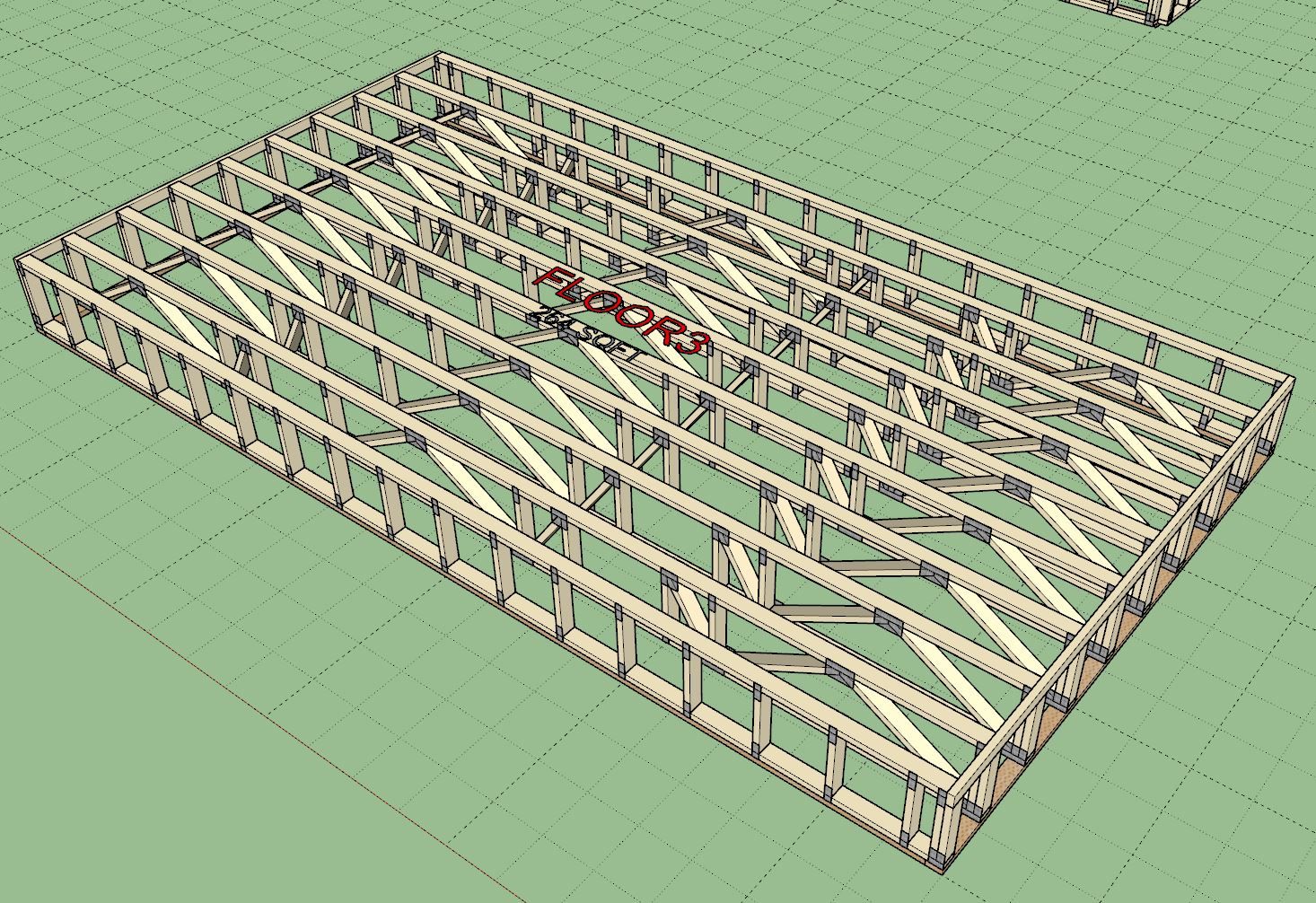

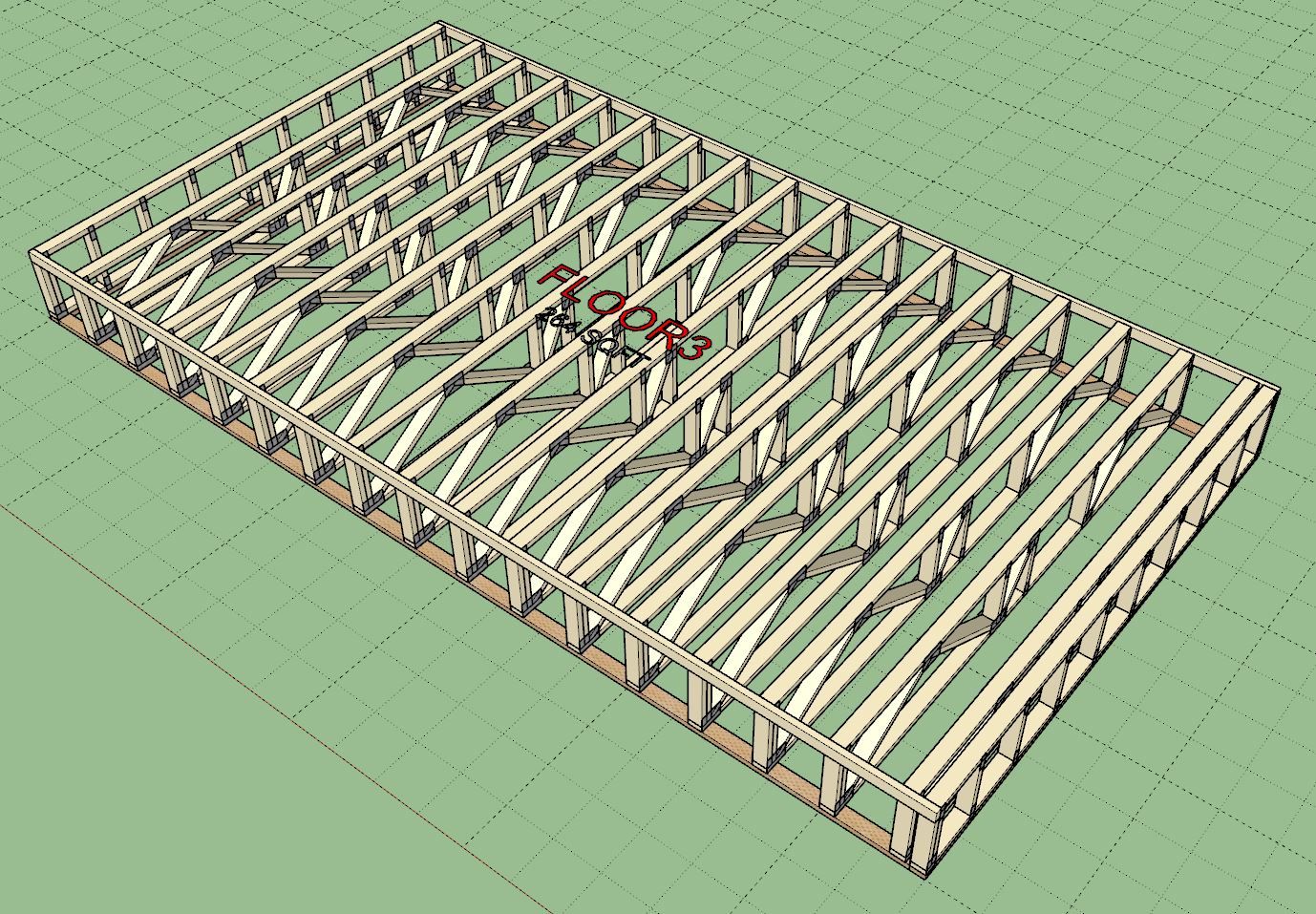

                After a full day of tinkering and refactoring a bunch of the original floor truss code I think I now have the multi-chase algorithm working:


                Note how the chases all line up even though there are five or six different truss profiles within this assembly. I still need to create the web generator between the central sections of the truss profile, there is quite a bit going on here. I am still a few days out from completing the programming and then another two or three days of testing and further debugging.

                Nathaniel P. Wilkerson PE
                Medeek Engineering Inc
                design.medeek.com

                1 Reply Last reply Reply Quote 1
                • medeekM Offline
                  medeek
                  last edited by

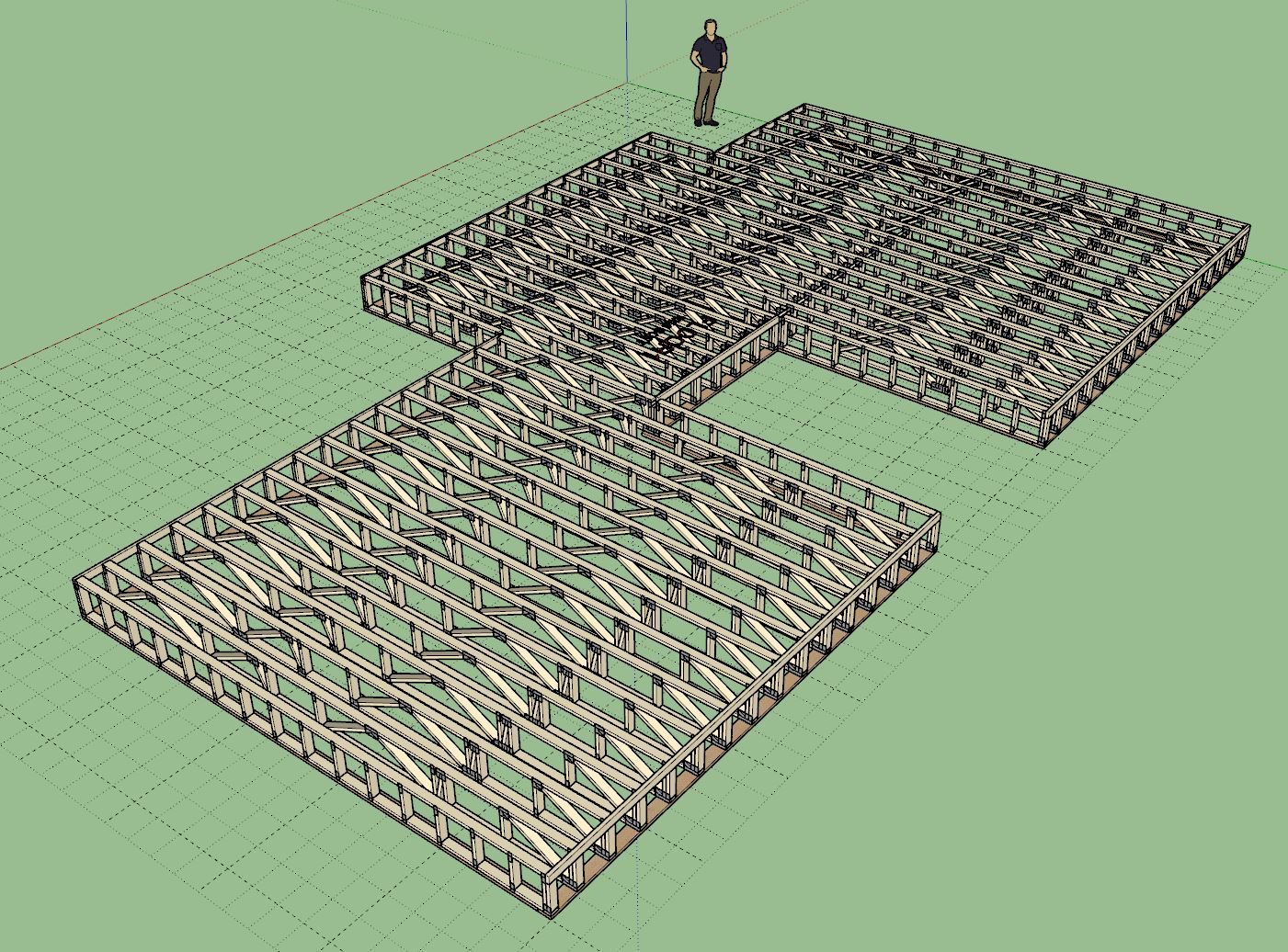

                  Looks like I’m about 95% there with floor trusses:

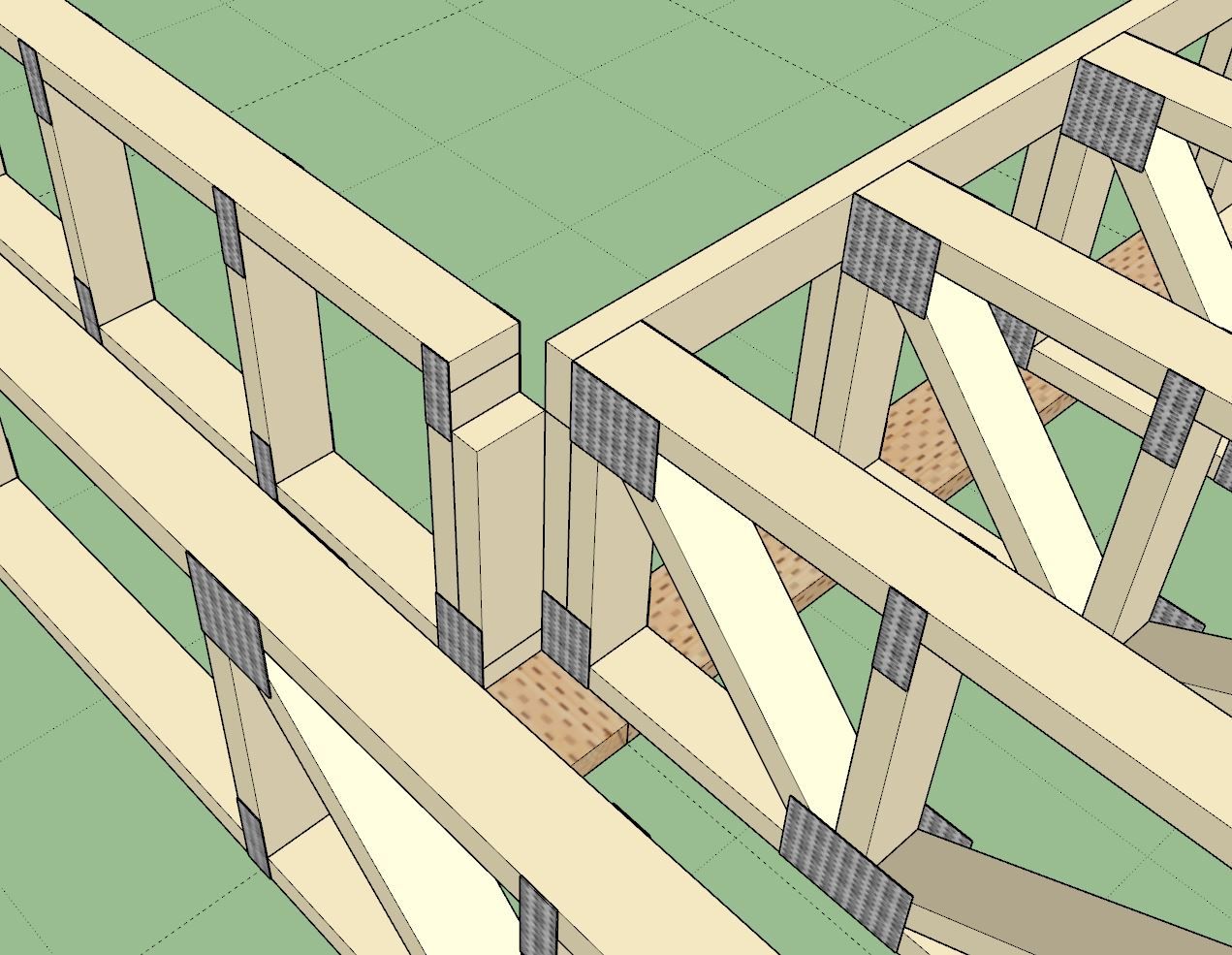

                  The only issue appears to be what happens when ribbon boards are enabled and you have an inside corner as shown. I probably need to add in some additional logic to eliminate the slot for the ribbon board in these cases.


                  Nathaniel P. Wilkerson PE
                  Medeek Engineering Inc
                  design.medeek.com

                  1 Reply Last reply Reply Quote 1
                  • gullfoG Offline
                    gullfo
                    last edited by

                    looking good. also - there is some "clumping" of members on the left-hand side of the right-hand chase. likely due to having a second change and the sizing of the middle truss members (maybe instead a long one and clumped one, make two even one as i think this is how they would be manufactured)

                    Glenn

                    http://www.runnel.com

                    1 Reply Last reply Reply Quote 0
                    • medeekM Offline
                      medeek
                      last edited by

                      Version 1.0.7 - 06.06.2025

                      • Enabled MPC Wood Trusses with ribbon boards, multiple chases and gable trusses.
                      • Updated the Move Floor Edge tool so that it also toggles the metal plate connector layer.
                      • Update the SUBTRACT_JOIST feature so that it can adequately handle MPC wood trusses.

                      Tutorial 27 - MPC Wood Trusses (13:25 min.)

                      Nathaniel P. Wilkerson PE
                      Medeek Engineering Inc
                      design.medeek.com

                      1 Reply Last reply Reply Quote 0
                      • medeekM Offline
                        medeek
                        last edited by

                        Version 1.0.8 - 06.08.2025

                        • Updated the SUBTRACT and SUBTRACT_JOIST features so that they can better handle MPC wood trusses, steel trusses and open web "Redbuilt" trusses.
                        • Updated the Floor Opening module so that it can handle MPC wood trusses, steel trusses and open web "Redbuilt" trusses.
                        • Added a "None" option for the header type in the draw and edit menus for floor openings.

                        Nathaniel P. Wilkerson PE
                        Medeek Engineering Inc
                        design.medeek.com

                        1 Reply Last reply Reply Quote 0
                        • medeekM Offline
                          medeek
                          last edited by medeek

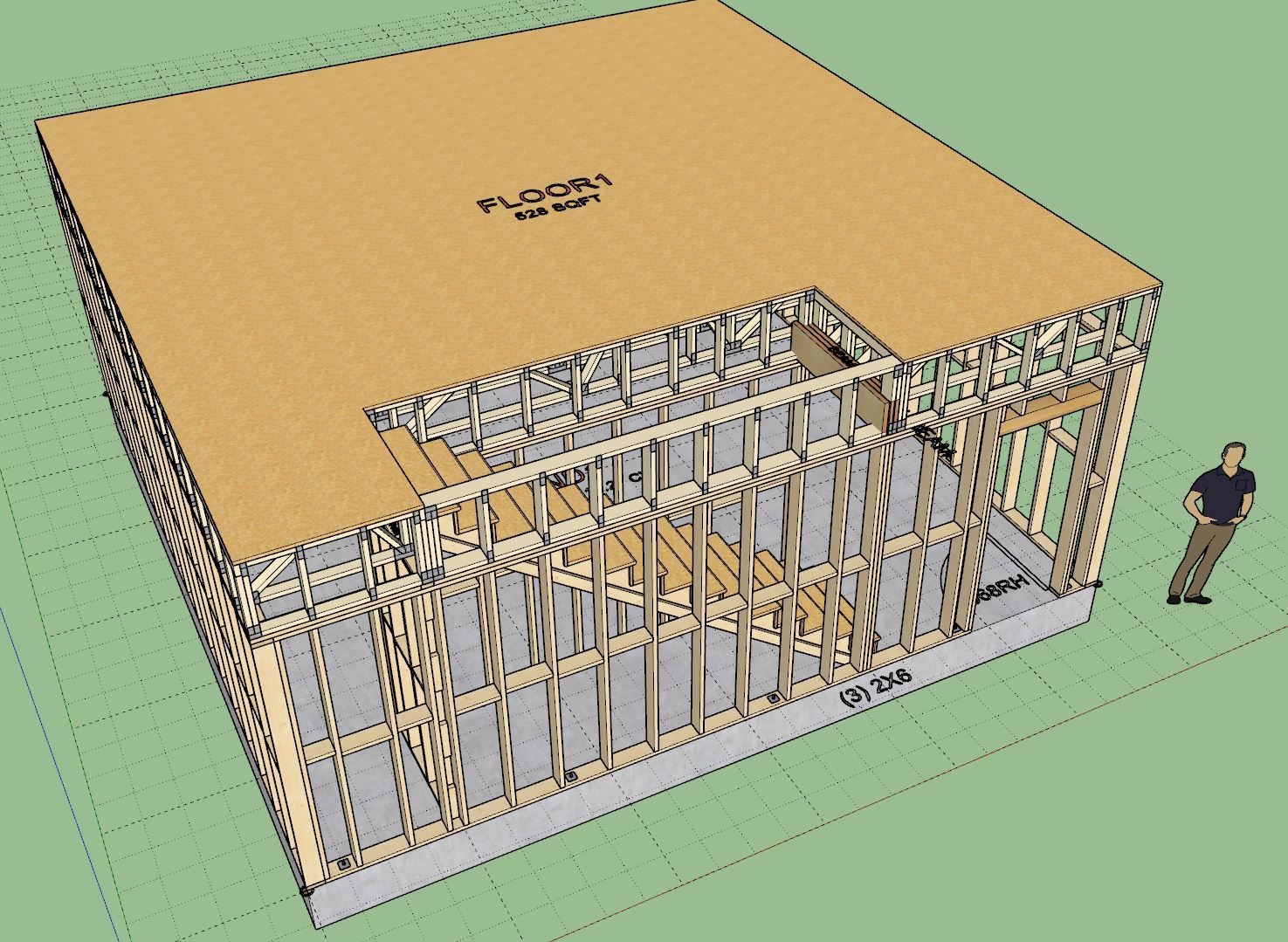

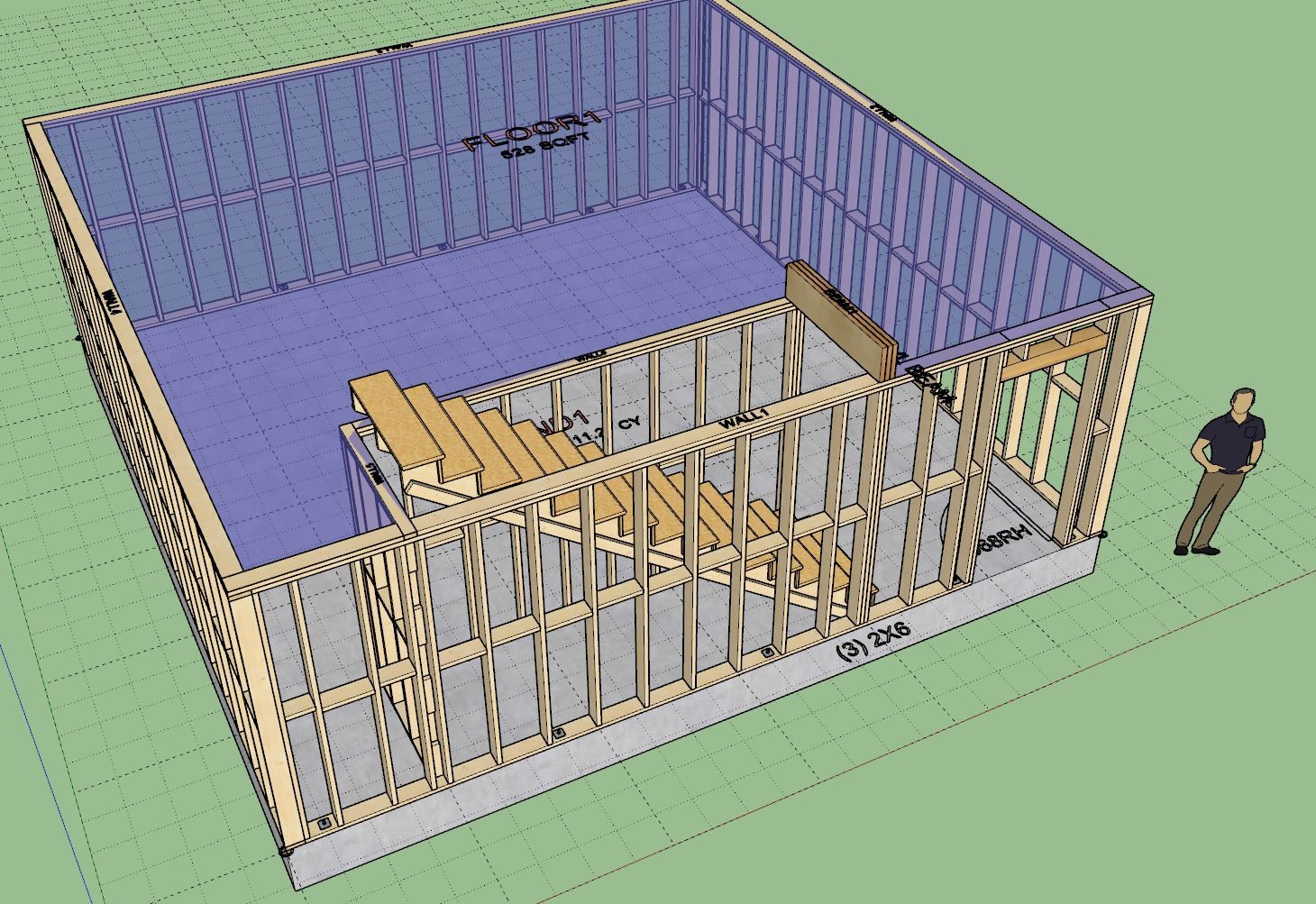

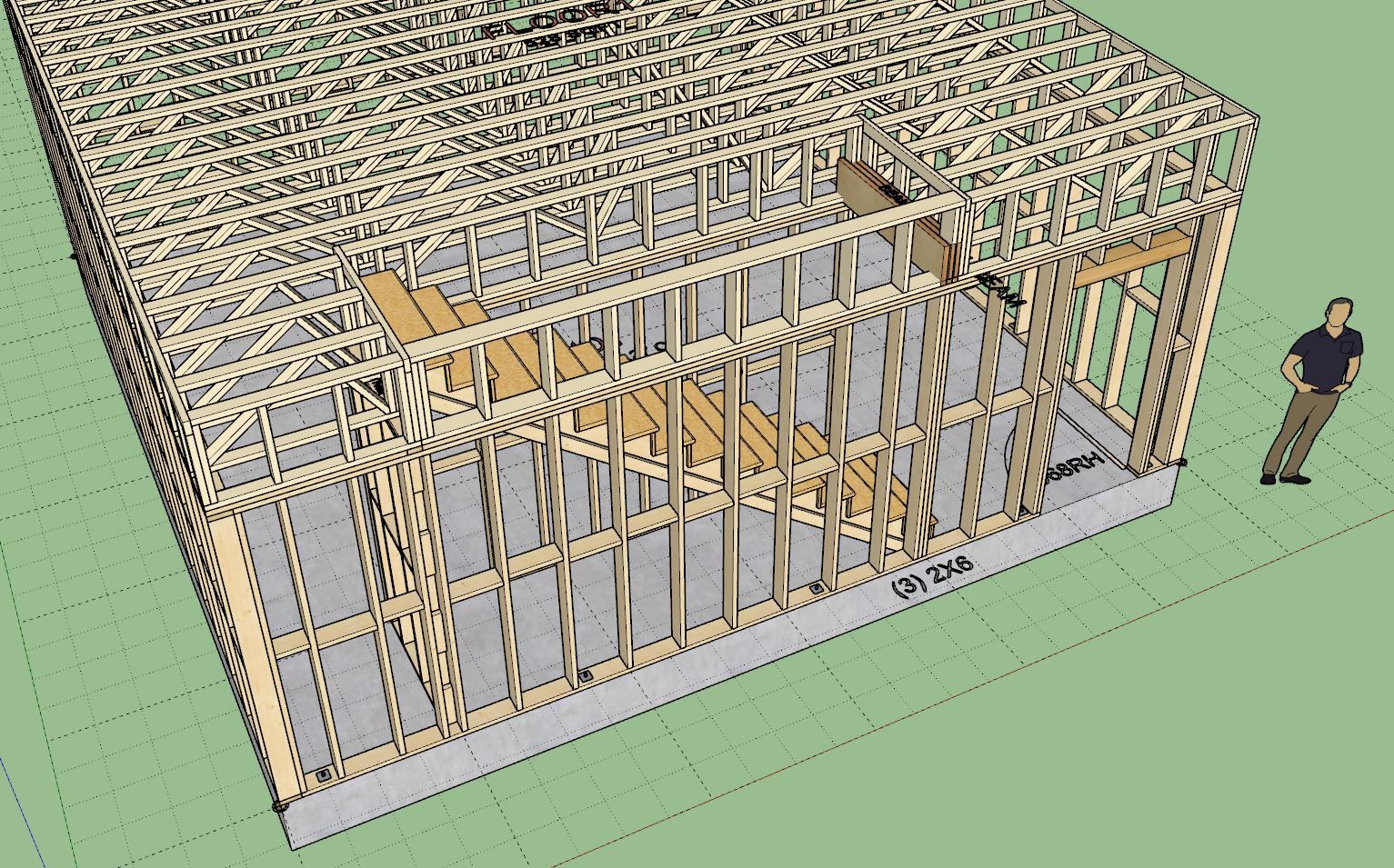

                          In many cases when you introduce a stairwell opening into a floor like this it will be along the perimeter of the floor assembly as shown. In these cases it is simpler to create your floor perimeter with the opening in mind:

                          Note, in order to create the additional gable truss (2x6 ply) I first changed my ply width to 5.5" then copied the gable truss at the interior of the stair well, then pasted it in place in the root of the model and then edited the floor assembly back to the typical 3.5" ply width. Alternatively one could simply frame this small pony wall with the Wall plugin (ie. conventional framing) just as easily.

                          I'm not exactly sure how the trusses would work where the LVL beam/header is positioned at the start of the stairwell, obviously we would need some kind of header at that location.

                          Here is a link to the model for those who are interested in examining this floor truss example in more detail:

                          Link Preview Image
                          3D Warehouse

                          3D Warehouse is a website of searchable, pre-made 3D models that works seamlessly with SketchUp.

                          favicon

                          (3dwarehouse.sketchup.com)




                          Nathaniel P. Wilkerson PE
                          Medeek Engineering Inc
                          design.medeek.com

                          1 Reply Last reply Reply Quote 1
                          • medeekM Offline
                            medeek
                            last edited by

                            Version 1.0.9 - 06.17.2025

                            • Added the floor truss toolbar with the following two items: Draw Beam Pocket, Delete Beam Pocket.
                            • Enabled beam pockets for MPC wood trusses.
                            • Fixed a bug with short span steel trusses.


                            Tutorial 28 - Beam Pockets with Floor Trusses (8:00 min.)

                            Nathaniel P. Wilkerson PE
                            Medeek Engineering Inc
                            design.medeek.com

                            1 Reply Last reply Reply Quote 1
