How to adjust line thickness of particular objects?

Scheduled Pinned Locked Moved Newbie Forum
sketchup
8 Posts 4 Posters 3.1k Views 4 Watching
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • H Offline
    Hanstefono
    last edited by 26 Jun 2015, 14:44

    Hello!

    I hope I'm not that bad at googling but unfortunately I did not find any satisfying answer/solution.

    Anyways, I would like to create a 2D floor plan and for this I need to adjust the thickness of some particular lines. I know that there is the possibility to make them all thicker (view -> Edge Stlye), however, I just need to make a few lines thicker.

    Is there any possibility how to do this?

    Thanks in advance!

    1 Reply Last reply Reply Quote 0
    • D Offline
      Dave R
      last edited by 26 Jun 2015, 14:55

      No. There are basically Profiles and other non-profile edges. Profiles can be made thicker in the Edit window for the edge style but there is no option in SketchUp to make only some lines thicker. Use LayOut for that.

      Screenshot - 6_26_2015 , 10_02_41 AM.png

      Etaoin Shrdlu

      %

      (THERE'S NO PLACE LIKE)

      G28 X0.0 Y0.0 Z0.0

      M30

      %

      1 Reply Last reply Reply Quote 0
      • N Offline
        ntxdave
        last edited by 26 Jun 2015, 14:56

        How about something like TIG's 2D Tools?

        1 Reply Last reply Reply Quote 0
        • D Offline
          Dave R
          last edited by 26 Jun 2015, 15:02

          TIG's 2D tools can simulate different line weights but they are real edges. As long as you know that going in, that's alright.

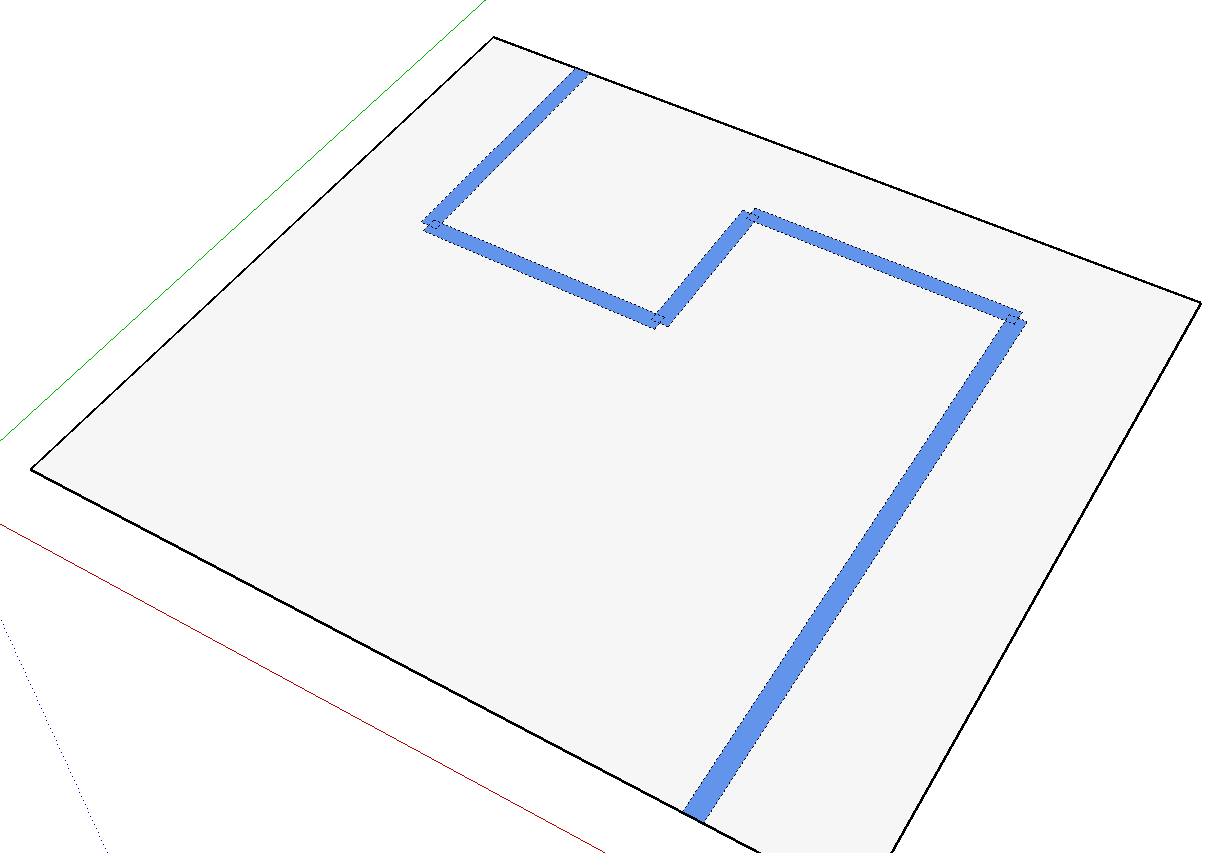

          TIG's Line Style tool creates shapes as groups centered on the selected edges. The edges of the shapes are hidden and the faces painted to give the desired color.
          Screenshot - 6_26_2015 , 10_09_39 AM.png

          Etaoin Shrdlu

          %

          (THERE'S NO PLACE LIKE)

          G28 X0.0 Y0.0 Z0.0

          M30

          %

          1 Reply Last reply Reply Quote 0
          • N Offline
            ntxdave
            last edited by 26 Jun 2015, 15:08

            @dave r said:

            TIG's 2D tools can simulate different line weights but they are real edges. As long as you know that going in, that's alright.

            TIG's Line Style tool creates shapes as groups centered on the selected edges. The edges of the shapes are hidden and the faces painted to give the desired color.

            Thanks for clarifying....I guess it partially depends on how you intend to use the lines.

            1 Reply Last reply Reply Quote 0
            • D Offline
              Dave R
              last edited by 26 Jun 2015, 15:09

              True that.

              Etaoin Shrdlu

              %

              (THERE'S NO PLACE LIKE)

              G28 X0.0 Y0.0 Z0.0

              M30

              %

              1 Reply Last reply Reply Quote 0
              • K Offline
                kaas
                last edited by 26 Jun 2015, 16:39

                it can be done if you use Layout though by stacking scenes (like layers) showing different elements that require different line thickness

                1 Reply Last reply Reply Quote 0
                • H Offline
                  Hanstefono
                  last edited by 26 Jun 2015, 17:30

                  Ok, people. I just figured it out. Instead of using SketchUp, I will go for LayOut (part of SketchUp) and there it is possible to change the thickness of the individual lines.

                  Anyway, thanks!

                  1 Reply Last reply Reply Quote 0
