Medeek Wall Plugin

medeek · 6 Feb 2025, 23:38

Version 3.8.8 - 02.06.2025

Added landing treads, tread covers, carpet and stair runners for a winders.
Added an SIP wall framing option for all wall types.
Added five additional SIP parameters into the wall Draw and Edit menus.

Tutorial 66 - SIP Walls (8:03 min.)

medeek · 6 Feb 2025, 23:39

@gullfo

The licenses will continue to work forever, but no free updates after the five years.

medeek · 7 Feb 2025, 07:16

Version 3.8.8b - 02.06.2025

Added the option for closed stringers.

medeek · 9 Feb 2025, 19:34

Version 3.8.9 - 02.09.2025

Added preview thumbnails for handrail fittings to the draw and edit menus of the stair tool.
Fixed a bug with adjacent winders/landings for landing treads and covers.
Fixed a minor bug with materials for handrail fittings.

medeek · 11 Feb 2025, 08:54

Version 3.9.0 - 02.11.2025

Enabled zero size intermediate posts (balusters) for glass railing.
Fixed a bug with floor level winders/landings for landing treads and covers.

medeek · 13 Feb 2025, 06:49

Version 3.9.0c - 02.12.2025

Fixed a bug when the top tread is flush.

medeek · 14 Feb 2025, 07:22

Version 3.9.0d - 02.14.2025

Fixed a floating point rounding bug for metric templates.
Fixed a bug for balusters when a run of stairs is a single step.

Still putting out a few little fires. Whenever you make big changes it always seems like you miss something or you add a new feature that adds a whole new level of complexity, and then the plugin gets itself into states that you did not foresee. That is what makes this job fun, you get surprised once in a while.

Please feel free to send me any additional bug reports or feature requests. I think we've just about wrapped up the stair module for a while.

medeek · 24 Feb 2025, 06:42

Version 3.9.1 - 02.23.2025

Added the following (48 - low poly) Simpson post caps to the post module: CC1210, CC718_718, CC718_8, CC718_6, CC718_4, CC514_8, CC514_6, CC514_4, CC462_550, CC462_462, CC462_362, CC314_6, CC314_4, CC128, CC126, CC106, CC98, CC96, CC94, CC88, CC86, CC84, CC78, CC77, CC76, CC74, CC68, CC66, CC64, CC48, CC46, CC44, CC6_718, CCO4, CCO6, CCO7, CCO8, CCO9, CCO10, CCO12, CCO46, CCO314, CCO462, CCO514, CCO718, ECC64, ECC66, ECC68.

This update per customer request.

I still need to add in the rest of the ECC series, so there is always more to do.

medeek

Version 3.9.2 - 03.15.2025

Enabled an edge material/texture for built-in gypsum wall materials.

medeek

Here are a some new renderings of an Inverted Tee landing using the newly upgraded stair module. A huge shout out to @patrick.c.obrien for these amazing images and for all of his efforts in helping me debug this module during the month long process of updates and additions:

medeek

Version 3.9.3 - 03.29.2025

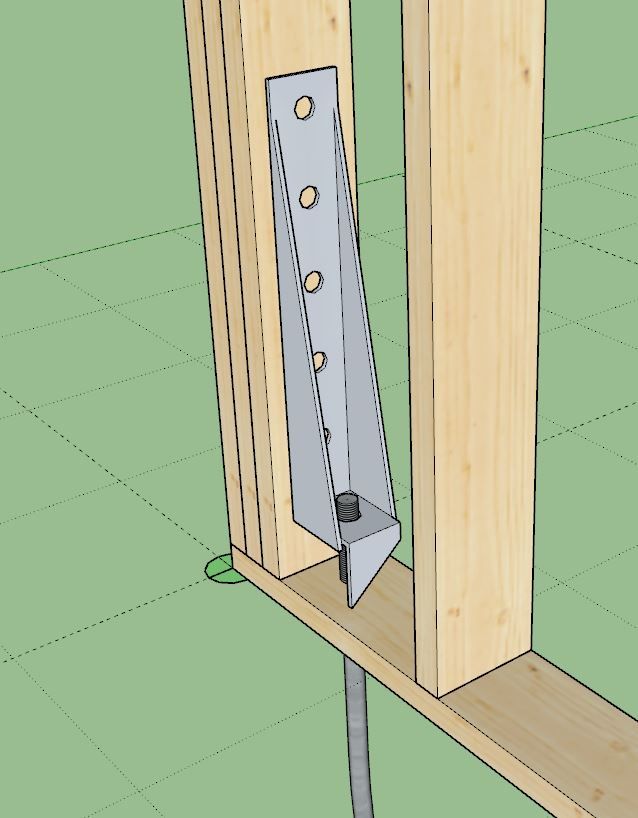

Added the following Simpson Strong-Tie holdowns to the wall, column and shearwall modules: DTT1Z, LTTP2, LTTI31.

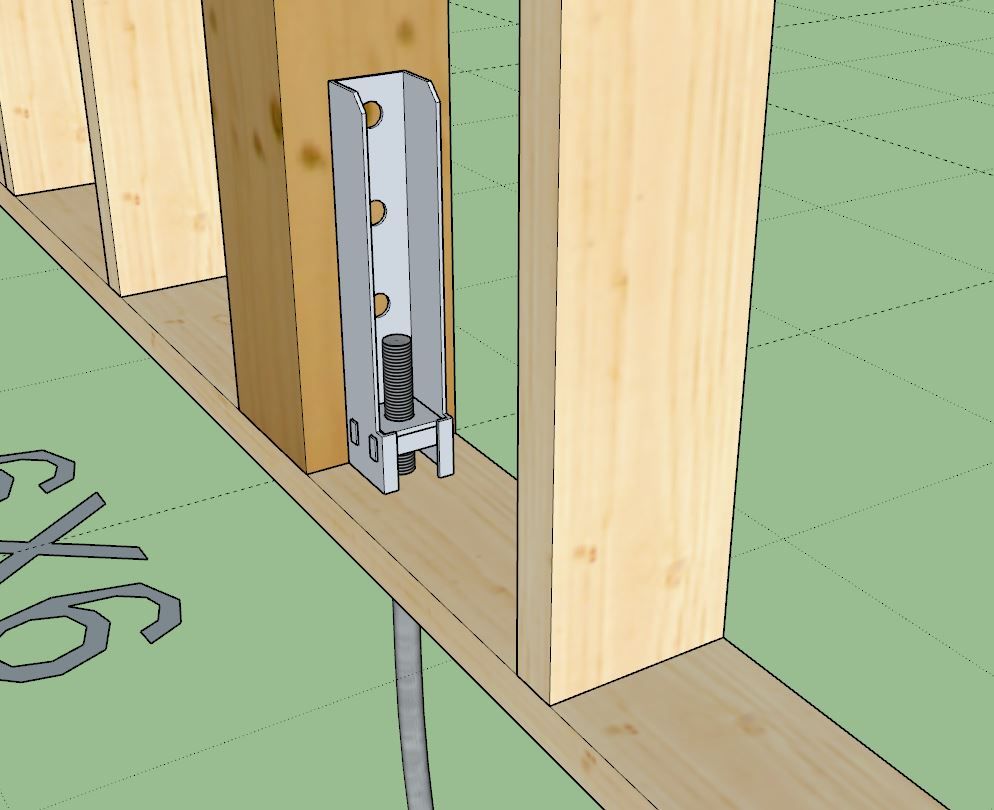

Added the following Simpson Strong-Tie holdowns to the wall, column and shearwall modules: HD3B, HD5B, HD7B, HD9B, HD12, HD19.
Updated the wall and column modules so that they include all previous holdowns that were added to the shearwall module.

This update per customer request.

I think I now have added every common holdown used for walls and columns that is found in the Simpson Catalog [Wood Construction Connectors 2024-2025] (pg. 51-65).
