How can I make a letter rounded?

pilou

My PC works hard to make SU running, and I can't even think to run a modeler on it

Are you joking?
My Pc is a seven year old! And all works very fine on it!
I have just progs who don't ask too many things to the video card!
Zbrush, Moi, Su, Blender
PS SU is also a modeler!

PS2 What happen when a render is made with these "horrible lines"?

simon le bon

Hey Hey Helisei,

You show too much or you explain not enough
You are waiting I find by myself I suppose. Not a lot of time again for that these next days..

You are right. S&S works well on the letter shape you have redraw.
but:

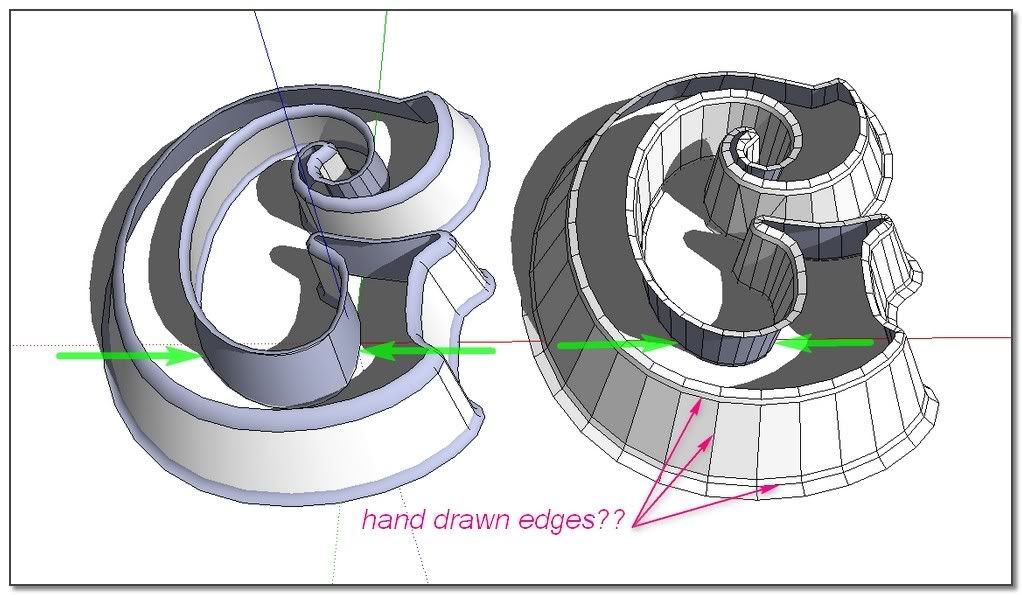

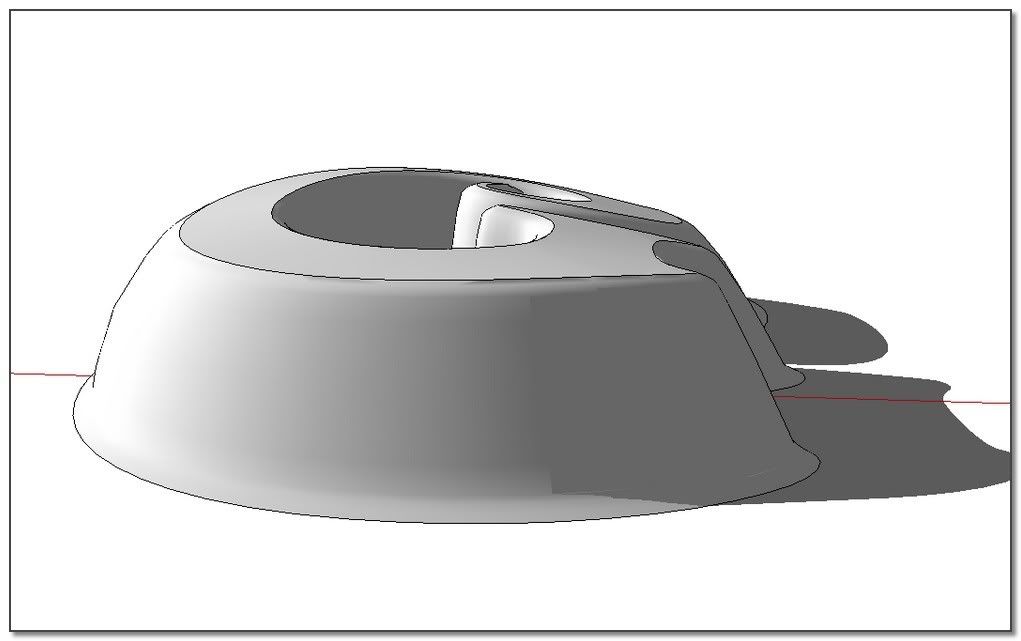

1_ How did you do to make the base of the letter correctly flared ??
2_ How did you do to redraw all the lines of the letter shape: by hand??

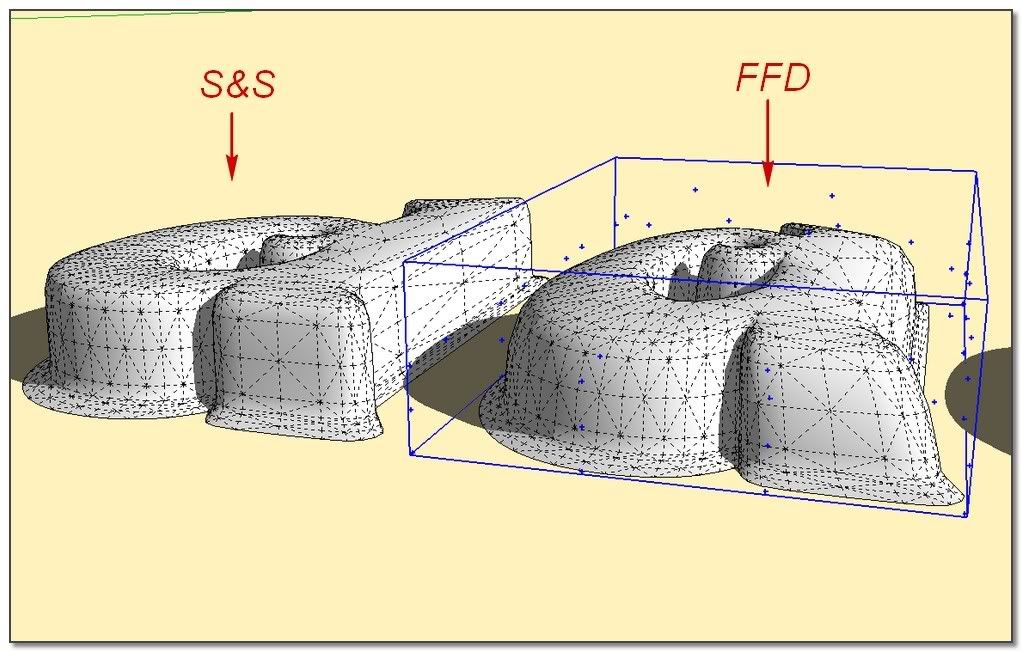

I can see I have still a lot to learn on S&S. This another technic for exemple find me with the tong out of my mouth:Contest Winner: Modelling a Panton Chair with Subdivide and Smooth

Thanks to participate,
simon . . . . . .and theSlideshow(each link is the same updated one)

PS: Your cars are crazy beautiful man

simon le bon

Hi ely862me

@unknownuser said:

Take the model as in image 3 or 4 and run Subdivide&Smooth on it..u ll get the desired result

I'm afraid I don't understand the way you think about!
I've tried this time, not the subdivide+smooth operations like before but the modeler operation as i can think you are talking about, and the result is the following, after what i can't go further.

/**

Dear Gaieus,
One more time you're right! I can't say I didn't know what you're talking, about cleaning unwanted geometry. But i thought in this case that it was not necessary to clean because there was no faces joining. As we can see, I was wrong
Adendum about this subject:Creating a Hidden Seam in Google SketchUp by Eric Lay(Boofredlay).

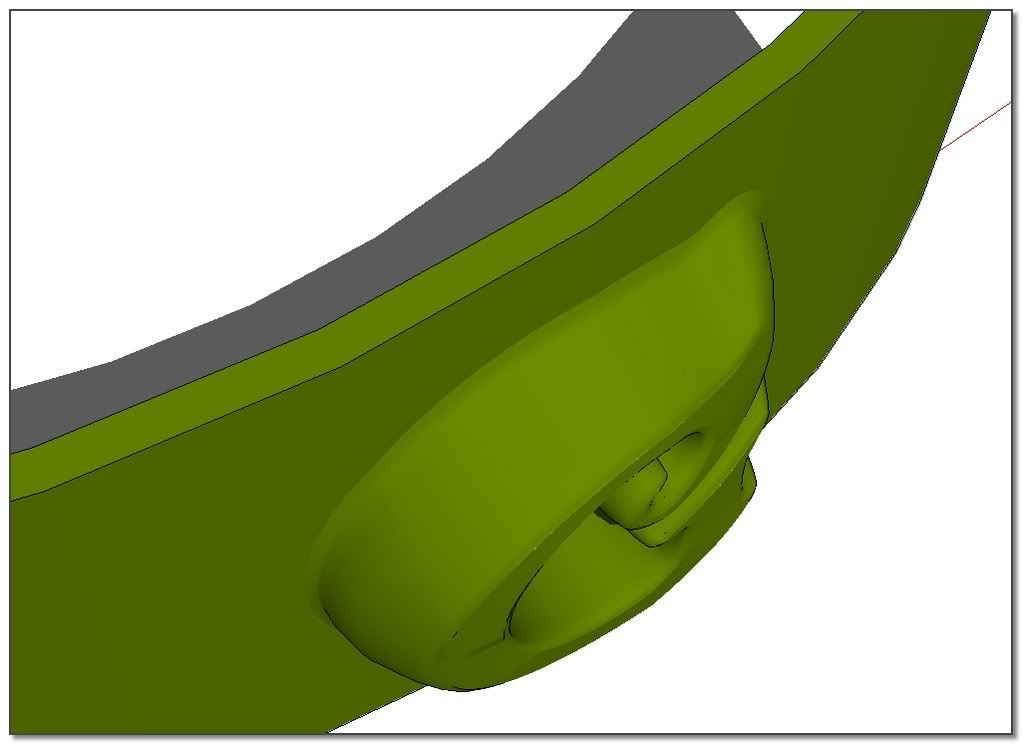

After cleaning:

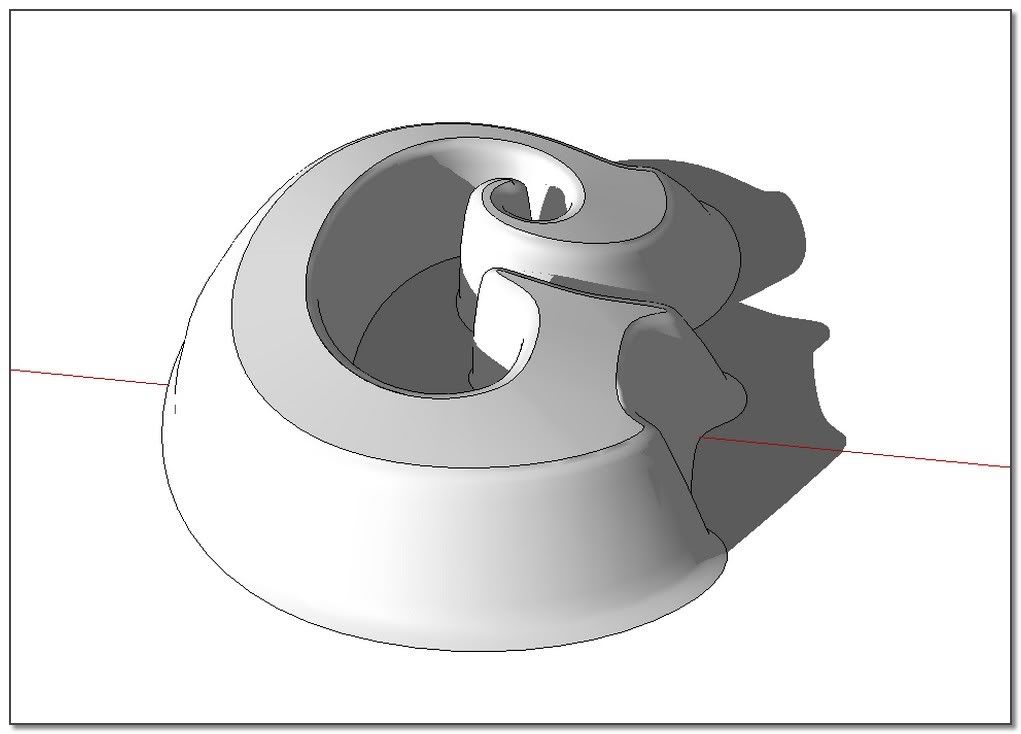

This time it looks ok

and i'm afraid this is my ultimate best

Updated slideshow

simon

simon le bon

@ely862me said:

:lol: actually is very simple..

i ll give u 3 hints: offset tool,skin tool and scale tool

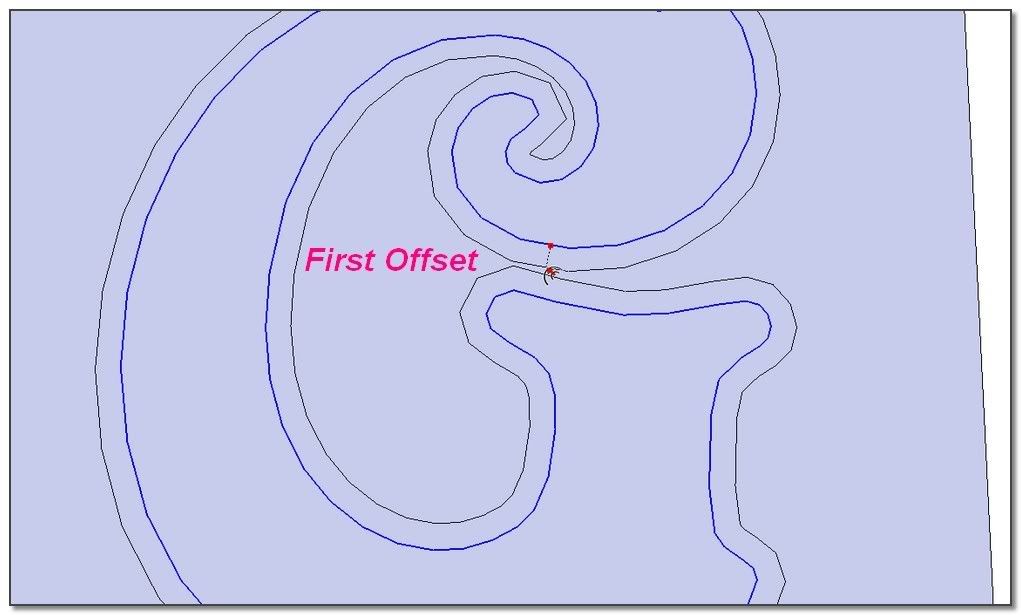

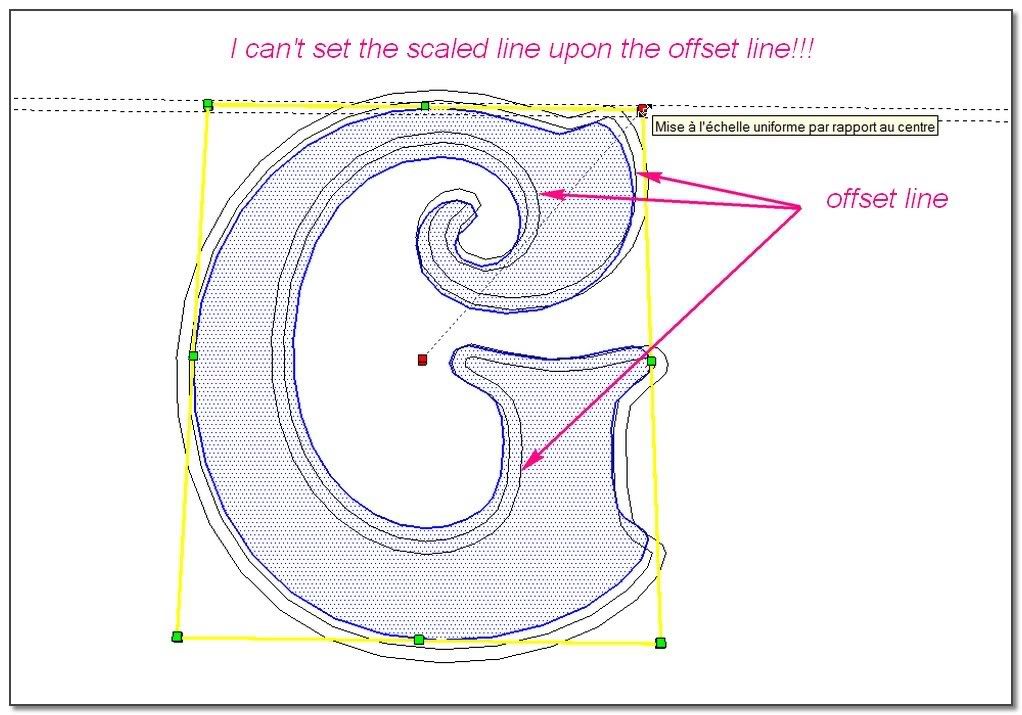

Very simple? No I wouldn't say that. In fact I haven't found how to make exactly the good flare I wanted (the same as yours). And I would have please (now I have searched ) more precisions from you on the way you've mastered it.

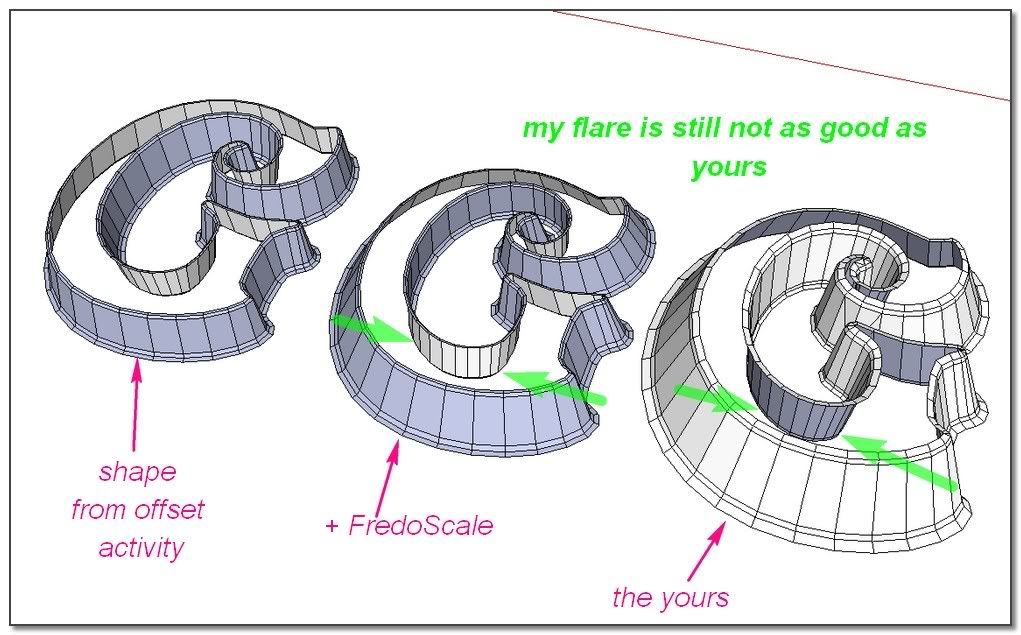

A very important thing I have learned here is that: an offset doesn't give the same outer edge than a scale??(really a surprise to me) this is the reason why I was not able to do the right flare using scale tool and FredoScale!!

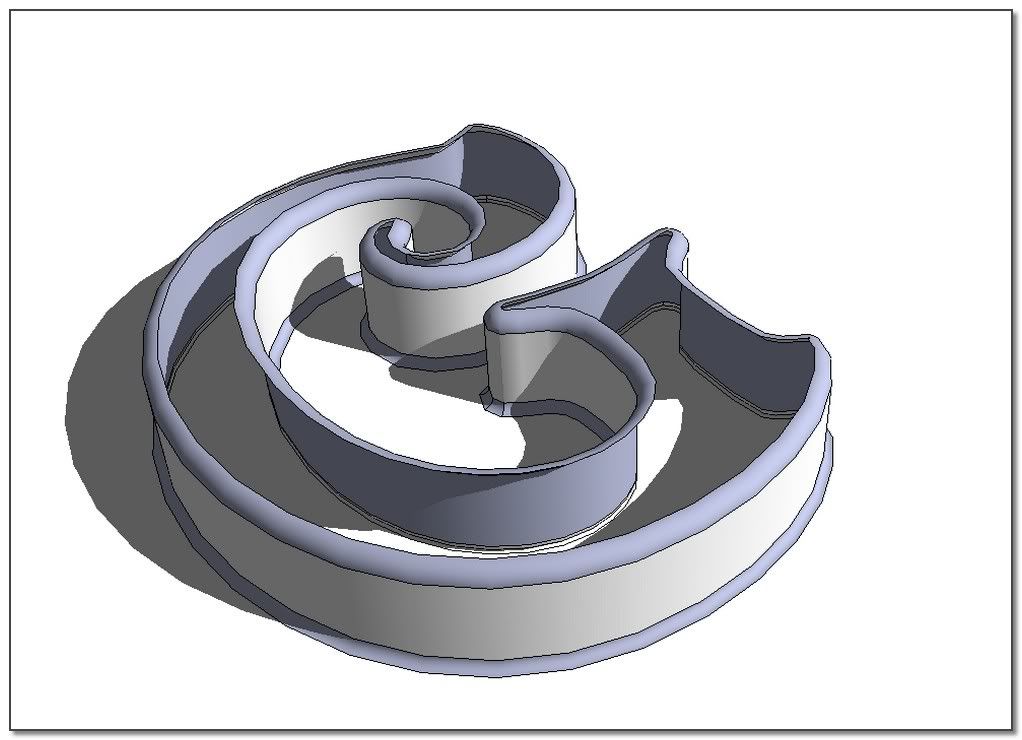

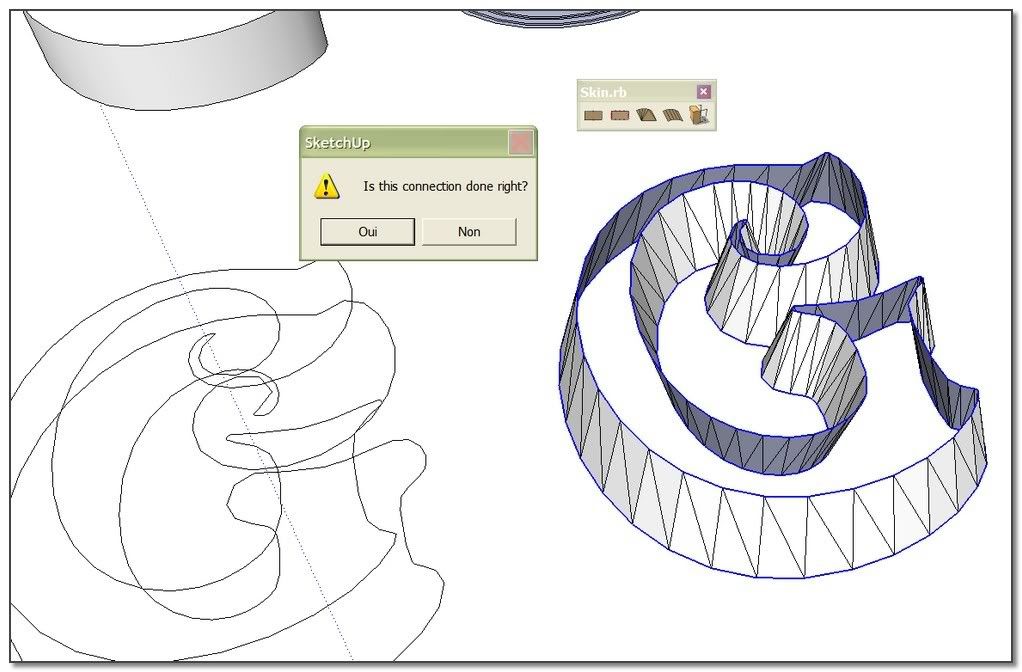

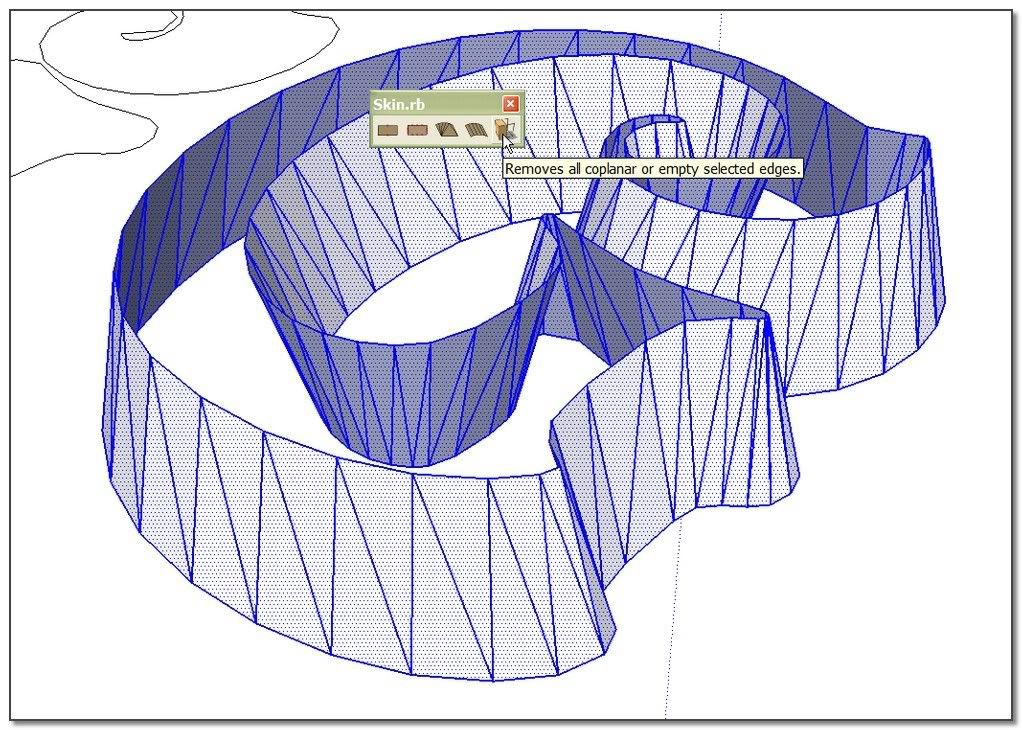

No need to redraw all the lines, there is a cleaning module in Skin.rb

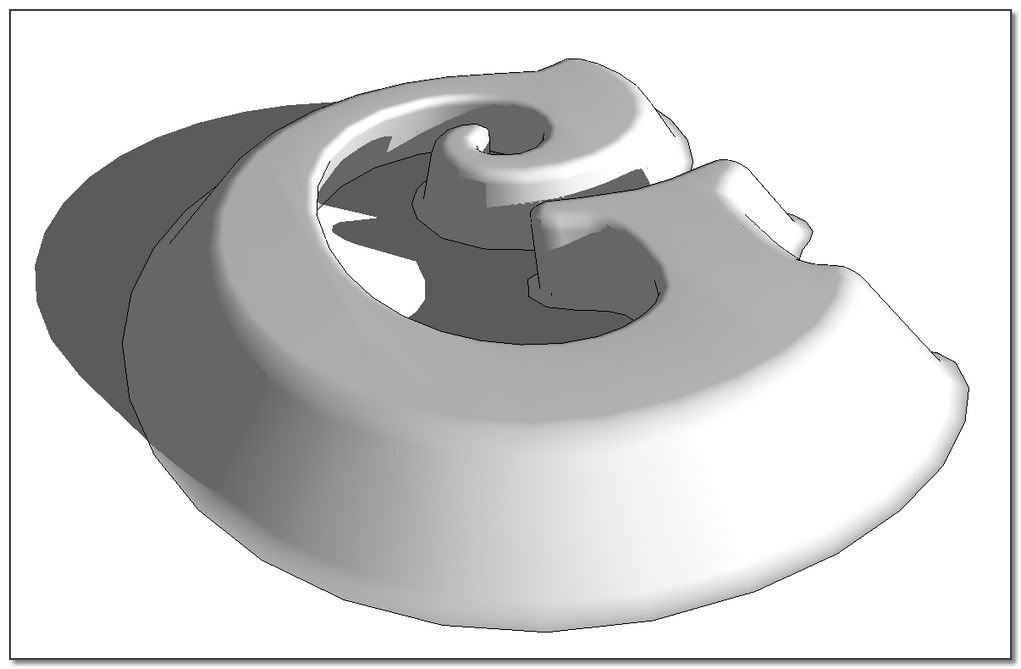

A check with S&S

"Very important"

(I have let down momentarily what I had begun whith Gaieus and I will retake it soon.)

simon

simon le bon

Ok Elisei, you seem to be occupied. I can't wait you to follow my idea. (It would be great and friendly if you would give us a little step by step further explanation)

I start from your shape.

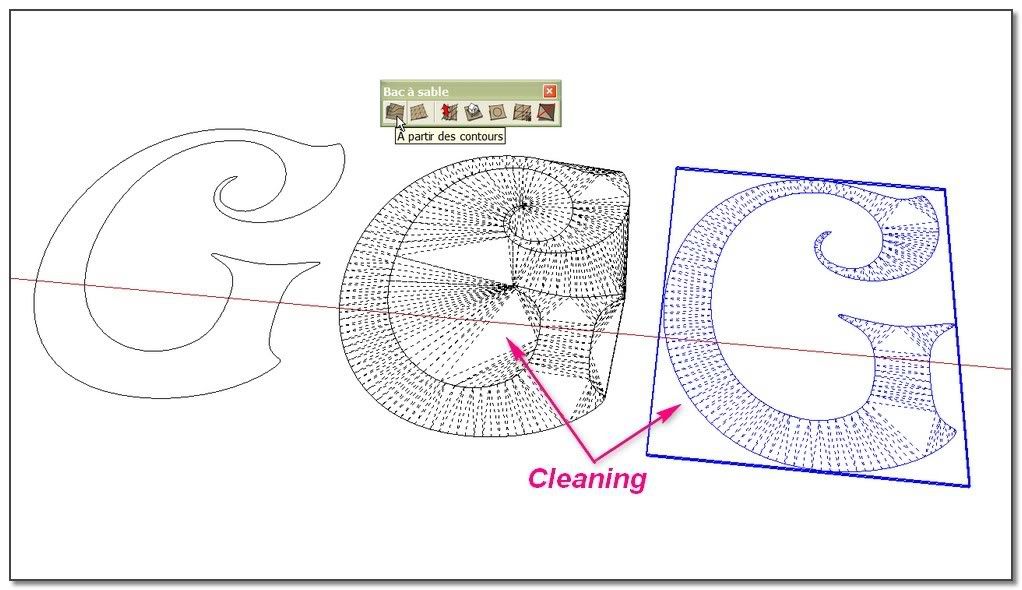

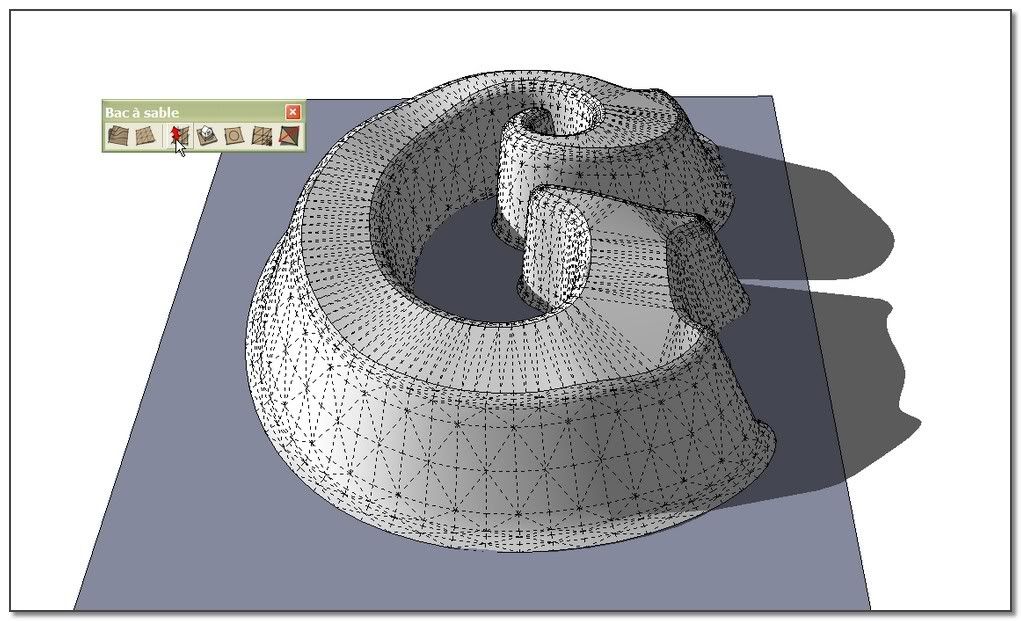

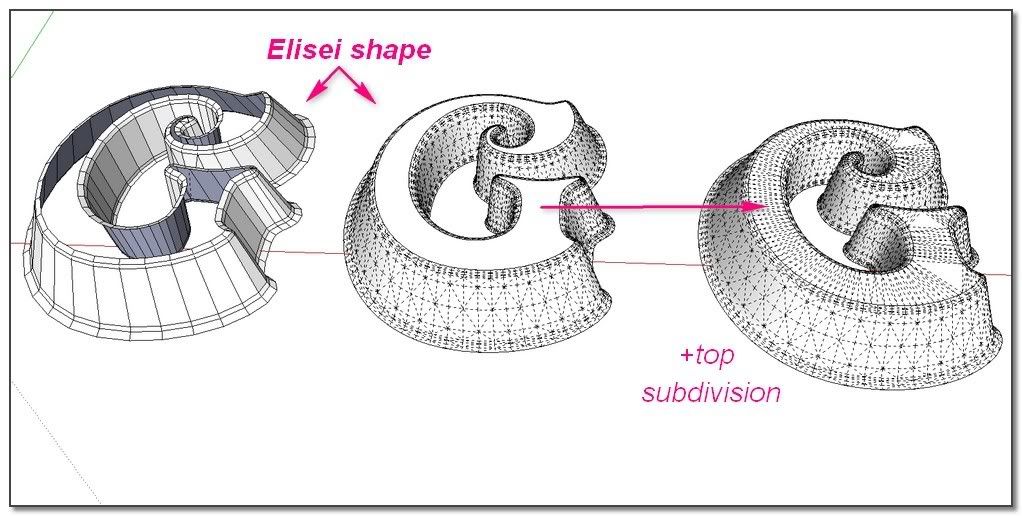

I need to subdivide the top of the letter. I'm using SandBox tool: from contour.

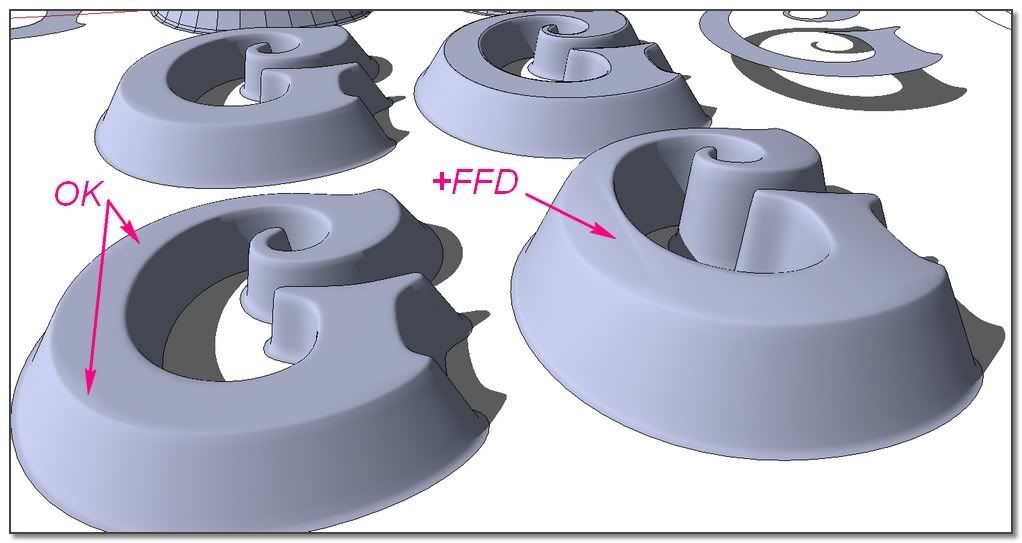

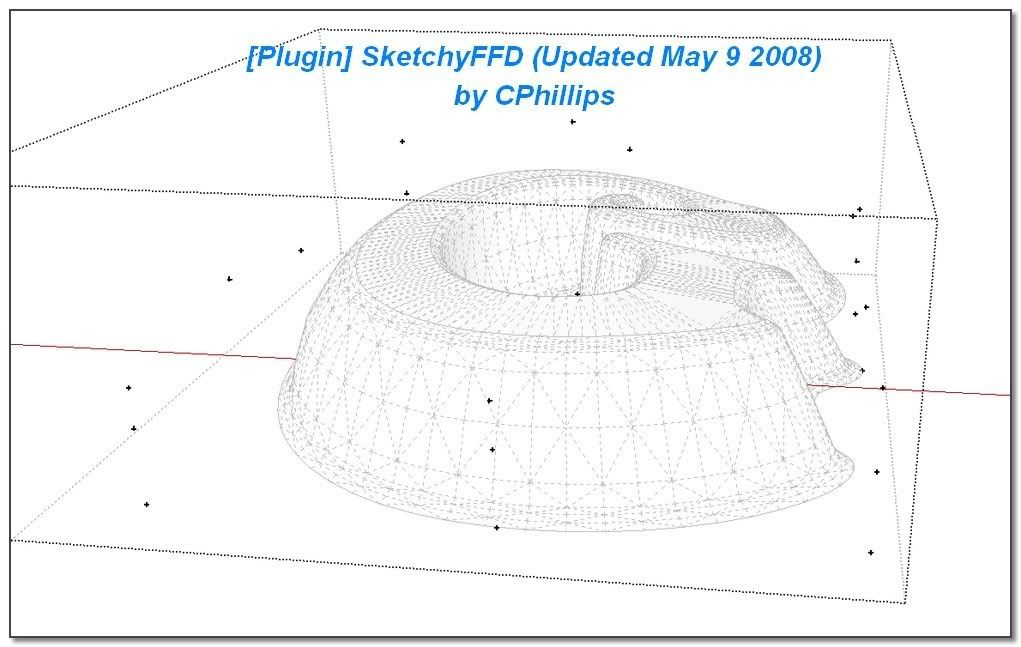

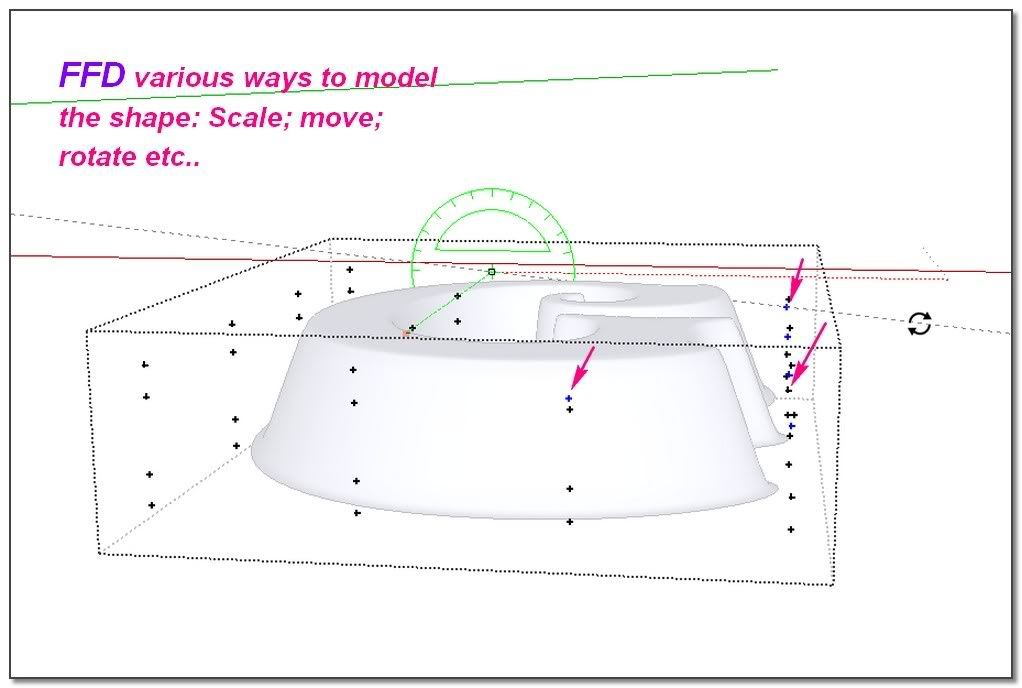

Now using SkechyFFD to put some irregularity to the letter (I glue the bottom points)

(Note this other try with modeler from SandBox Tools.)

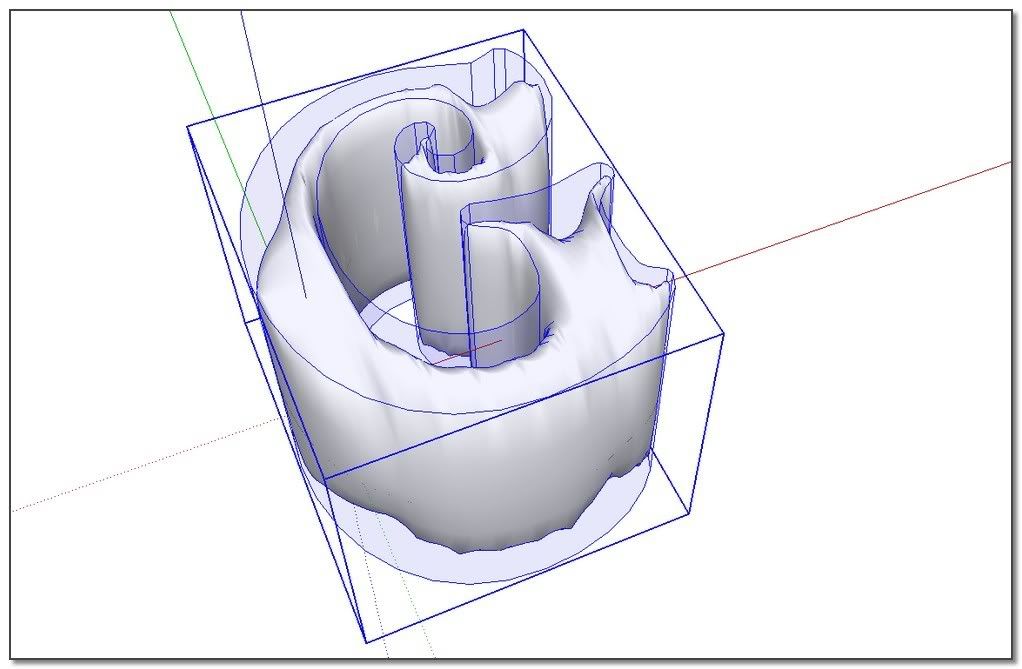

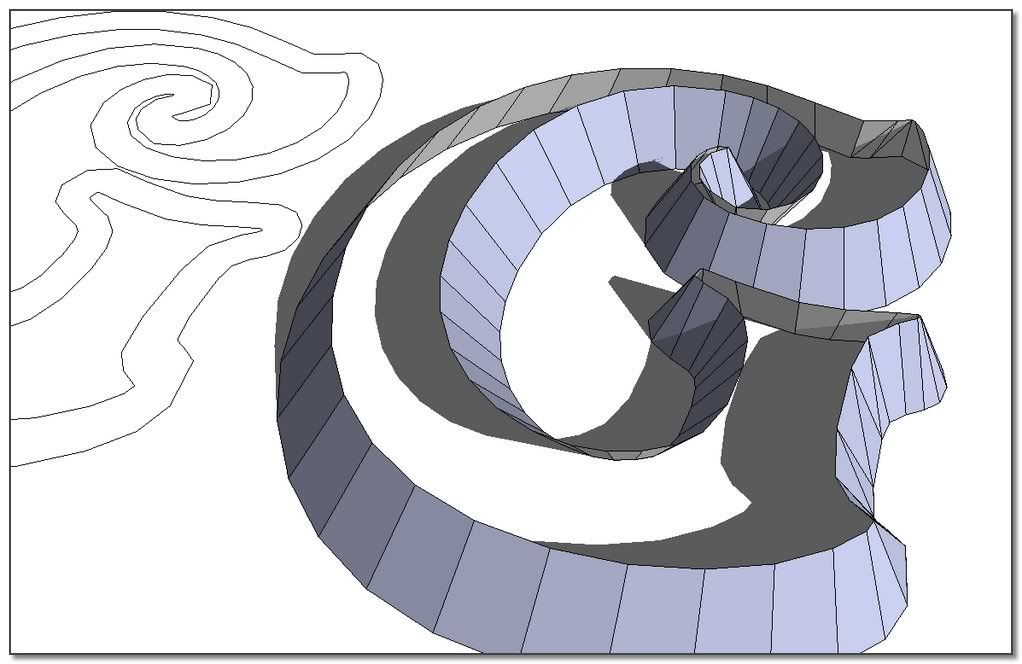

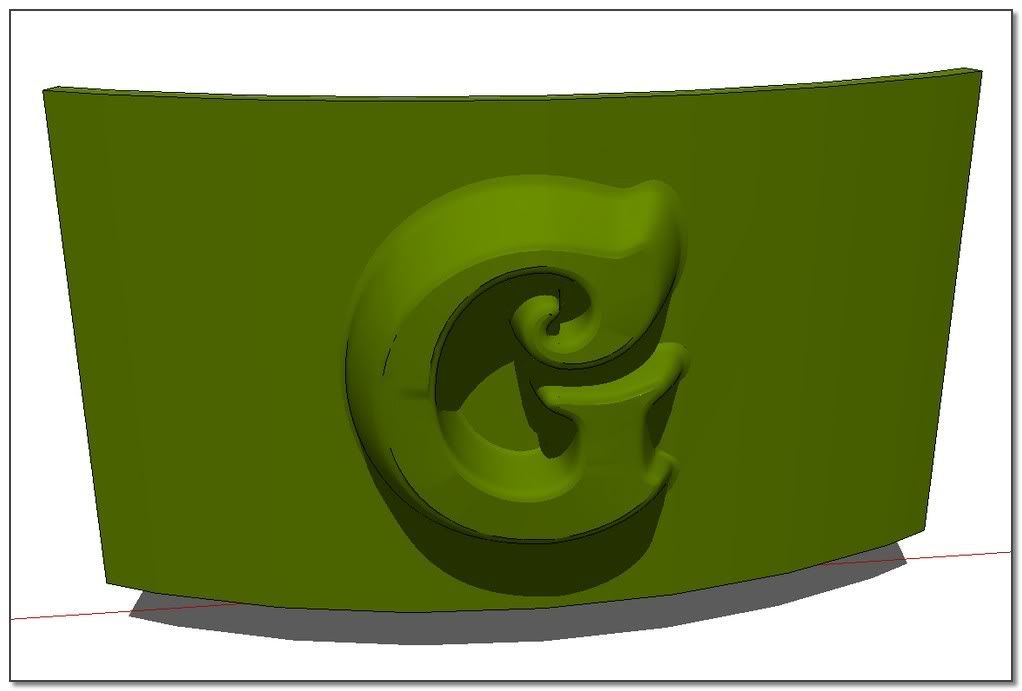

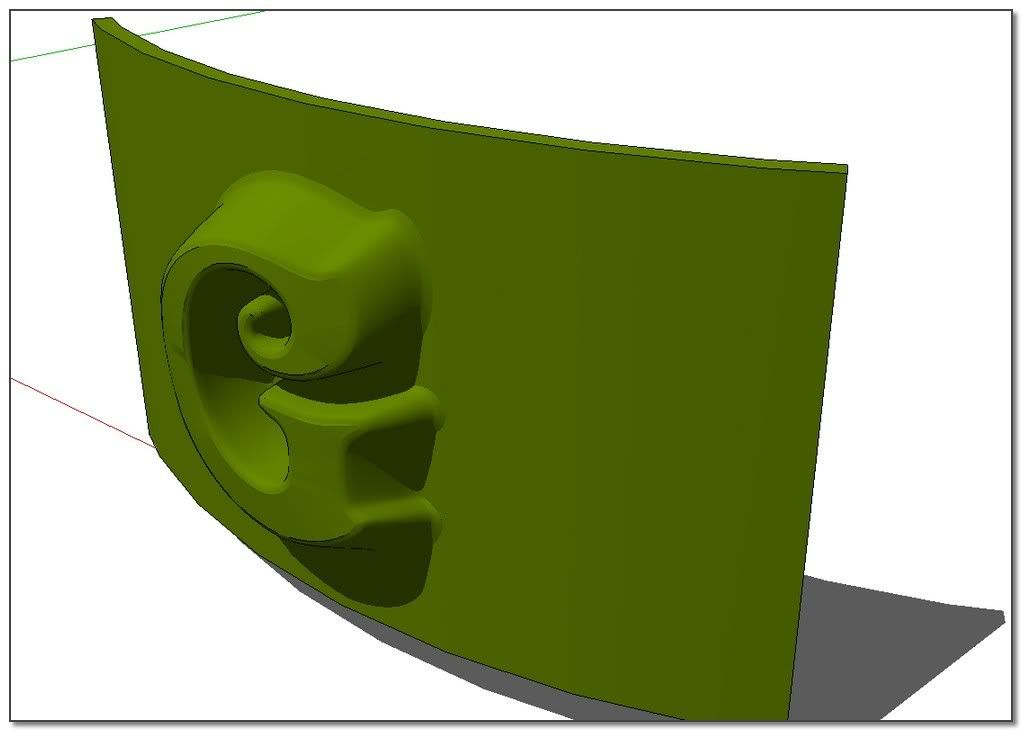

Finally, with a ShapeBender treatment:

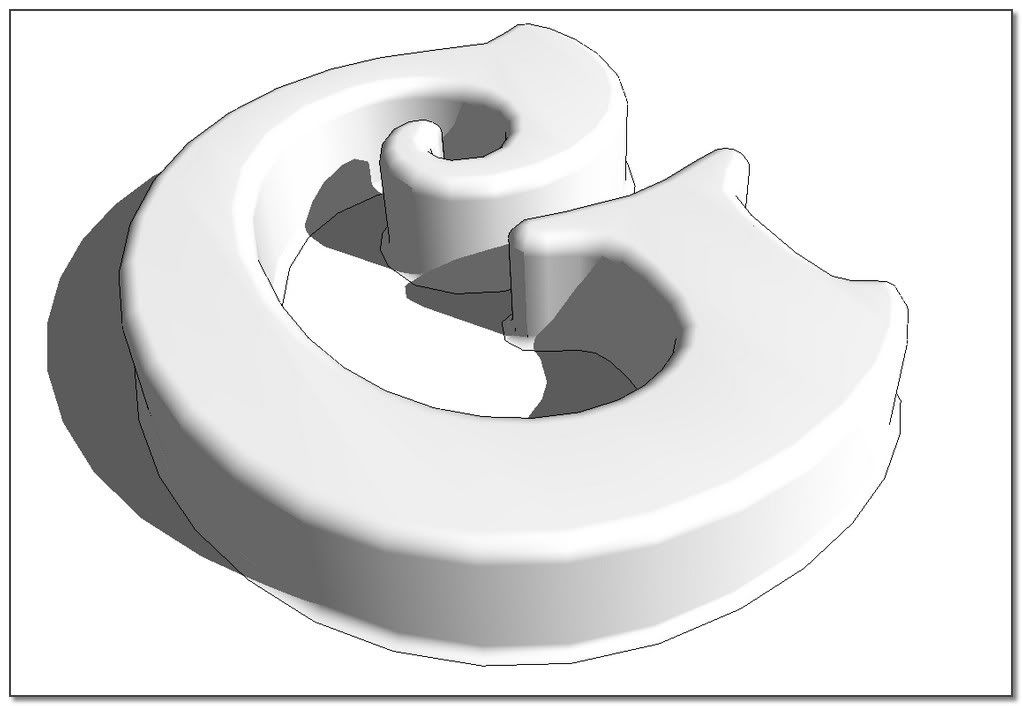

not to bad for me

Slideshow
___
[Plugin] SketchyFFD by CPhillips
[Plugin] Shape Bender by Chris Fullmer

simon.

ely862me

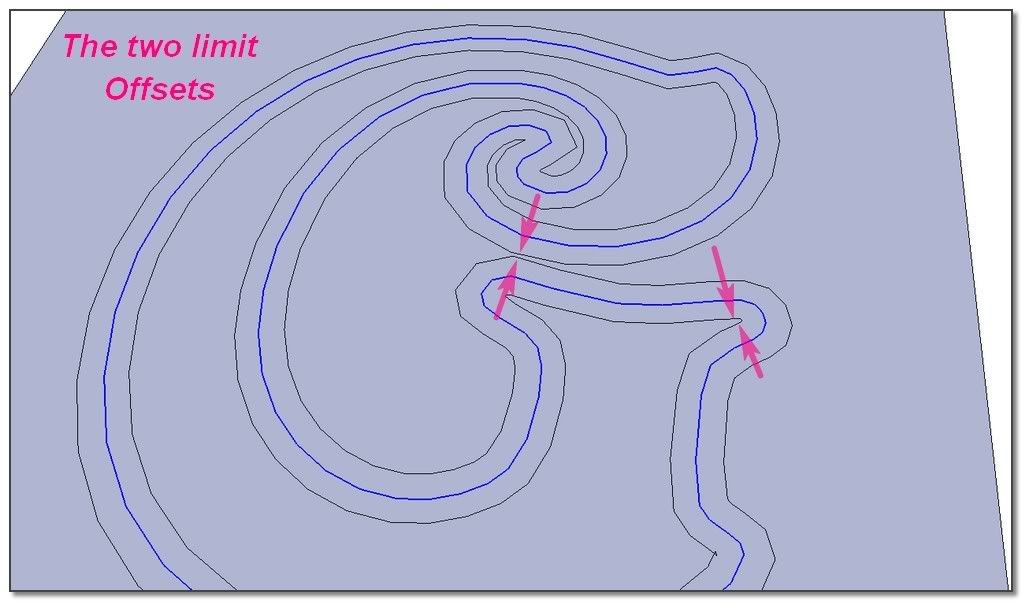

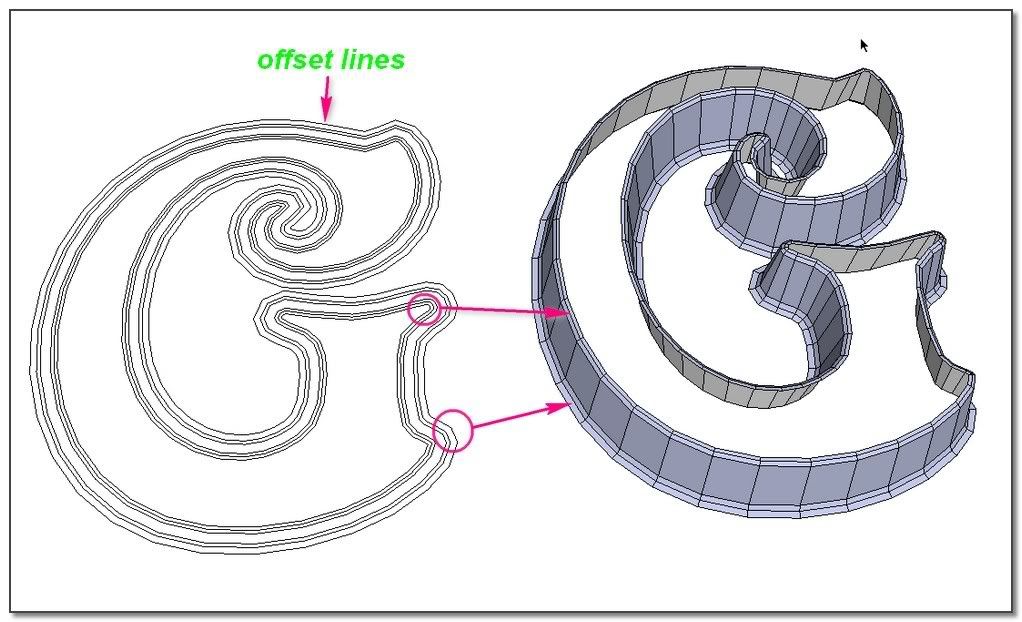

after making the shape with offset and skin i scale it but not all, just the outer lower profile . When u scale all lower profile the inside part of the letter is scaled too, so ,u want it to be smaller but u get it bigger(so it becomes bigger than the up part of the letter), what u need is to scale just the outer lower part of the letter

simon le bon

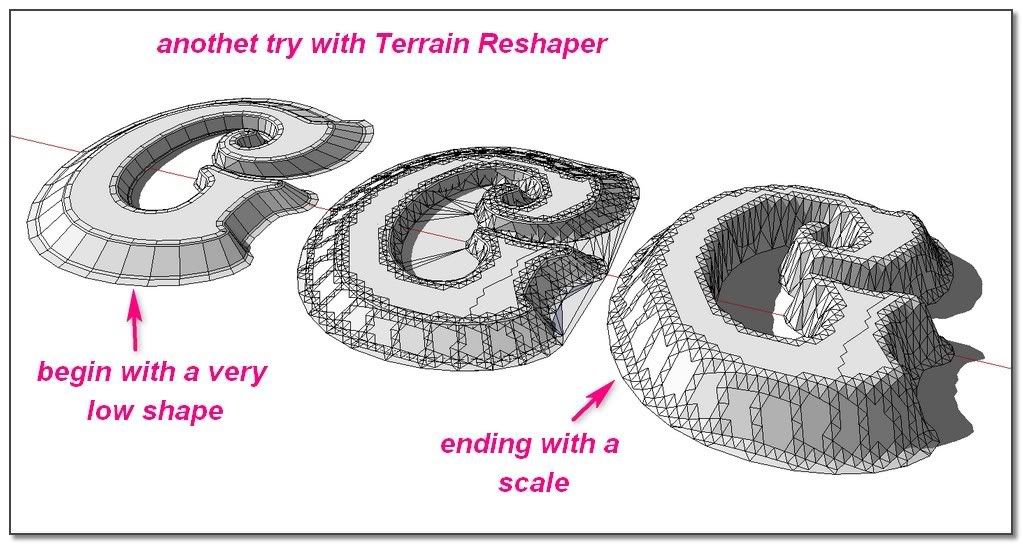

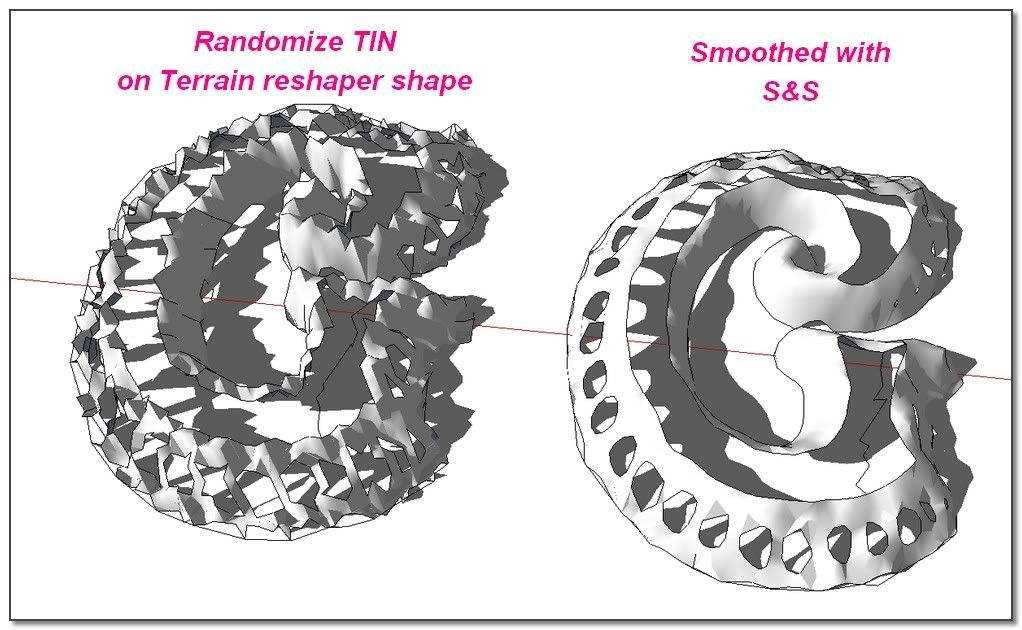

A last try for another method using Terrain Reshape and afterward Randomize TIN

The idea: apply the process on a very low shape and scale it after. I'm starting from the offseted and skined shape from Elisei. The result is not bad but S&S do very better. Its job isn't really for that kind of thing.

I still follow what was Planned:

The result is beautiful but far from what I expect. I keep it in mind...

Slideshow

Re I shall update with a link as soon as I shall have made a tutorial with this

I think: End of the topic!!! Thanks to all

Simon

ely862me

yet, u didn t get all the point..u need to make scale from center and select more geometry from the letter

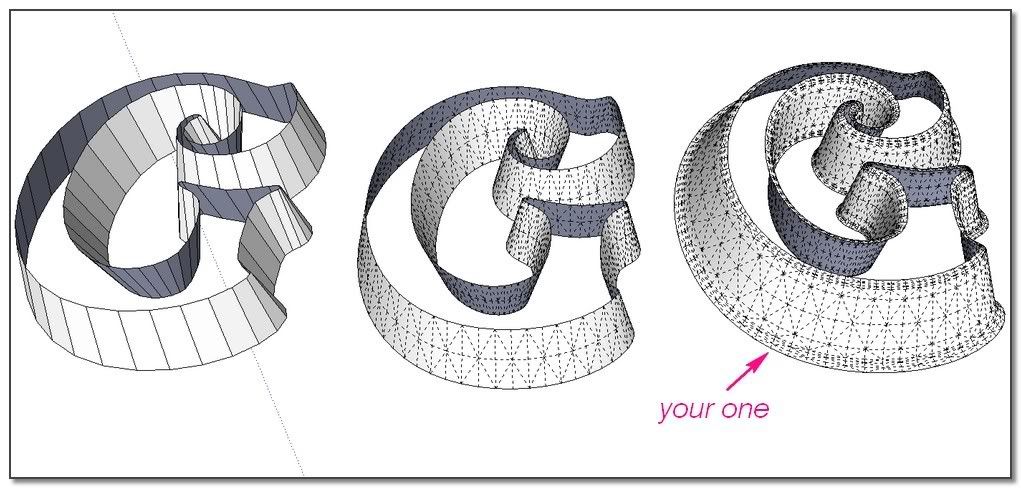

Btw..i didn t subdivide the top and letter together because as u can see when u subdivide them together the top becomes messy ,if u look at it with hidden geometry off

Elisei

simon le bon

Hi Elisei,

hey hey!! You don't give up so easily
-) Allright I was a bit modest with the lines I was scaling. What you do certainly works well.

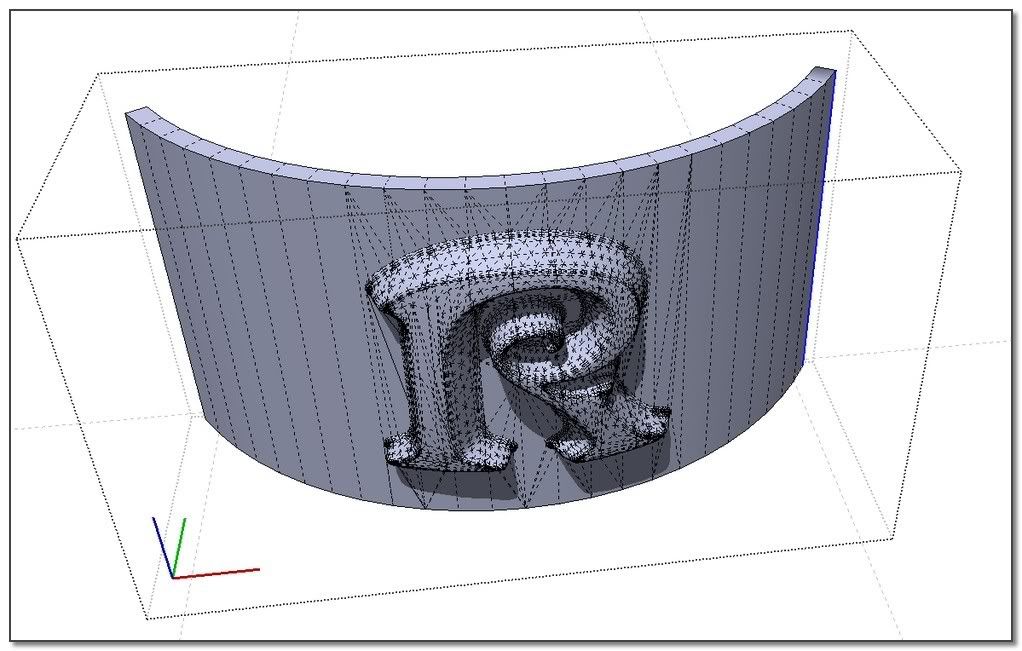

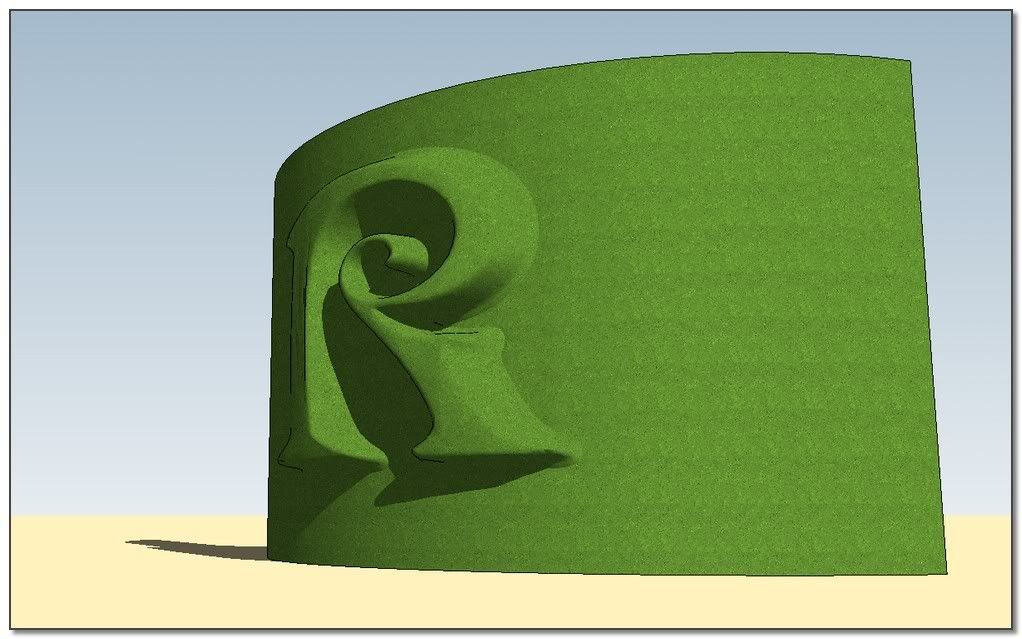

I put at the end My last "R" (in french "l'air de la plage": a pretty bad wordgame hi!) in which I have hardly scale, redraw, modify the outlines.

-) I prefer rather than you, doing all this job on the same plane before elevate and skin process.

@unknownuser said:

.i didn t subdivide the top and letter together because as u can see when u subdivide them together the top becomes messy

-)Messy, yes it is , but I don't understand you because:
1-with hidden geometry off, the look is perfect without any seam line remaining.

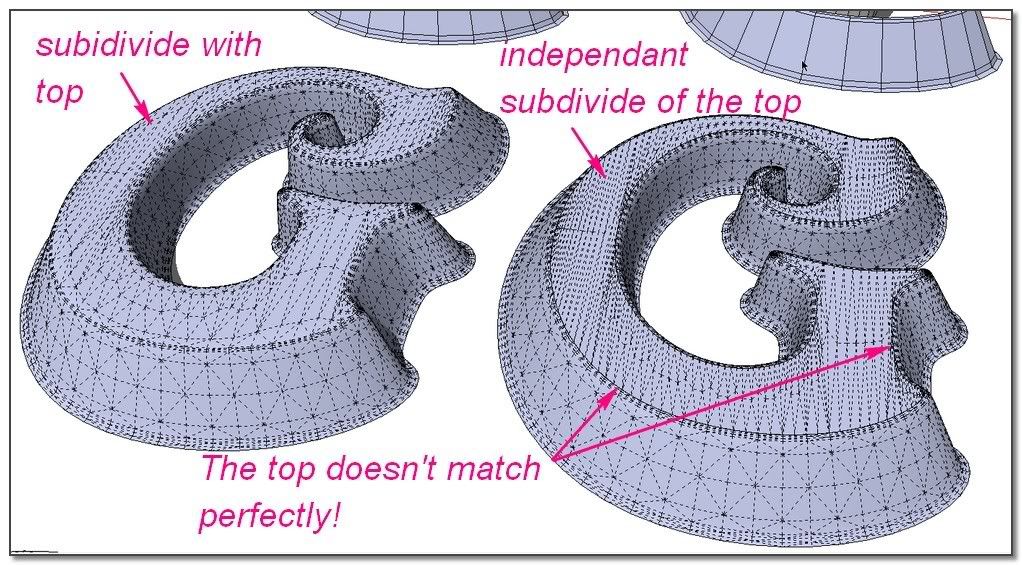

2-when I subdivide independantly the top, this one doesn't fit exactly well.

3-I haven't found one method which give not a "messy result".
4-the subivision is enough to use SketchyFFD pretty well.

Enough of the "G" Here is the "R"

.

++simon

simon le bon

Hi Elisei,
I was not fool: Very simple but your hidden trick
At the end the entire solution is from you!! Thanks and bravo: I have learned. I'm going to make a tutorial to simplify the process; shared with your name.

Partial Scale. Re: to simplify, I have removed the original letter's line

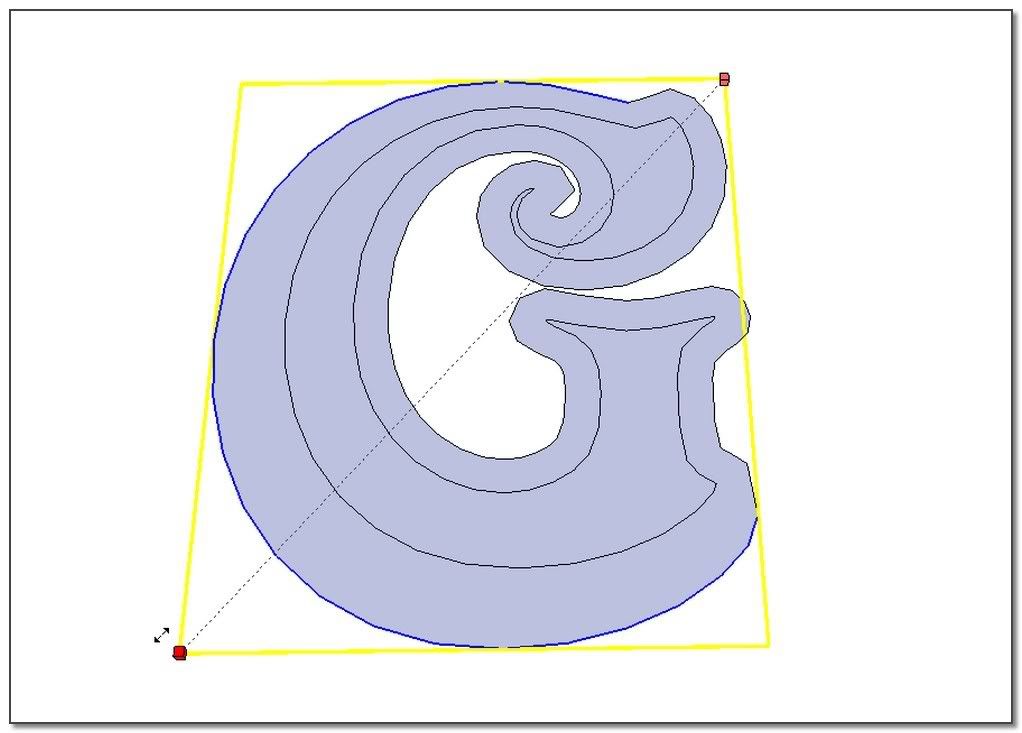

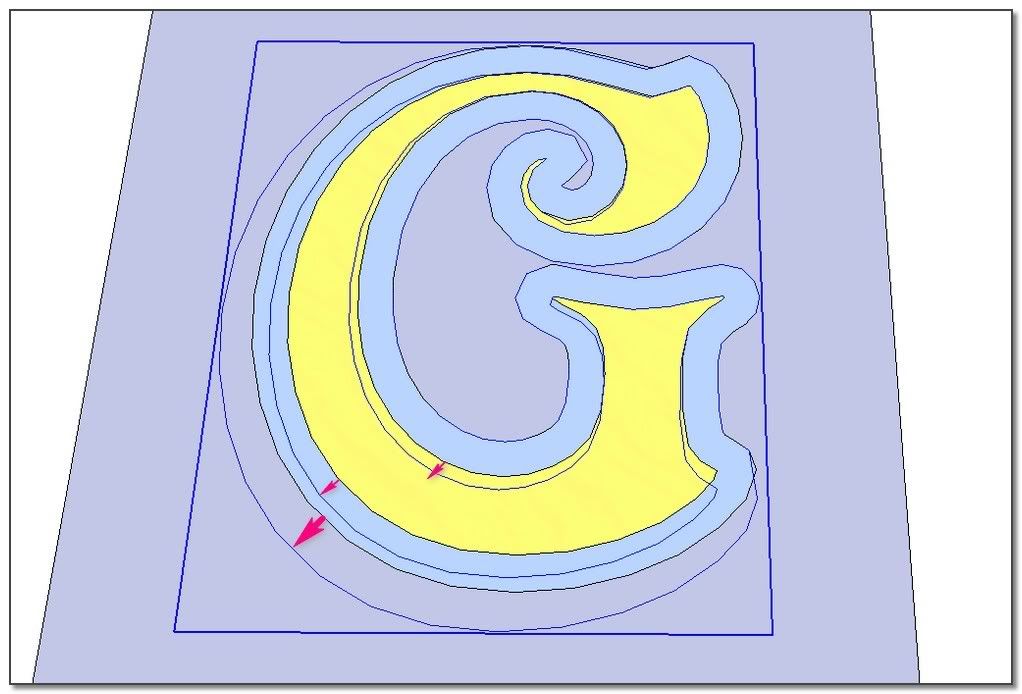

three scales. The yellow and blue figure is the basic one. I put it just to consider the scales

And now I get it Myself

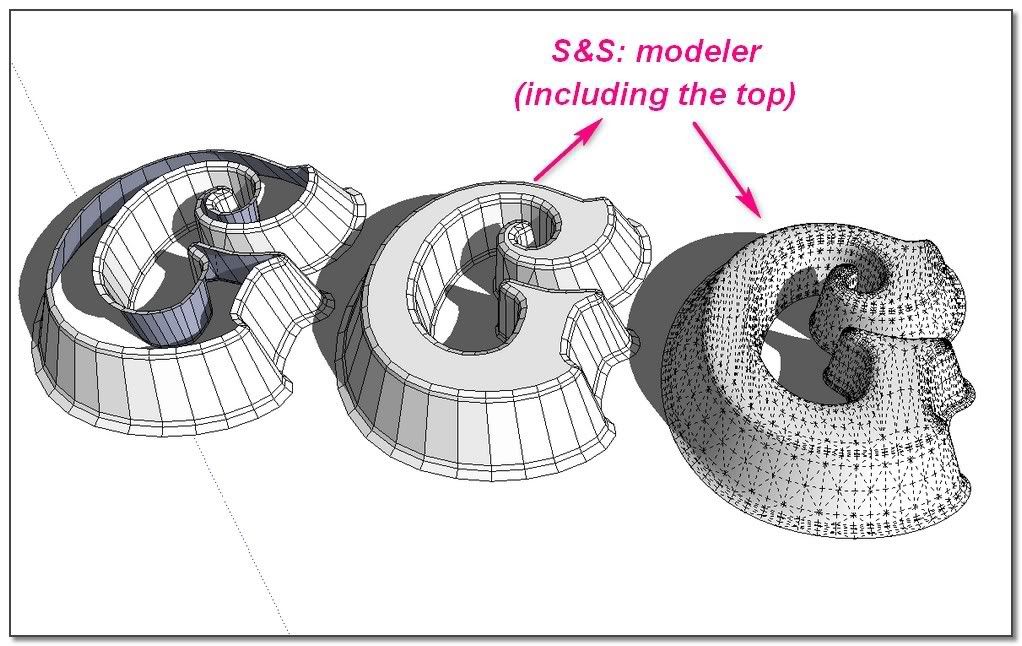

I come back on my previous post. No need to subdivide independantly the top of the letter. Just integer it in S&S modeler's process

simon

simon le bon

@alan fraser said:

I know that SU now has its own 3D text tool, but that tool is fairly basic. Don't forget the solution of choice before the built-in option (or the Smustard Ruby)
Elefont will automatically add a variety of bevels and chamfers that can be exported in dxf and brought into SU.
http://www.armanisoft.ch/webdesign/elefont/Elefont.html

Dear Alan,

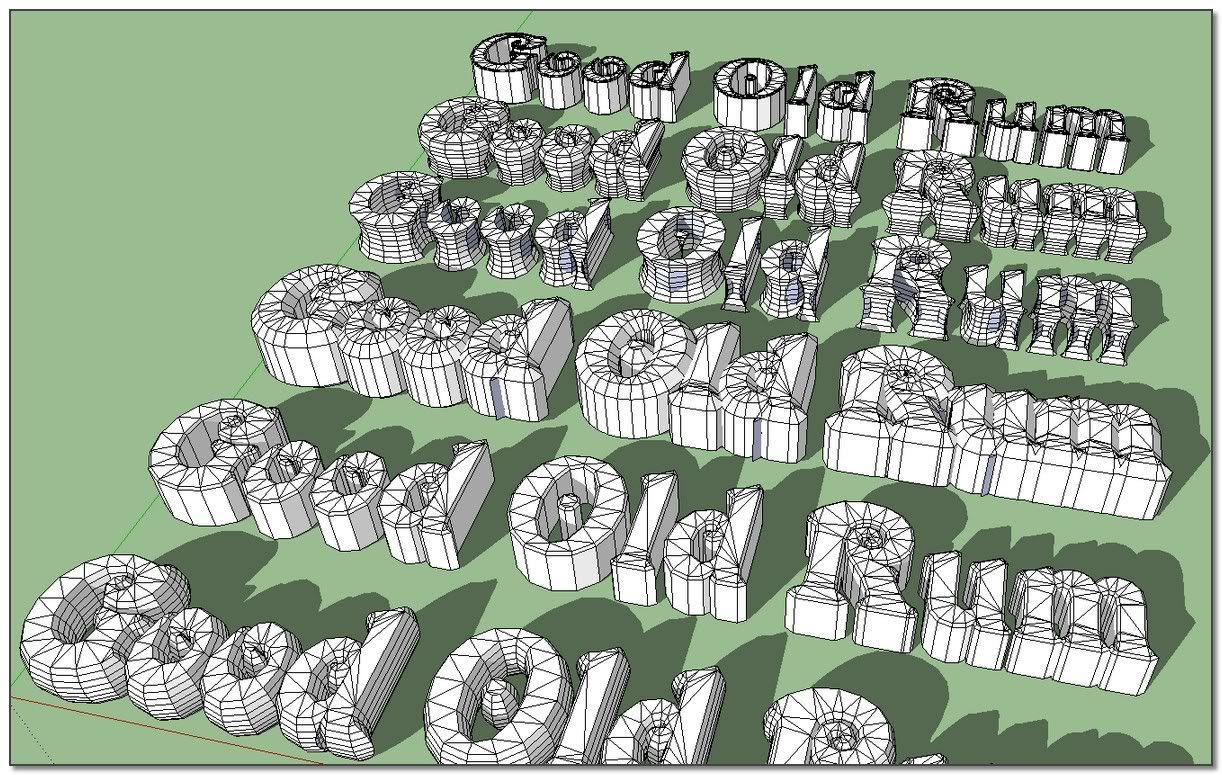

I have found time to test this "Elefont" from "Ingenieurbüro" Armin Müller you were talking about.

This last 1.4 version dated from 7July 1998 begin to be may be a little outdated . It is not too much handy because its display is very small and the previsu doesn't give a great control.

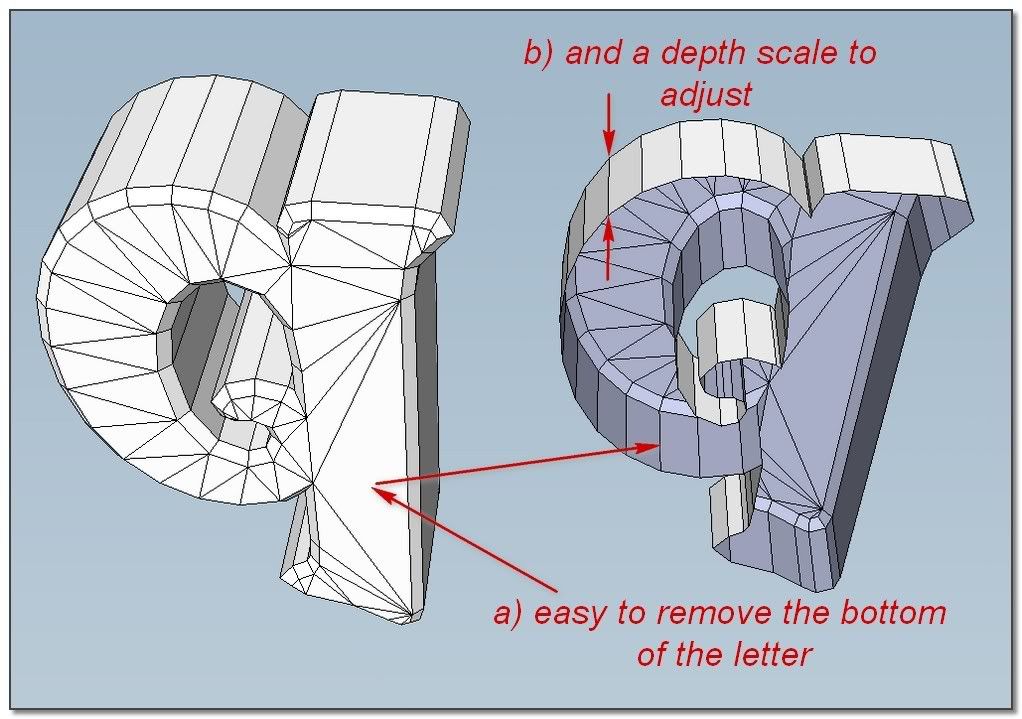

But in making small tries, we can do number of interesting variations. At the end the saving format in DXF is perfect to import in SketchUp.

These subdivided letter shapes are perfect to use directly with S&S , avoiding the previous Offset, Scale and Skin stages
I have tried to reach my goal: the molted letter.

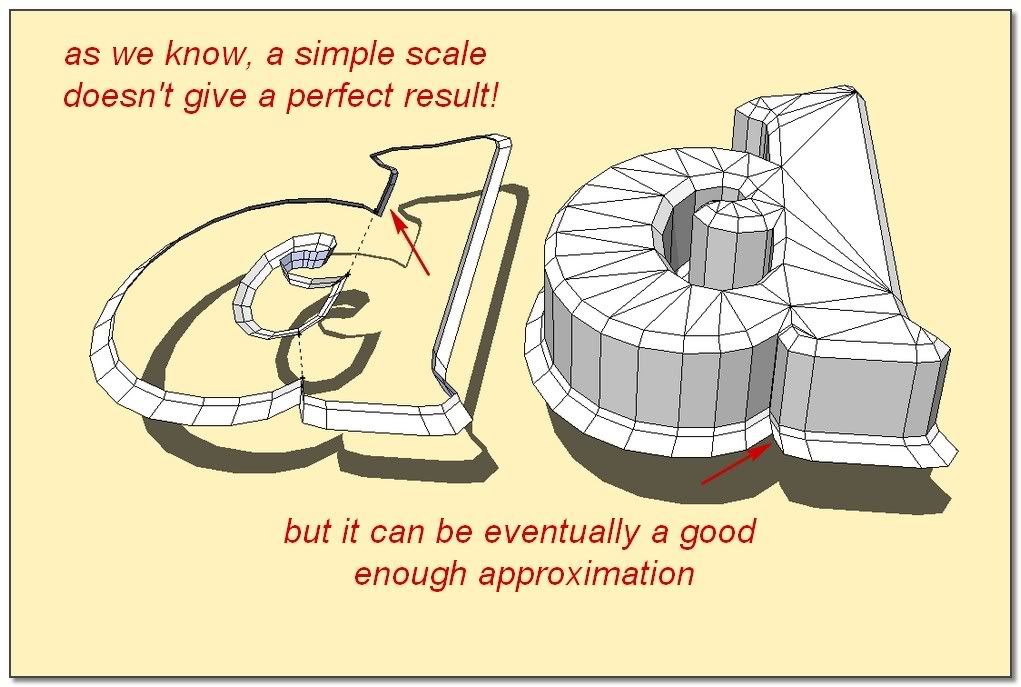

In taking the letter at this stage, making a real flare isn't possible (?) anymore. So if we satisfied with the approximative Scaled flare, it is OK.

simon
