Importing/creating streetmap data into Sketchup

Scheduled Pinned Locked Moved Extensions & Applications Discussions
5 Posts 2 Posters 75 Views 2 Watching
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • M Offline
    miikka1978
    last edited by miikka1978 23 Feb 2025, 16:48

    Do you know if there is any simple way or extension to import streetmap data into Sketchup?

    I would like to create a wireframe (centerline of each road) out of this map. Before tracing all the roads I wanted to check if there are any tools/extension/workflows to make it easier than just tracing all the roads with pen tool?

    My target is to 3D print the road network and I have been using/testing SVG import but when doing this I am not able to control the width of the road that needs to be exact width to have a nice and clean 3D print.


    1 Reply Last reply Reply Quote 0
    • R Offline
      Rich O Brien Moderator
      last edited by Rich O Brien 24 Feb 2025, 13:20

      Try Qgis: https://qgis.org/

      It has an extensive plugin ecosystem for map creation and 3D exporting

      Download the free D'oh Book for SketchUp ๐Ÿ“–

      1 Reply Last reply Reply Quote 0
      • M Offline
        miikka1978
        last edited by 20 days ago

        I am getting back to this topic. Qgis seemed to be quite some work to lear so I have been trying to use Inkscape for the purpose. My workflow has been:

        • Create an road/street/coastline/water network image with external mapping solution
        • Import the image to Inkscape for tracing the lines (center lines)
        • Export the traced map in dxf format and import this to Sketchup as dxf

        Has anybody else been using similar workflow (Inkscape + dxf export/import)? Do you have the same prblem with lines not connected or have you been able to solve this in Inscape or Sketchup, see below images?

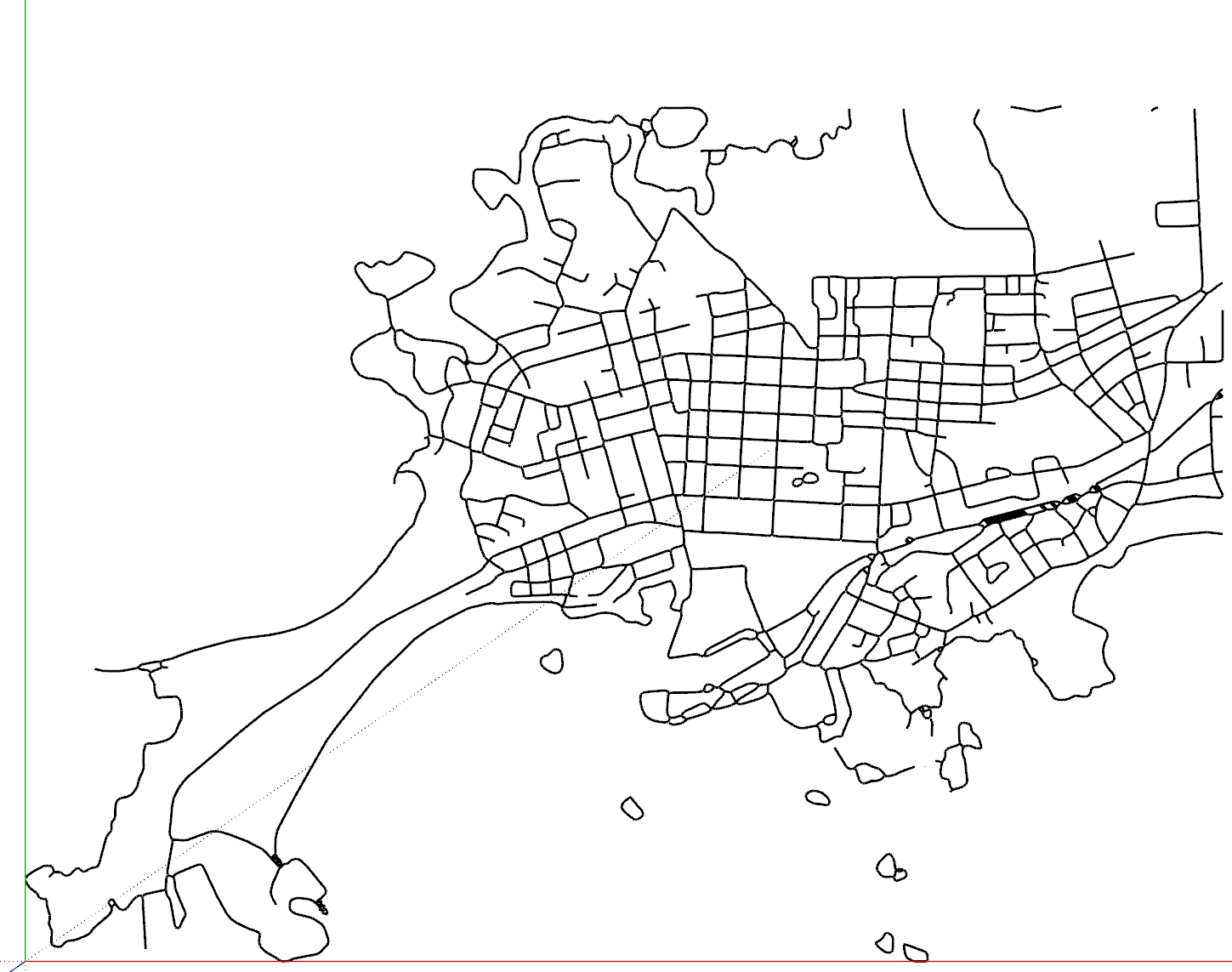

        DXF import to Sketchup:
        DXF Import_1.png

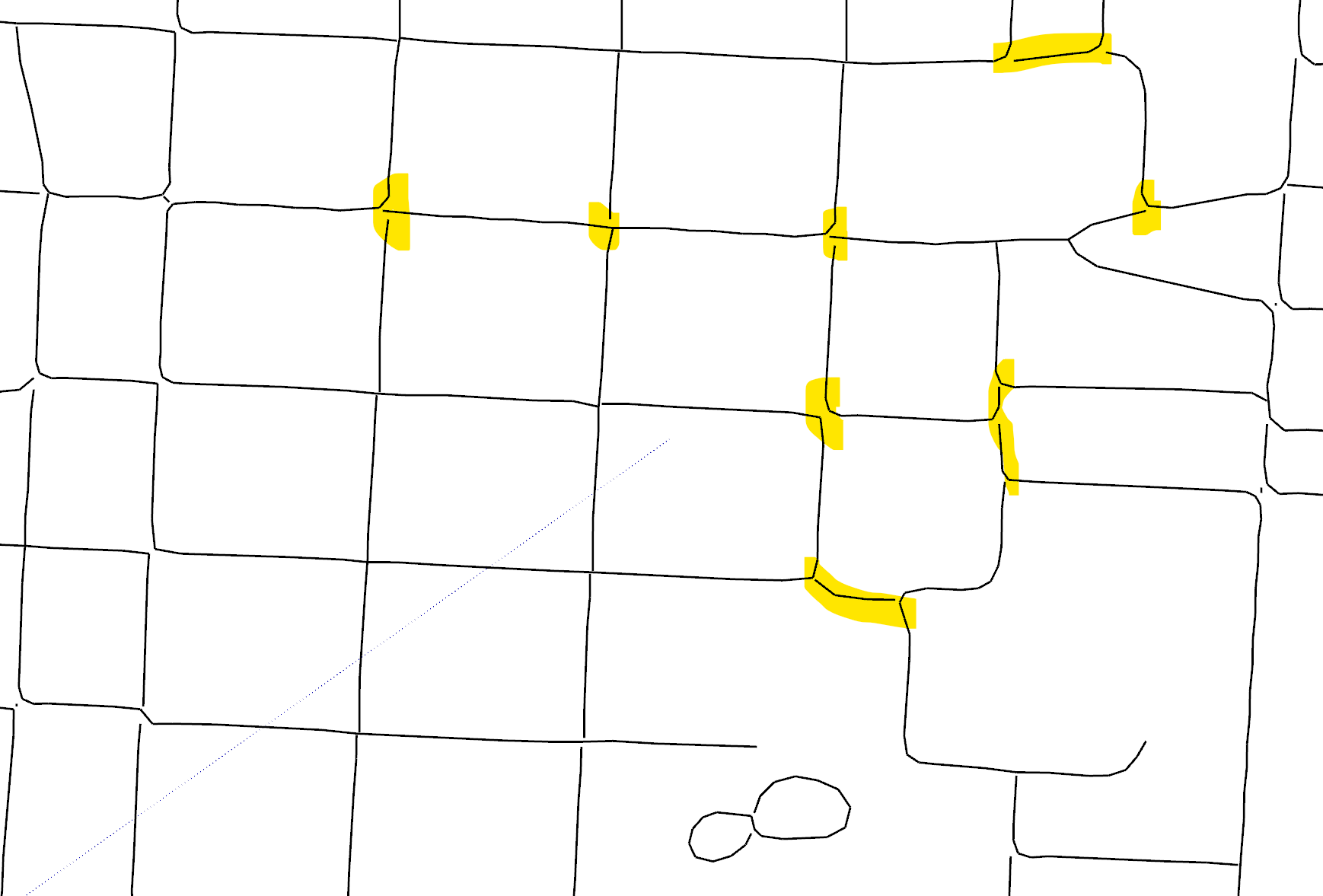

        Problem with lines not connected:
        DXF Import_2.png

        1 Reply Last reply Reply Quote 0
        • R Offline
          Rich O Brien Moderator
          last edited by 20 days ago

          Try this: https://map2model.com/

          You can control all manor of things

          Download the free D'oh Book for SketchUp ๐Ÿ“–

          M 1 Reply Last reply 19 days ago Reply Quote 0
          • M Offline
            miikka1978 @Rich O Brien
            last edited by 19 days ago

            @Rich-O-Brien Thanks for the suggestion.

            I noticed this tool few weeks ago and this would be perfect for "tracing roads" because you can define the road width separately. Unfortunately I have not found a way to include coast line in this tool and the water/sea areas are not properly defined. Hopefully this tool will be even further developed.

            1 Reply Last reply Reply Quote 0
