Steam Engine Machinist's Model

[Dave R]

A machinist's model of a twin cylinder steam engine designed by Joseph Bernays in the 1870's. The original was displayed in Paris at the Universal Exposition of 1878.

[Rich O Brien]

At this point I'm convinced your trying to make the Wizard of Oz machine...

Great modelling but why no Ambient Occlusion style?

[Dave R]

@Rich-O-Brien if I can find some good dimensioned drawings, maybe I will model the Wizard of Oz machine.

As to the AO, I didn't think of it.

[Bryan K]

Wow! Top notch work!

[Dave R]

@Bryan-K thank you sir!

Here's some views set up in LayOut.

[Rich O Brien]

@Dave-R Nothing comes close to SketchUp for native screenshots. Even minus shadows it's so easy to read the drawing.

[Dave R]

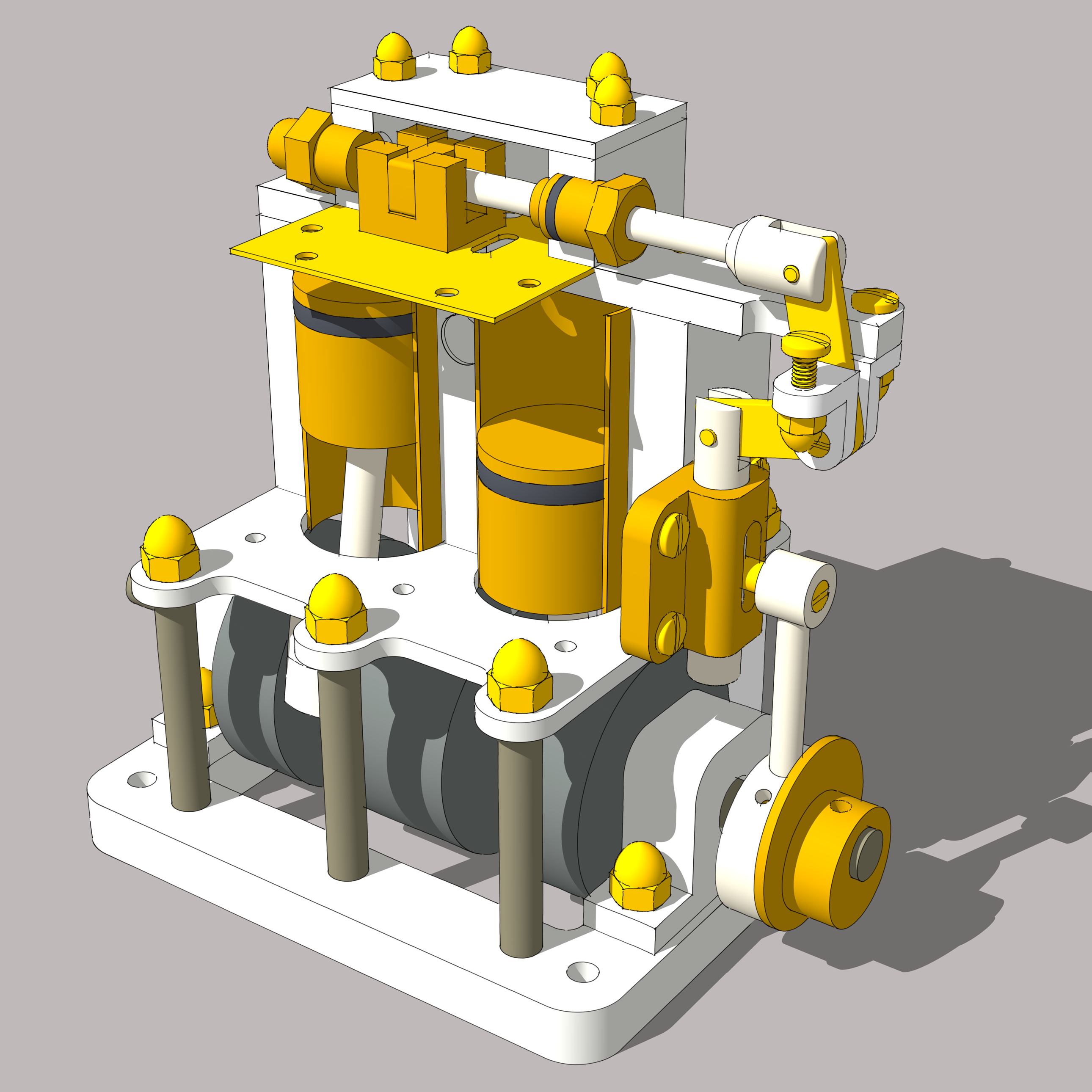

Another two cylinder engine just for the fun of it.

[Rich O Brien]

I love that. I want to see it with AO next

[Dave R]

@Rich-O-Brien

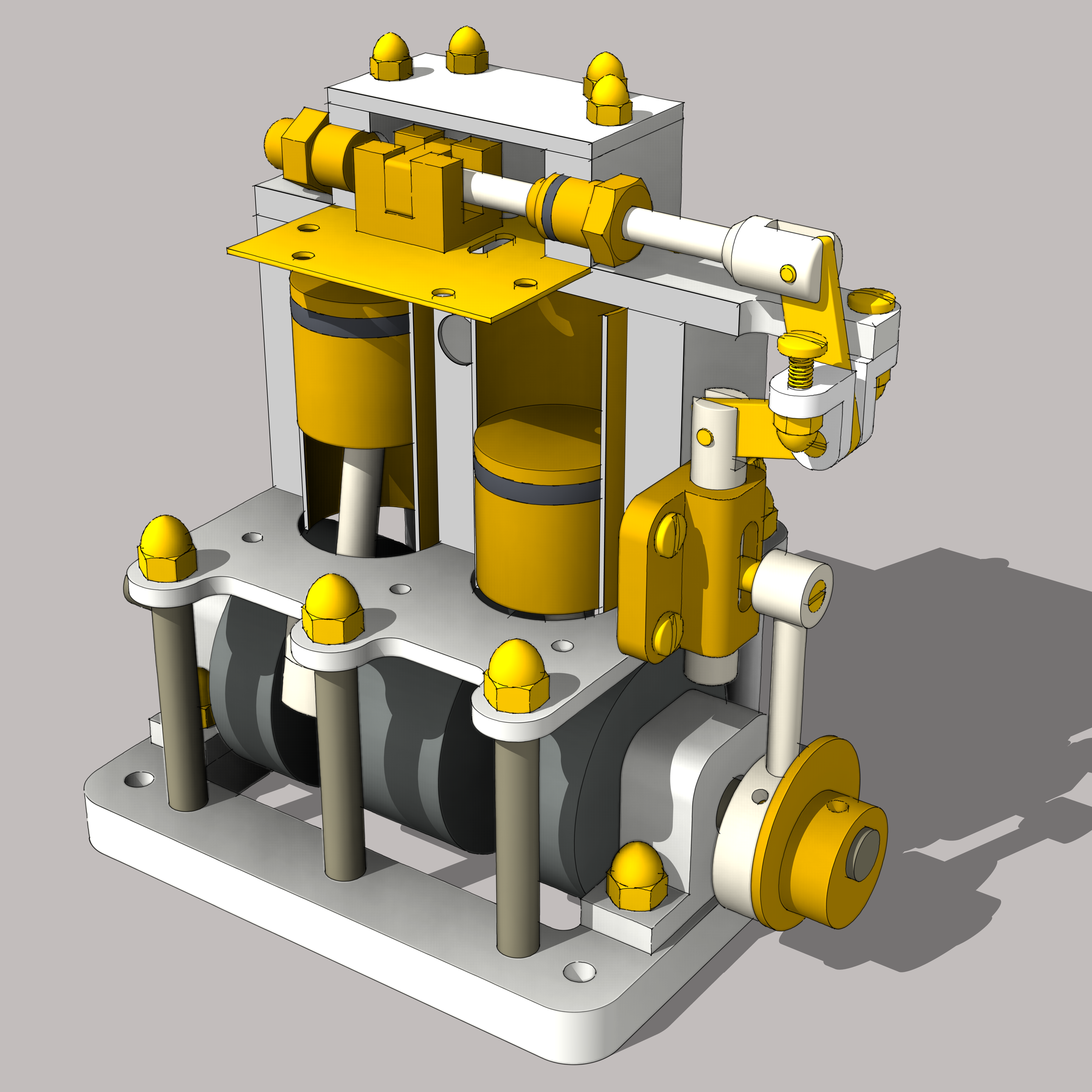

Not a whole lot of difference with AO on this one.

[Dave R]

Another little machinist's model. The flywheel on this one is 35mm diameter.
