      I have a circle here and I am trying to get a small radius to go all the way across on both sides and then round the top off as well. How do I go about doing this?



      1 Reply Last reply Reply Quote 0
      • Dave RD Offline
        Dave R
        last edited by

        Is this like what you want to end up with?

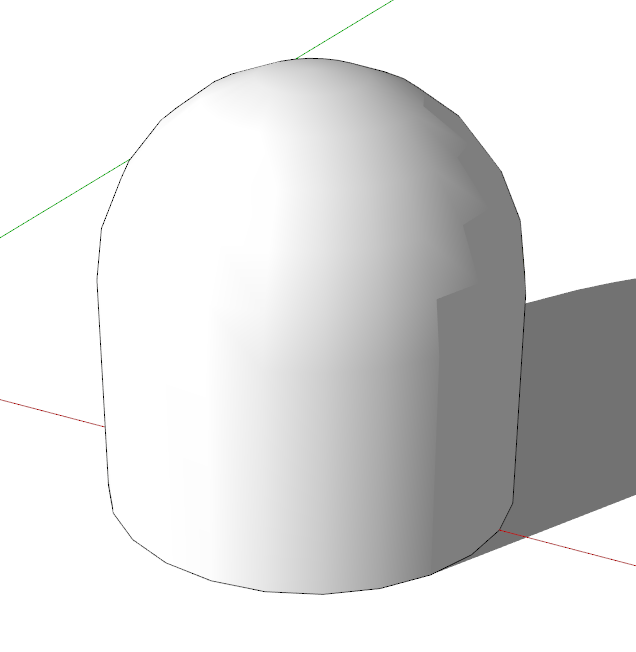

        Screenshot - 9_7_2017 , 4_32_28 AM.png

        If so, you need a different approach. Start with this. Select the edge of the circle, get Follow Me and click on the vertical face.

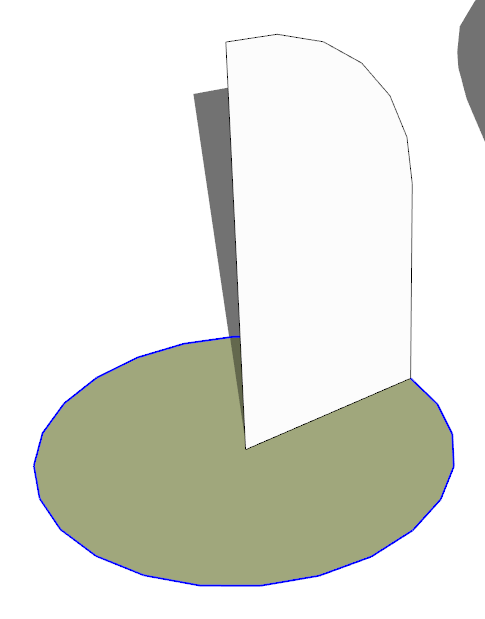

        Screenshot - 9_7_2017 , 4_34_21 AM.png

        Etaoin Shrdlu

        %

        (THERE'S NO PLACE LIKE)

        G28 X0.0 Y0.0 Z0.0

        M30

        %

        1 Reply Last reply Reply Quote 0
        • J Offline
          Jayfaas
          last edited by

          Dave Thanks for the reply. I still need the middle area as is, i just want to put a small radius on the top and bottom edges so its not such a hard line

          1 Reply Last reply Reply Quote 0
          • Dave RD Offline
            Dave R
            last edited by

            Oh. You can use Fredo's Round Corner for that.
