Medeek Wall Plugin
-
Version 4.0.8 - 07.25.2025
- Enabled LSL as a wall framing material.
- Updated the material textures for LSL and PSL.
These don't seem like major updates however there are numerous places within the plugin that required updating and also during the process I was able to further refine and compress the code so it is now more efficient and better organized. Updates were made to the following modules: Walls, Stairs, Columns, Beams, Posts and Shearwalls.
-
Version 4.1.0 - 07.28.2025
- Added the following Simpson "Sage" post caps and bases to the post module: SAGE_B66, SAGE_C66, SAGE_T66
- Fixed a critical bug for custom materials within the stair module.
- Updated all of the move tools with upgraded wireframe previews and dimensions.
- Updated the window, door and garage door draw tools with a filled wireframe preview.
-
Version 4.1.1 - 08.17.2025
- Added Fixed - Slider (L) and Fixed - Slider (R) windows to the window module.
These two window types added per customer request.
-
Version 4.1.2 - 08.18.2025
- Added hexagon windows to the window module.
Note, that to get a regular hexagon window you will want to enter in a window height that is given by this formula:
height = width x 0.8660254
So for example if window is 48" wide its height will be: 48" x 0.8660254 = 41.569219"
One can always enter in any size for example an elongated hexagon or squished hexagon but I suspect most manufacturers will typically only stock a "regular" hexagon shaped windows in various sizes.
-
Version 4.1.3 - 08.21.2025
- Added a "Label Scaling" parameter for all wall types.
Update per customer request.
-

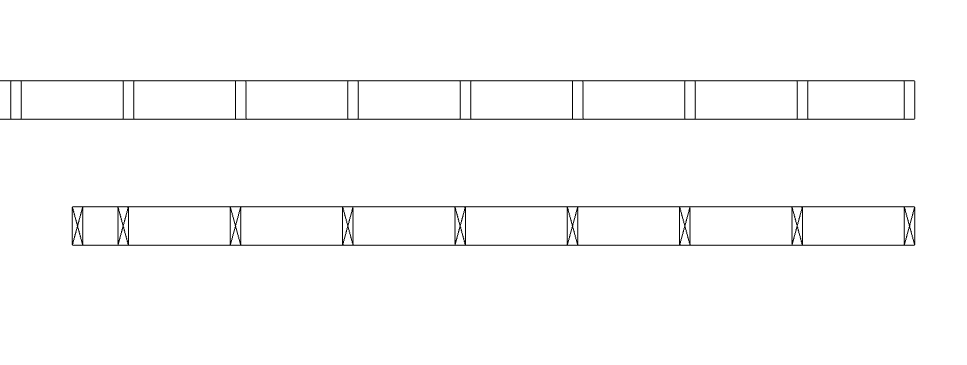

any future option on framing (wall and trusses) to include the plate end marks? e.g.
also on the blocking (noggin marks?) etc.?
