Help with ProfileBuilder4 Wallblocks
-
Trying to make an automatic assembly of wallblocks but long time since I Used it so I need help.
How can I make this functional?
-
ProfileBuilder can build an Assembly from a selection.
Model parts needs to be accurate though. If things have skewed axis location you'll end up with a mess.
-

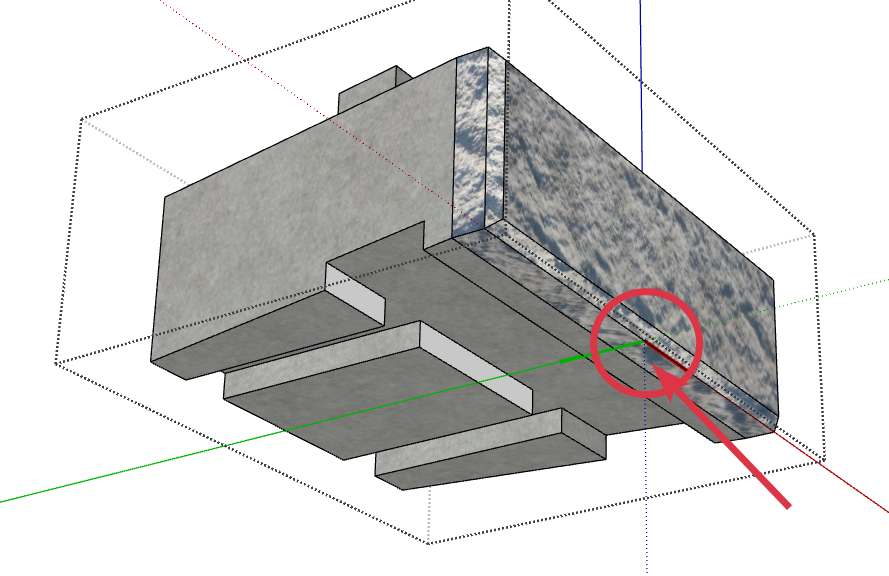

I have a problem making the blocks without intersecting eachother when drawing. Tryng to maximize with whole blocks only, -that is -no overlapping geometry.
Block1.skp -
Did you uncheck Max ?
-
Thank you Rich.That was it ; ) Works fine in straight lines but how can I make a curved wall with blocks facing forward paralell to the cuve?

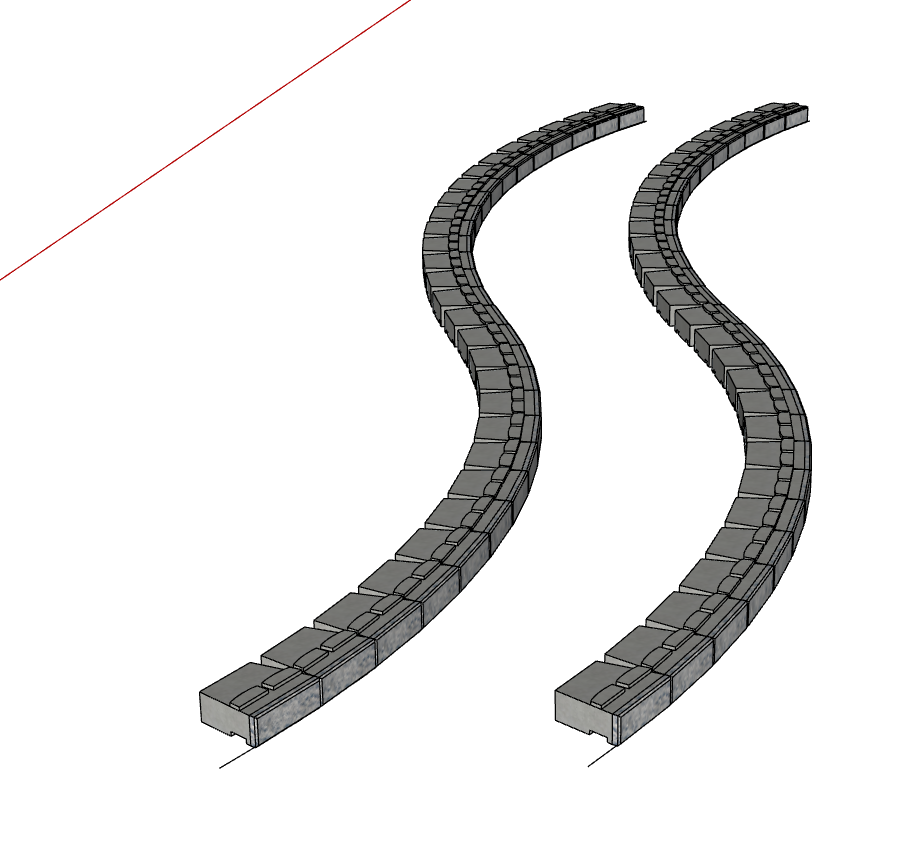

This Curved wall was done manually
CuvedWall.skp -
The component axis sets the insertion point location. Try setting the brick component axis to be the center so all rotation originates from that location.
That would mean using the Left/Right offset value to get what you need.
-
Wow Rich! Thank you. Will try it out
-

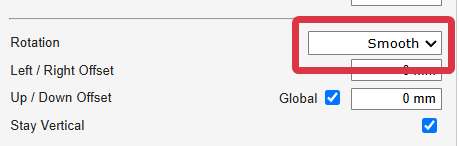

You may need to set Smooth too
-
Thank you ;: )
BlockWall.skp
