3d dimensions visible for render

barin23

Hello, please help, ist there an extension that changes the Sketchup "standard dimensions" into 3d model that would be visible in render (V-ray)?
thank you

Dave R

I don't believe there are any extensions to do that. You could use 3D text and drawn 3D dimension and extension lines to create the geometry. I find it's simper and faster to combine a couple of image exports; the render and a dimensions-only image direct from SketchUp. This is a quick 10 second render to show the idea.

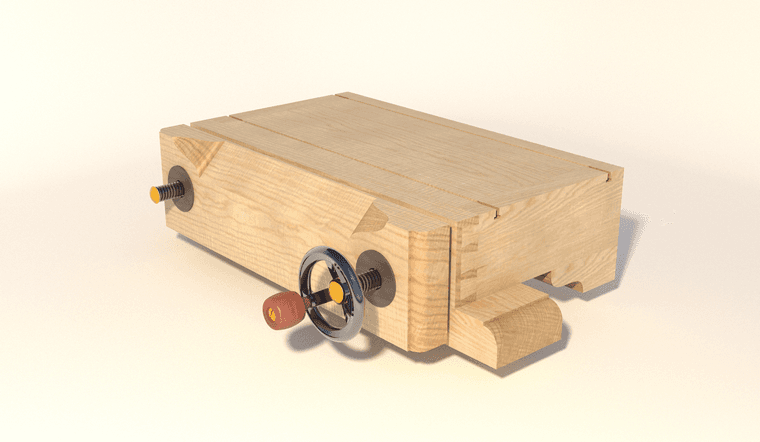

The render:
Vise render.png

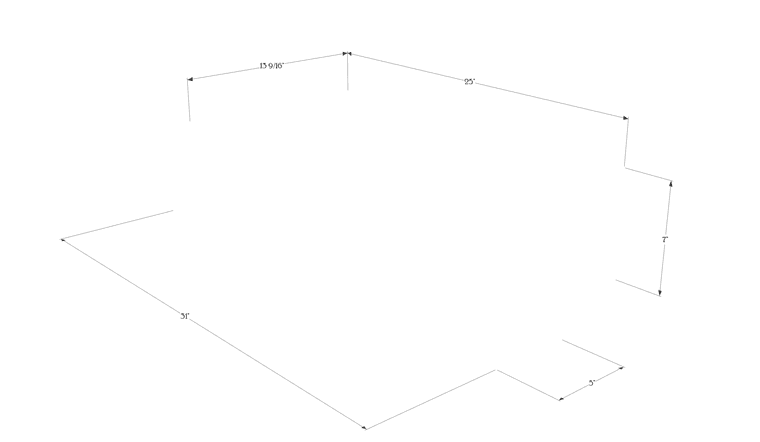

The dimensions-only image export from SketchUp:
Creasman Moxon Vise dimens.png

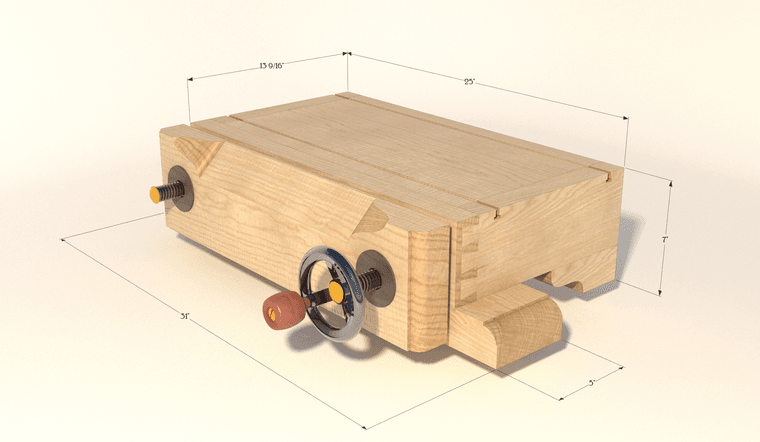

And after combining them in an image editor:
Creasman Moxon Vise render.png
The layer for the dimensions is set to Multiply in the image editor.
