Medeek Project
-
And just for fun:

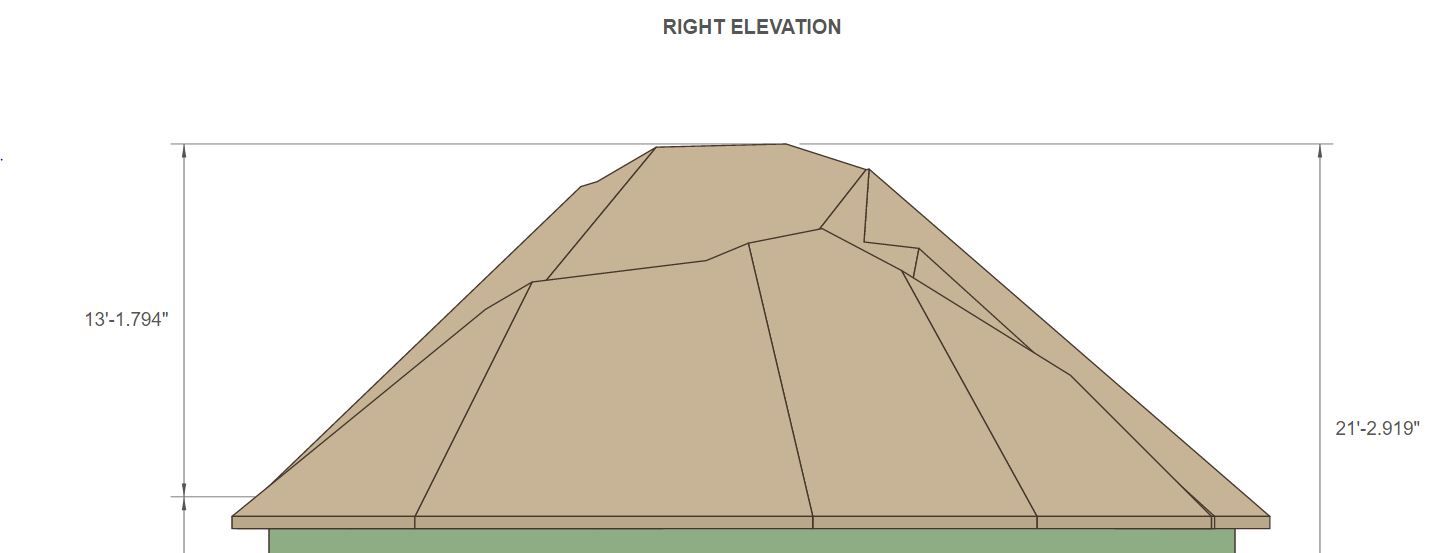

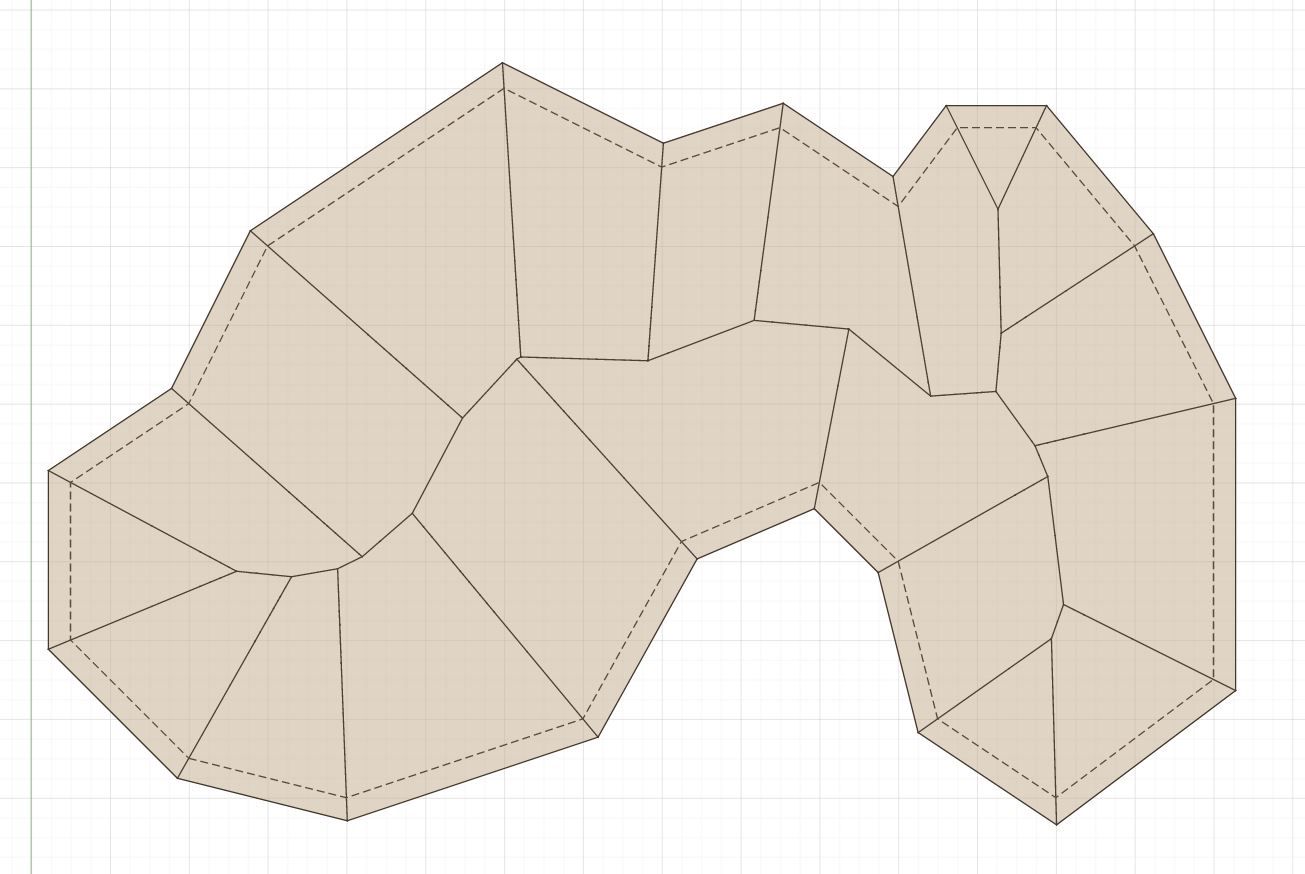

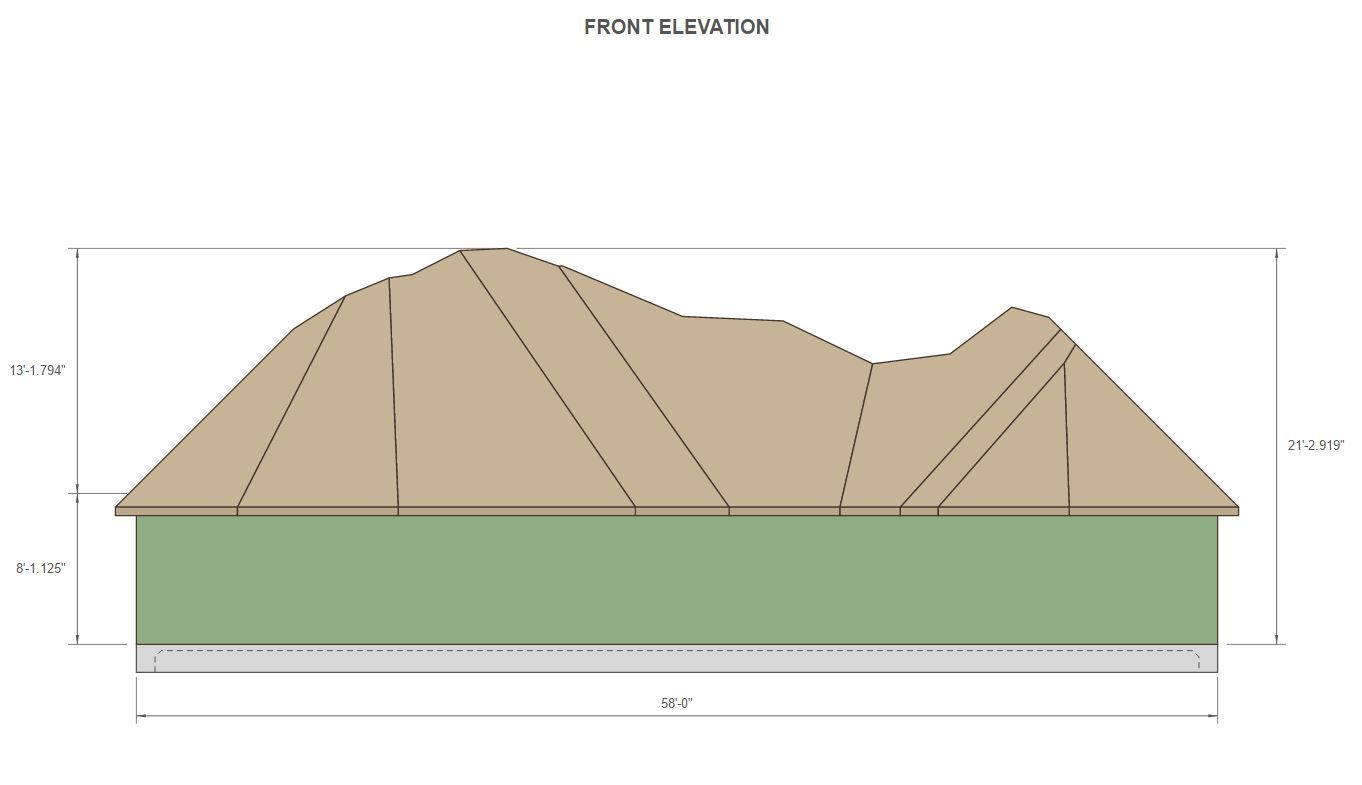

I call this the "Mountain House". A sufficiently motivated framer (lots of money) could stick build this, I'm quite convinced.
-

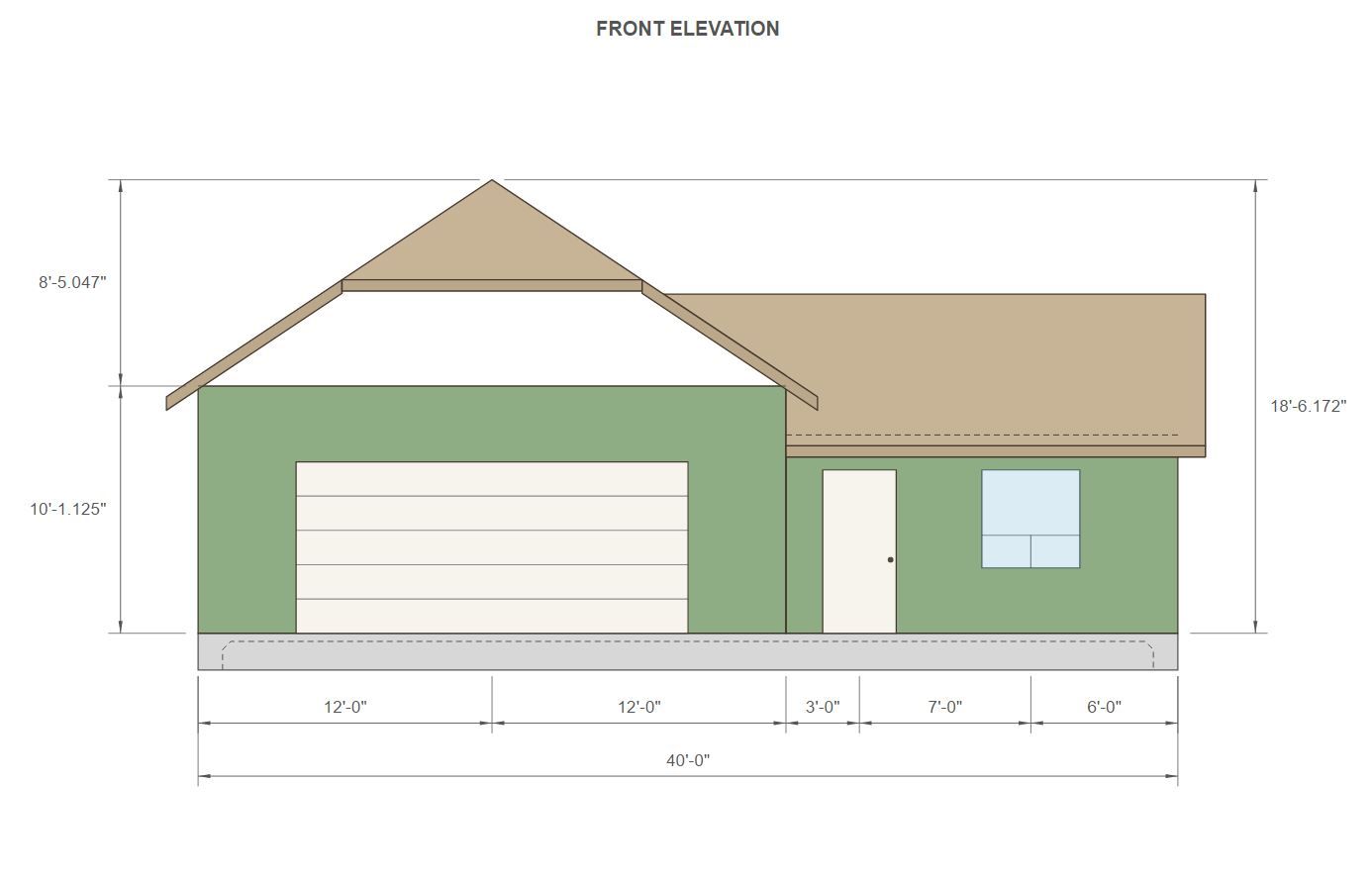

Next is a test of the raised fascia offset:

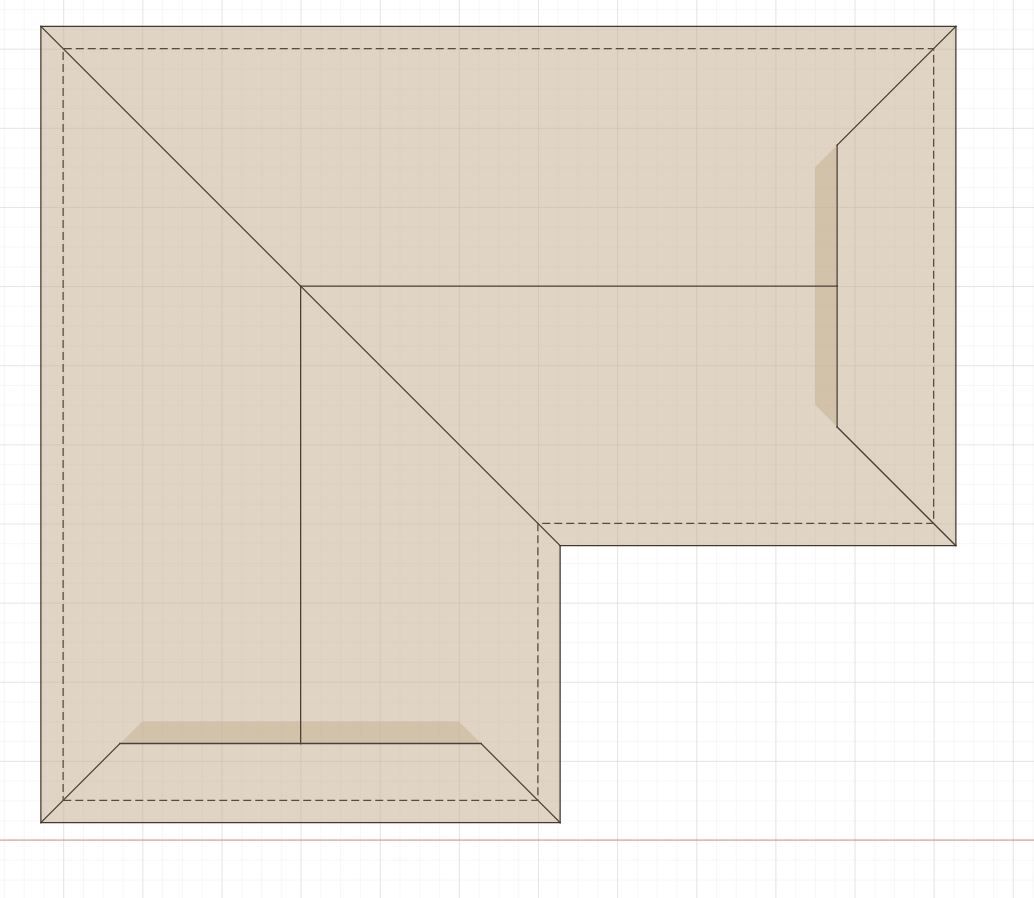

My question is what do we do in the field at this sort of corner?
Also the same sort of thing at the re-entrant corner.
-

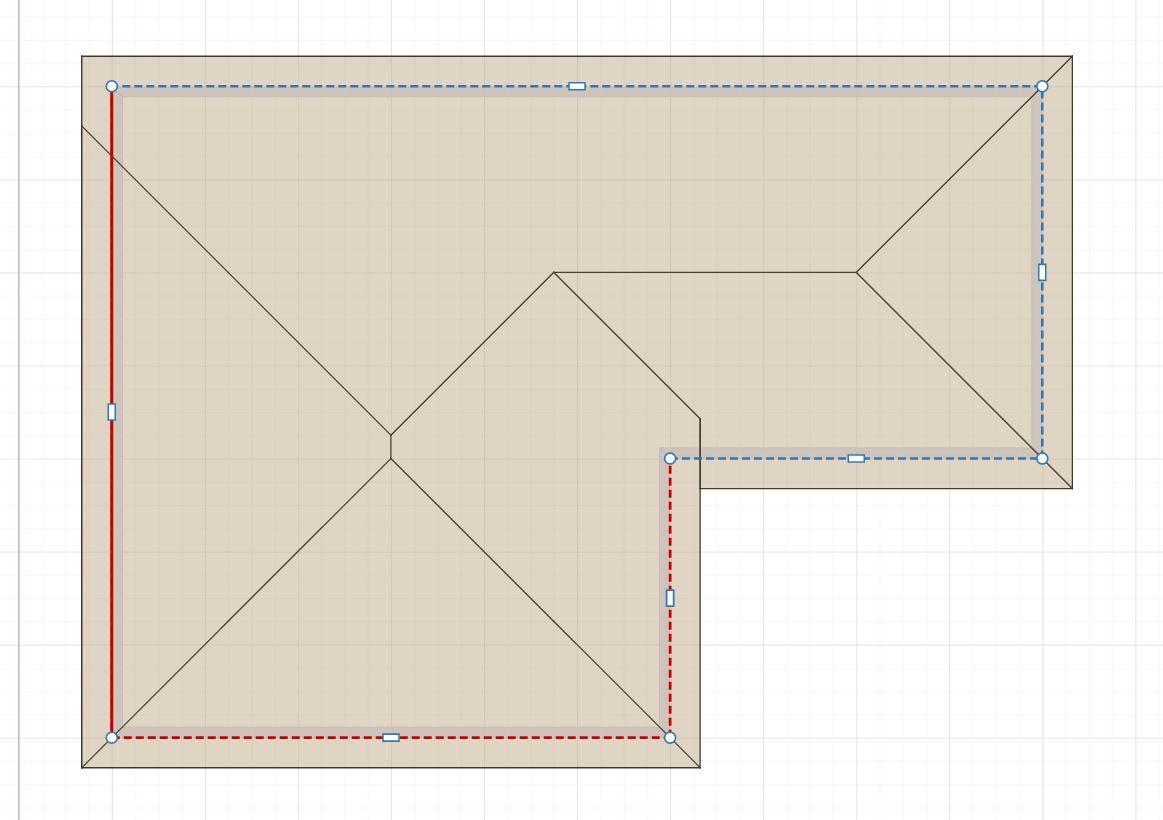

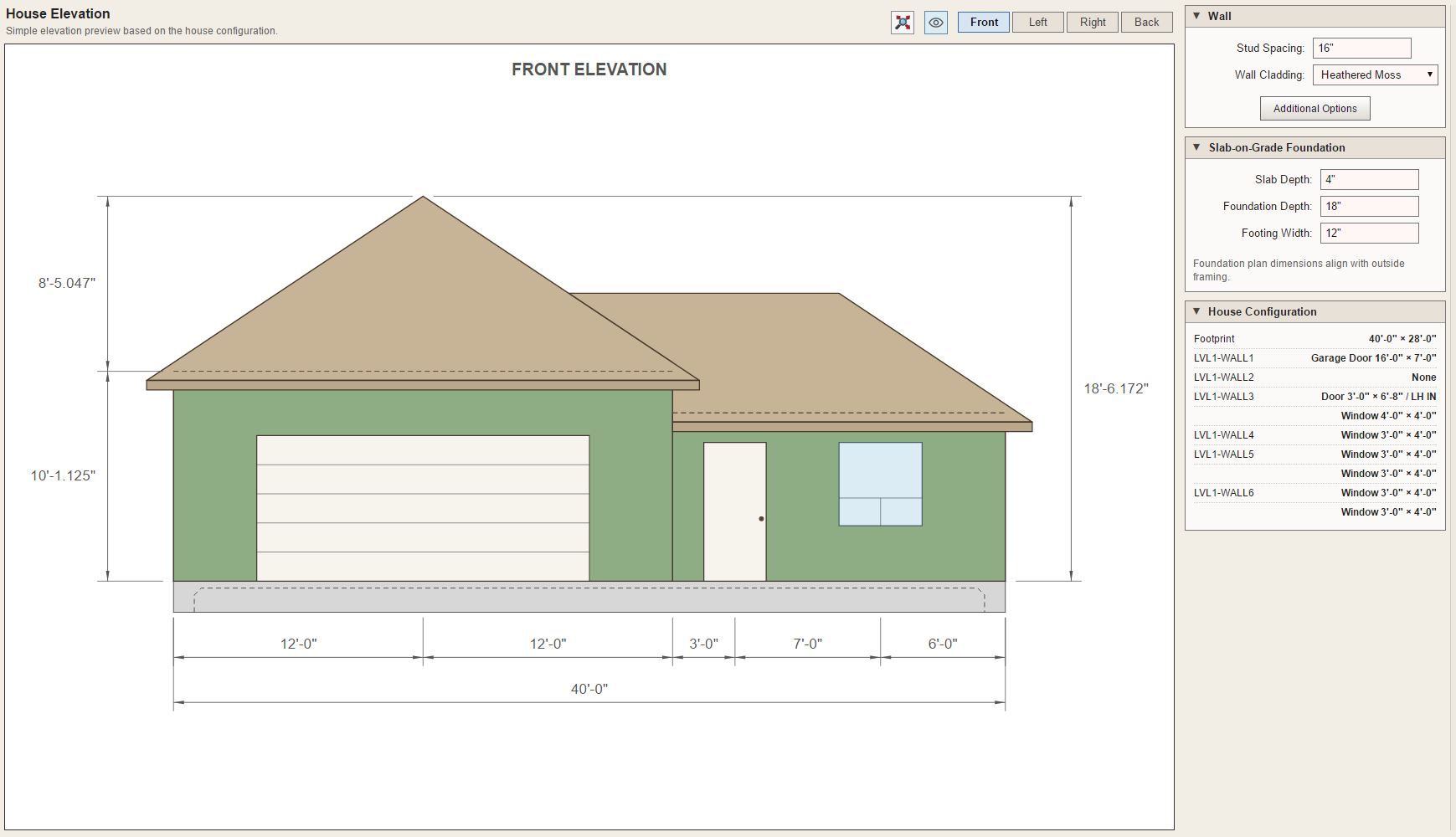

Looks like we will also need to add in hip walls for these "half hip" type roofs:

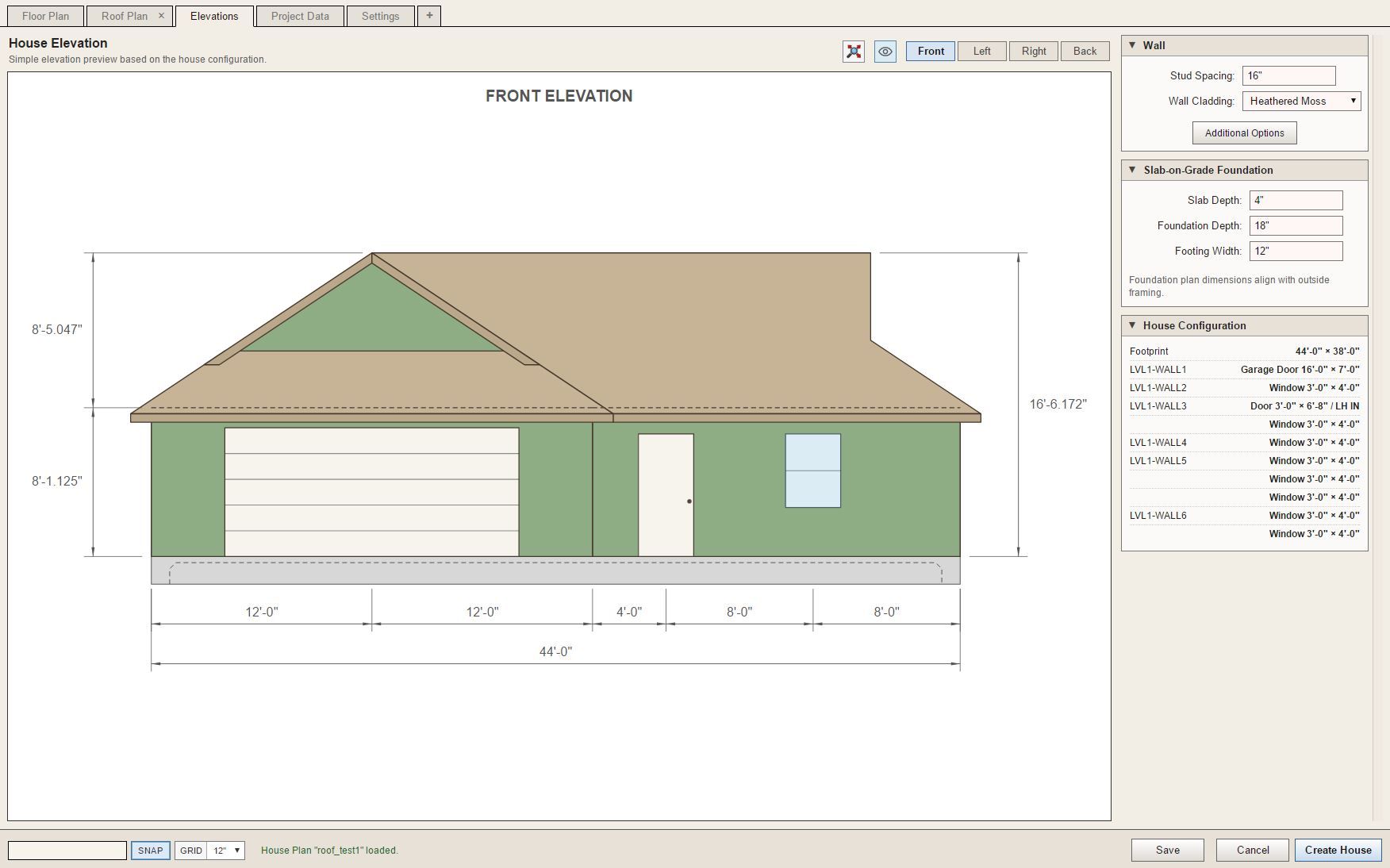

I've also added in the Dutch Gable option for roof planes as well:
This almost completes my work on complex roof in the house builder. Of course some additional work remains in connecting the House Builder to the Truss plugin's API. I will also need to enable the API with some new methods for complex roofs, but that work is relatively straightforward.
Tomorrow I will look at the Roof Plan tab and probably add in a few more roof specific annotation options. Then from there we double check that the Print and DXF functions are wired up correctly.
And then finally we move on to Foundations.
However, this additional work on complex roofs has exposed the fact that I need to enable additional wall types in this app.
