      Hi all,
      I need your urgent help in creating Filleted edges in my Sofa Model.

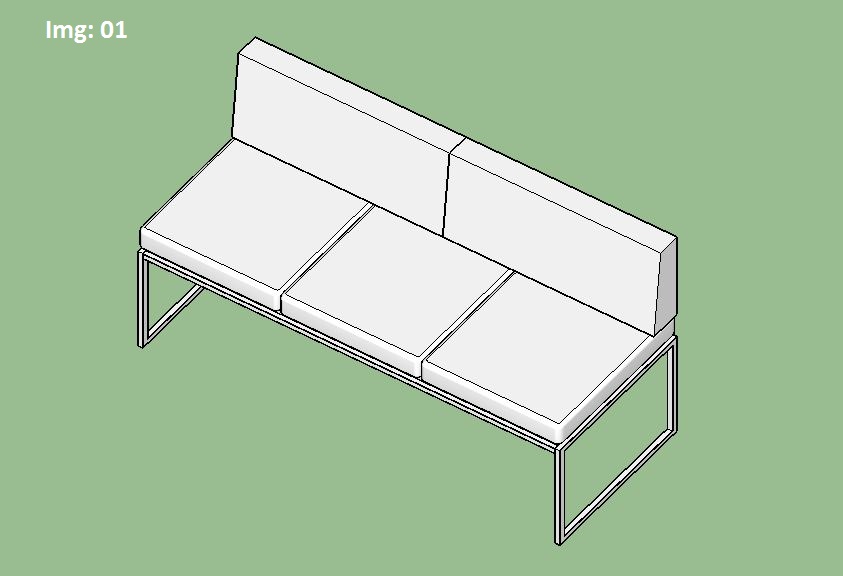

      Img 01 shows the model which i have created so far with the top portion being a 90 deg bend.
      Img 01

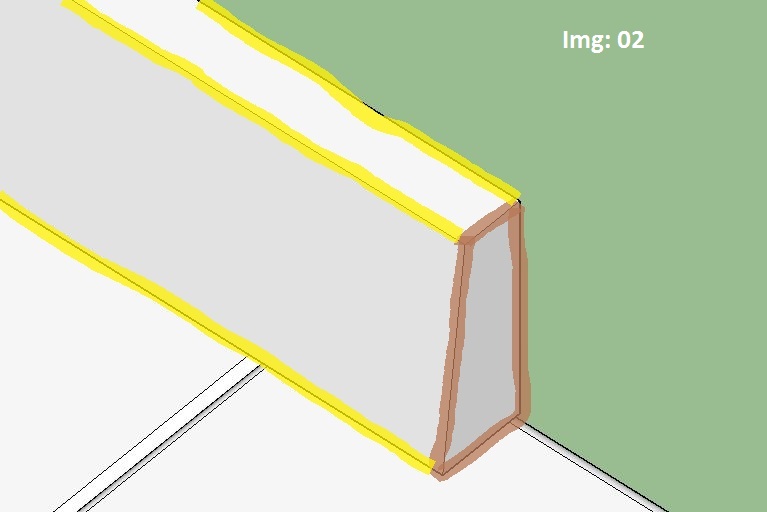

      Img 02 shows the area to be filleted with different radius values. ie, YELLOW represents fillet value "a" & BROWN represents fillet value "b"
      Img 02
      Img 03 shows how the model with filleted edges should look similar.
      Img 03

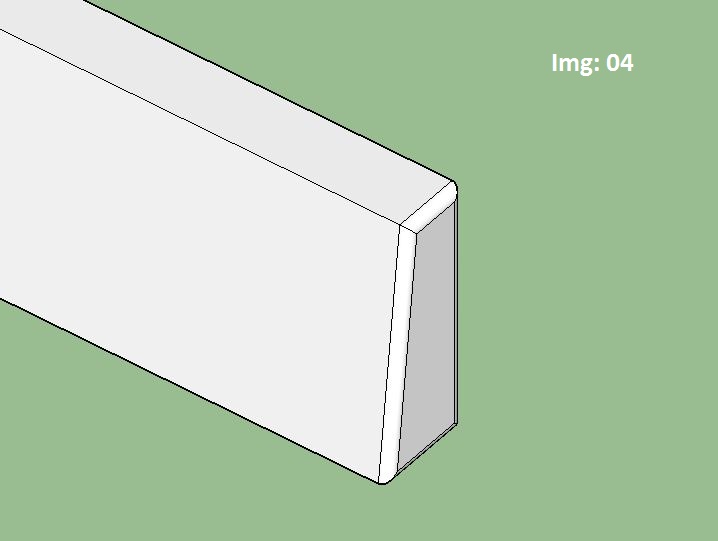

      I've tried using "Follow Me" and have created sides to match the ref model as seen in Img 04
      Img 03
      Now i want to create fillet edge on all other edges with another fillet value which need to match the existing filleted edges.

      Please help me with a solution to this model at the earliest.. Also let me know if any plugins available for doing this job since i have a lot more jobs to complete which needs filleting

      Thanks in advance... Good Day...

      Pramod Syam

      1 Reply Last reply Reply Quote 0
      • Dave RD Offline
        Dave R
        last edited by

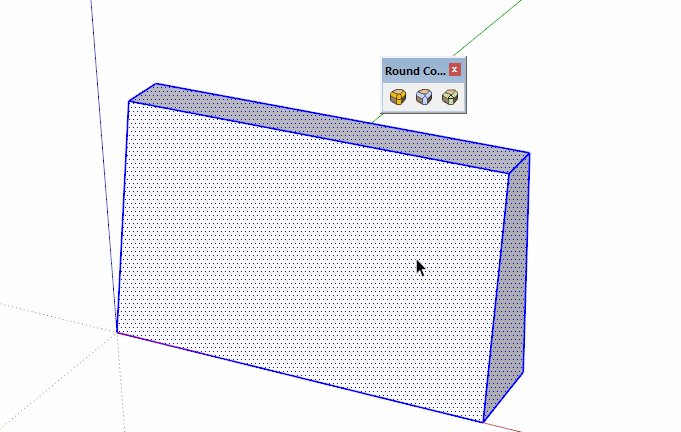

        Fredo's Round corner would make quick work of that. It's in the PluginStore.
        Click on the picture.

        Etaoin Shrdlu

        %

        (THERE'S NO PLACE LIKE)

        G28 X0.0 Y0.0 Z0.0

        M30

        %
