    Substract Component (Window) from Object (Wall)

    Scheduled Pinned Locked Moved Newbie Forum
    sketchup
    7 Posts 5 Posters 314 Views 5 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A Offline
      awenro
      last edited by

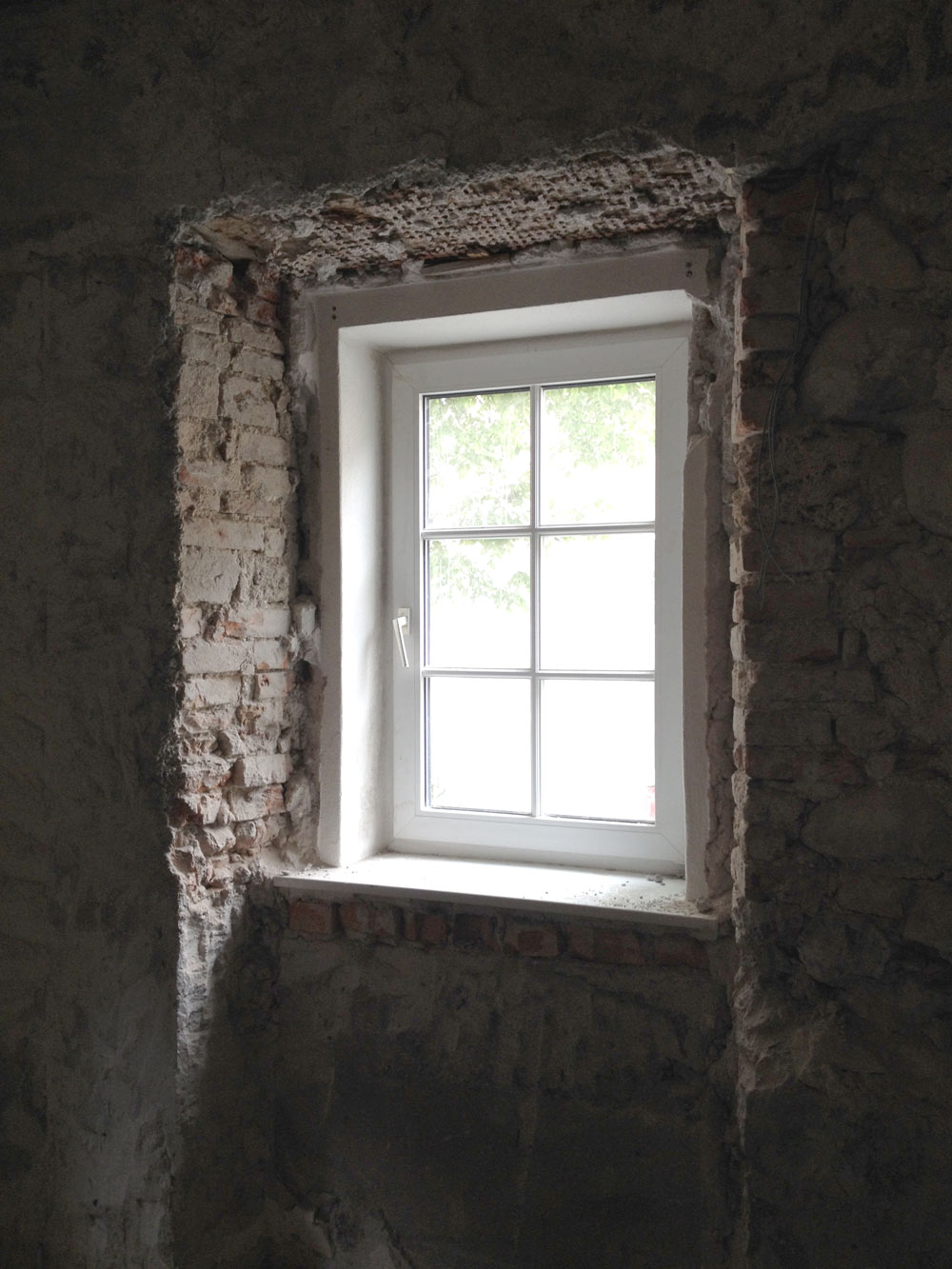

      I struggle to draw the window in the example attached efficiently. I want to draw a house with 30 of these. Is there a way to create a component of the reveal + window and substract it from the wall, without modifying the wall itself? What I mean: The Component should displace the wall around it and it should still be possible to move the window around and copy it. If I draw those one by one they are hard to move and replicate – at least I don't know how.

      What's the best and easiest way to draw them? I'd really appreciate your help!
      β˜€



      1 Reply Last reply Reply Quote 0
      • pilouP Offline
        pilou
        last edited by

        Copy / Move your "element" any time you want and move the walls ?


        Frenchy Pilou
        Is beautiful that please without concept!
        My Little site :)

        1 Reply Last reply Reply Quote 0
        • ntxdaveN Offline
          ntxdave
          last edited by

          @pilou said:

          Copy / Move your "element" any time you want and move the walls ?

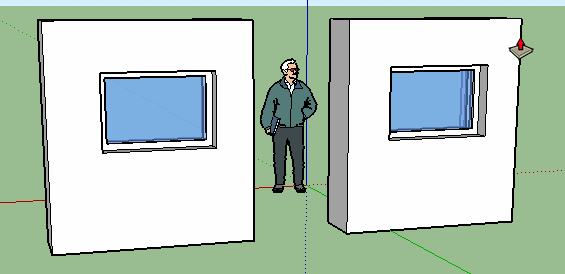

          [attachment=0:krps2oox]<!-- ia0 -->element.gif<!-- ia0 -->[/attachment:krps2oox]

          I do not think this is what he is asking for.

          What I think he wants is to have a plugin that would automatically cut the whole and draw a window in a single step. He does not want to have to do each of the steps involved in the process individually. Then he would like to be able to copy and/or move that window and have it automatically cut into the other locations. Again, not having to cut the whole and then draw the window.

          If there is such a plugin/tool, I have not found it.

          1 Reply Last reply Reply Quote 0
          • pilouP Offline
            pilou
            last edited by

            @unknownuser said:

            automatically cut the whole and draw a window in a single step

            If it's this, that is yet existing! πŸ˜„
            Punch Hole by Tig

            Frenchy Pilou
            Is beautiful that please without concept!
            My Little site :)

            1 Reply Last reply Reply Quote 0
            • BoxB Offline
              Box
              last edited by

              You need to set up a double cut component.
              Have a read here to start with
              http://sketchucation.com/resources/tutorials/beginner/317-window-cut-oopening-on-face

              Then go to this one.
              http://sketchucation.com/resources/tutorials/intermediate/321-window-cut-hole-thick-wall

              1 Reply Last reply Reply Quote 0
              • A Offline
                awenro
                last edited by

                Double Cut Components are the way to go. It's seldom that you get exactly the information you needed through a forum. This is one of those cases. Thank you so much!

                If someone is looking for the same thing, there a various videos explaining it: https://www.youtube.com/watch?v=EytC30y1GZ4

                1 Reply Last reply Reply Quote 0
                • cottyC Offline
                  cotty
                  last edited by

                  @awenro said:

                  It's seldom that you get exactly the information you needed through a forum.

                  I would say that this is normal here πŸ˜‰

                  my SketchUp gallery

                  1 Reply Last reply Reply Quote 0
