[PLUGIN] Click-Cuisine Kitchen IKEA
-
Hello
I am new in the world of "Plugin", and I thus wish to present you my work on the dynamic components.
My training is in joinery and it is thus for cella that I developed a tool facilitating at the most the modelling of a kitchen.
This tool, demonstrates a part of the possibilities infinity offered by the dynamic components.
Thanks to this revolution, he is not compulsory any more to master the Ruby Scripte to create intelligent, intuitive and productive applications.
Presentation
Click-Cuisine, push back the limits dynamic components, to allow you to realize your layouts of cooking in a few clicks.
Use:
Through interactive labels integrated into a dynamic 3D model, you can choose a piece of furniture, its color and its dimensions thanks to images.
Then of a simple click on labels with the tool " Interact with the dynamic components ", the 3D model is transformed according to your choices.

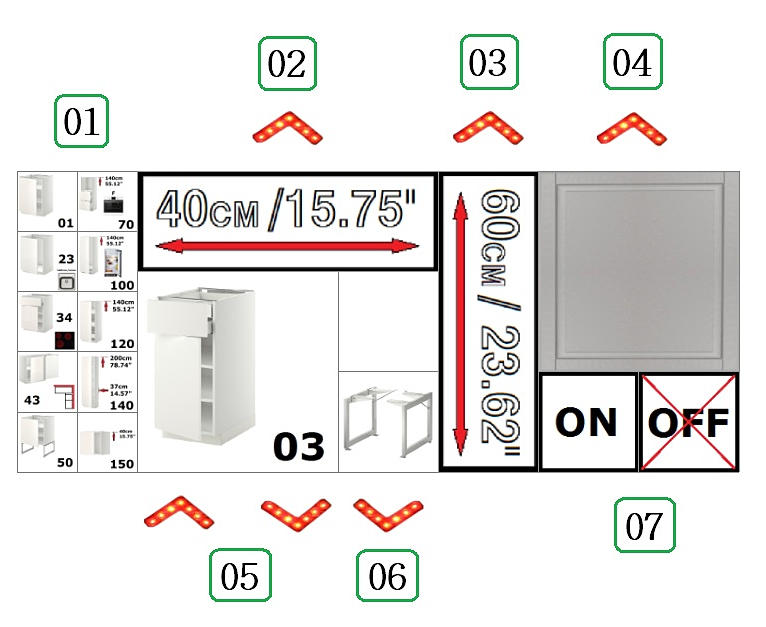

01 - Shortened, allowing to pass in another category of piece of furniture.
02 - Communicate the available widths following the chosen piece of furniture.
03 - Communicate the available depths following the chosen piece of furniture.
04 - Allows to choose among 32 main colors of facades IKEA.
05 - Choice of the piece of furniture following all the range " METOD " from IKEA.
06 - Choice of the type of piètement.
07 - Makes visible or invisible the facades of your piece of furniture.Advantages:
-
- a single 3D model is capable of taking the appearance, the dimensions and the colors of thousand furniture.
-
- the use is simplified at the most.
-
- you will have access to all the range IKEA in a few clicks exclusively on SketchUp.
-
- the use of Click-Cuisine, know no language barrier because it works with images.
Installation:
Important
Click-Cuisine is not Plugin as the others, because he contains no script in the format " rb ", and works only in dynamic components.
Click-Cuisine is compressed in a file " exe ", which will install all the dynamic components in the following file :
C:\Program Files (x86)\SketchUp\SketchUp 2014\Components
The path can be modified according to your version of Sketchup.
Windows SU8: C:\Program Files\Google\Google SketchUp 8\ Components
Windows SU13: C:\Program Files\SketchUp\SketchUp 2013\ Components
Windows SU14: C:\Program Files\SketchUp\SketchUp 2014 \Components
Mac SU8: Macintosh HD/Library/Application Support/Google SketchUp 8/SketchUp/ Components
Mac SU13: ~/Library/Application Support/SketchUp 2013/SketchUp/ Components
Mac SU14: ~/Library/Application Support/SketchUp 2014/SketchUp/ ComponentsDownload:
Trial version :
How to install Trial Version :
1 - Extract the "rar" file, 2 - Run the "exe" file using a double left-click of the mouse.Full version :
Videos Tutoriaux:
02 - Put down and parametrize your first piece of furniture.
03 - Change the handles of your piece of furniture.
04 - Put the following furniture.
05 - Finalize your row with the corner base.
06 - Use of the spinners and the dressings.
07 - Work-top and kitchen sink.
08 - Choose, Cooktop and its Oven.
09 - Wall Cabinet.
10 - Cupboards and arrangements Refrigerator.
11 - Download an extractor fan on warehouse 3D.
12 - Wall panels.
13 - Mask all the labels in 1 click.
14 - Change the color of your furniture in 1 Click.
15 - Change the color of your plans of work in 1 click.
16 - Find your products on the Internet in 1 click.
[BBvideo 320,240:3qyhzsvs]http://youtu.be/27VI56GM_b4[/BBvideo:3qyhzsvs]PS: if linguistic errors are visible in my presentation of Click-Cuisine, I you will be recognize to hold me informed.
Cordially
David Barros
-
-
Very tricky!
-
David,
Very smart...
Fredo
-
Thank you for your compliments
What is it necessary to make so that Click-Cuisine is referenced in "Plugin Store"?
Thank you for your help.
-
Hello
You will find today a version of the 'Click-Cuisine' Plugin, to download free trials.
How to install Click-kitchen testing version:
-
Extract the "rar" file.
-
Run the "exe" file using a double left-click of the mouse.
PS: Thanks to the moderators for informing me on the conditions of the Plugin Store.
Kind regards
David Barros
-
-
PluginStore requires .rbz
-
How to make an .rbz ?
Just make a .zip then rename it in .rbz ? -
Zip a .rb and it's folders/files and then rename.
-
What has to contain the file rb?
Is it difficult to bind my dynamic components to the file rb ?
Thank you for your help.
-
hi David
I sent you a PM re: trial not working on mac...
john
-
Thanks for your interest.
I answered the best that I have little to your private message.
For MAC users :
Here are 3 dynamic components unpacked, proposed in the trial version.
****Important "!"
The 3 files are components, avoid open as a SketchUp scene.
Install these 3 SKP files in your 'Components' directory, as follows :
~/Library/Application Support/SketchUp 2014/SketchUp/ Components/Click-Cuisine Trial version/"1","2","3"
You can later import the 3 files on your SketchUp scene from the window of the components.
Here is a list detailed products offered by Click-kitchen:
Trial Version:
100 - Base cabinet * 3 colors of facades - 300 products IKEA
1 - Handle.
2 - Legs.
3 - Worktop.
9 - Hobs.Full Version
100 - Base cabinet * 20 colors of facades - 3000 IKEA products
5 - Corner cabinet * 20 colors of facades - 100 IKEA products
40 - cabinets for oven and micro wave * 20 colors of facades - 800 IKEA products
15 - cabinets for fridge and freezer * 20 colors of facdes - 300 IKEA products
35 - High Cabinet * 20 colors of facades - 700 IKEA products
40 - Wall Cabinet * 20 colors of facades - 1400 IKEA productsTotal furniture IKEA = 6300
9 - Handles.
2 - Legs.
26 - Worktop.
20 - Cover panel.
40 - Ovens and microwaves.
4 - Skin Dynamic.
7 - Wall panels.I want to clarify that the quality of dynamic components are highlighted by Click-kitchen, only 3 intelligent furniture are able to reproduce 6300 IKEA furniture!
Finally, there is better way than dynamic components to optimize your workspace and thus become more productive.
Kind regards
David Barros
-
@tntdavid said:
What has to contain the file rb?
Is it difficult to bind my dynamic components to the file rb ?
Thank you for your help.
working on mac now so I've PM'd you an example rbz extension that uses your files, and works...
john
-
Very many thanks for your valuable help
I'll take your example to complement the tool bar.
-
How to convert an "rb" file, more files accompanying it in the format "rbz"?
Here is my method :
Or is the error ?
Thank you
-
I believe you need to make a .zip file first, not rar or exe...
I've been looking for the easy way in code but windows is dire for making .zip
open it as a topic in the dev forum and or PM TIG, a xip master...
john
-
I downloaded 'Winzip' and it works very well
Thank you
-
david,
if you look at this as well http://www.winzip.com/cl-features.html#sub-nav, you can possibly do it from Ruby Console or plugin...
john
-
IDK when I will need this myself, but this is a very commendable offering and presentation. I even like the picture of the product packaging! Thank you!
-
The Click-kitchen ruby version comes soon.
A handy toolbar will be available to model your kitchen even more easily and quickly.
The updated days will be offered to all customers of previous versions, even if the price increases.
Thus if you like click- kitchen, it is the moment to download.
Concevoir sa cuisine 3D | Dynamique Agencement
Apprenez à dessiner votre cuisine en 3D avec Sketchup et nos Plugins ou Sweet Home 3D et nos bibliothèques IKEA. Formez vous grâce aux vidéos de Dynamique Agencement.
Dynamique Agencement (www.composant-dynamique.com)
Kind regards
David Barros
Thanks to driven because it is him help which to the evolution of click-kitchen in ruby script.
-
How I can upgrade previous versions of this tool? I was purchased 2 month ago "CLICK-CUISINE v 1.1". Is it free to upgrade ?
