A,B, Sketches
-
These are more samples from the letter A.
Take a sketch as a tool for thinking and not a polished product:
-
More 2D and 3D examples:
You can see the form-generation rules such as rotation, repetition, overlapping, mirroring, resembling, etc.. here.
-
More of 2D forms inspired by the letter B.
-
I would like to see some 3D models based on these sketches.
For those of you who prefer having the physical version of the book, can grab it from Amazon: https://a.co/d/5YvA6m2
Here are 3D forms based on developing former 2D sketches.
-
As always, nice work and good inspiration.
-
Beautiful, masterful, loose drawings Majid
-
Thanks for those, Majid. Very insightful.
-
Like architects shorthand
-
Thank you, mates, for your kind words. I know that there are plenty of spots to be developed and improved. But the goal was to show the process (at least partially) from a rough sketch on.
-

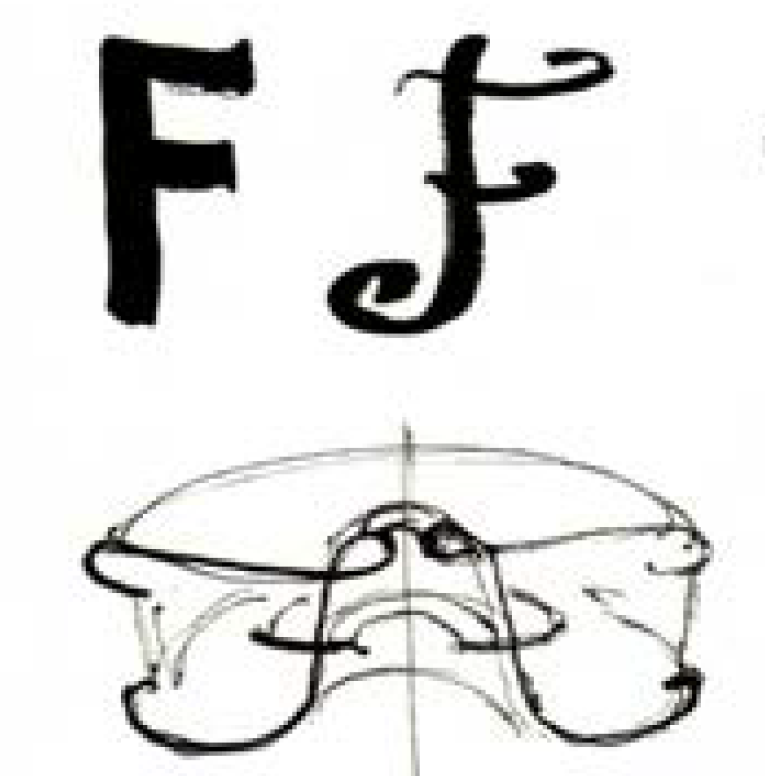

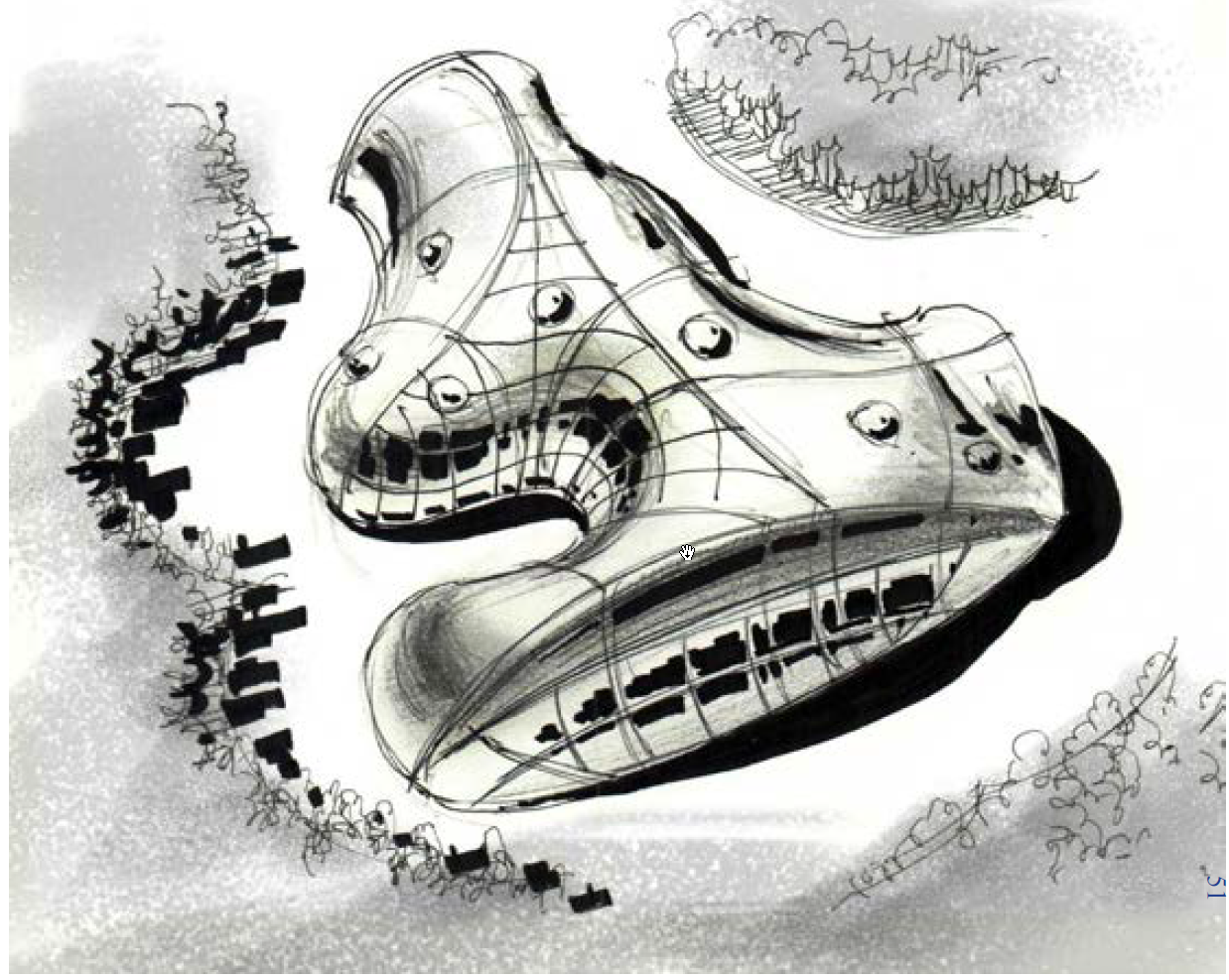

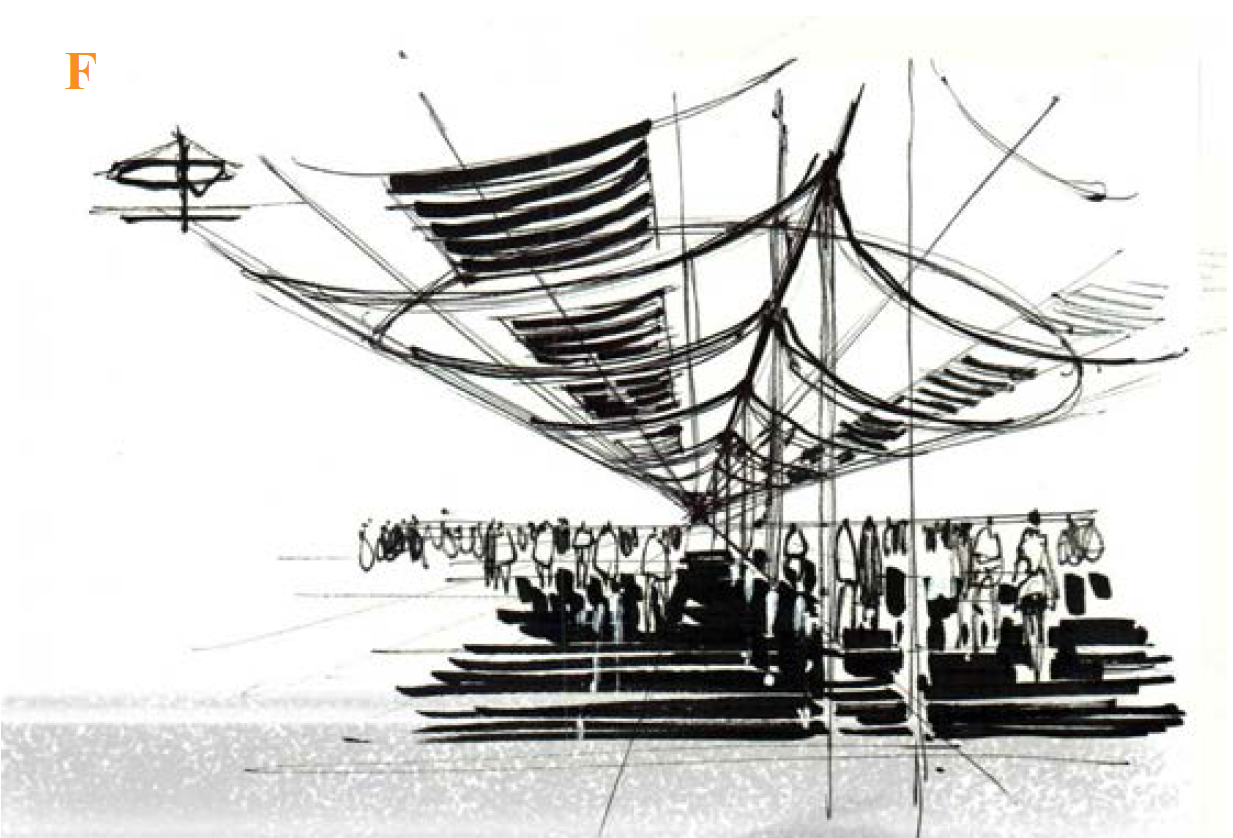

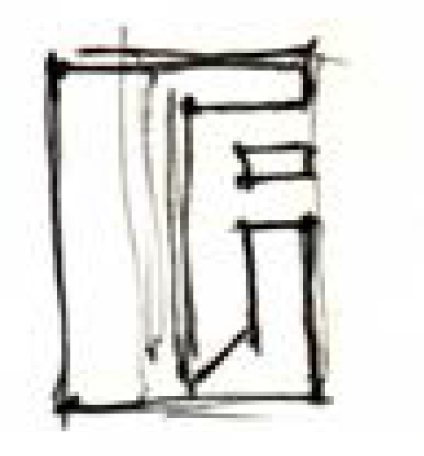

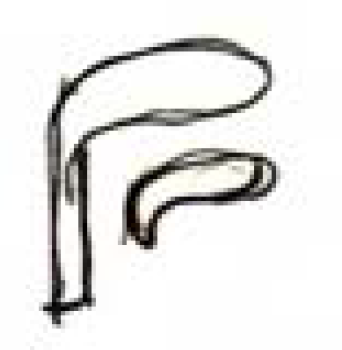

More examples of the "F" letter.

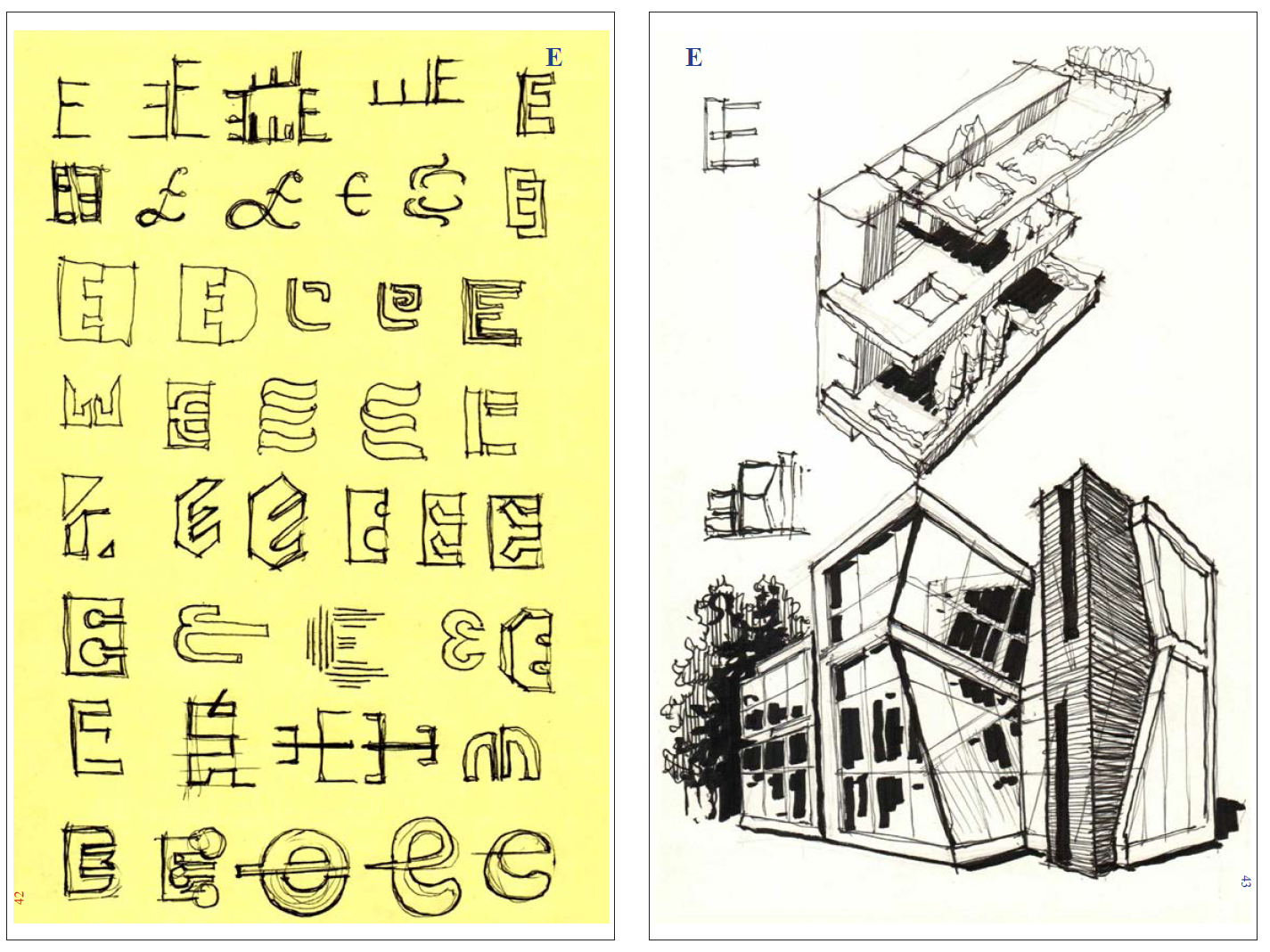

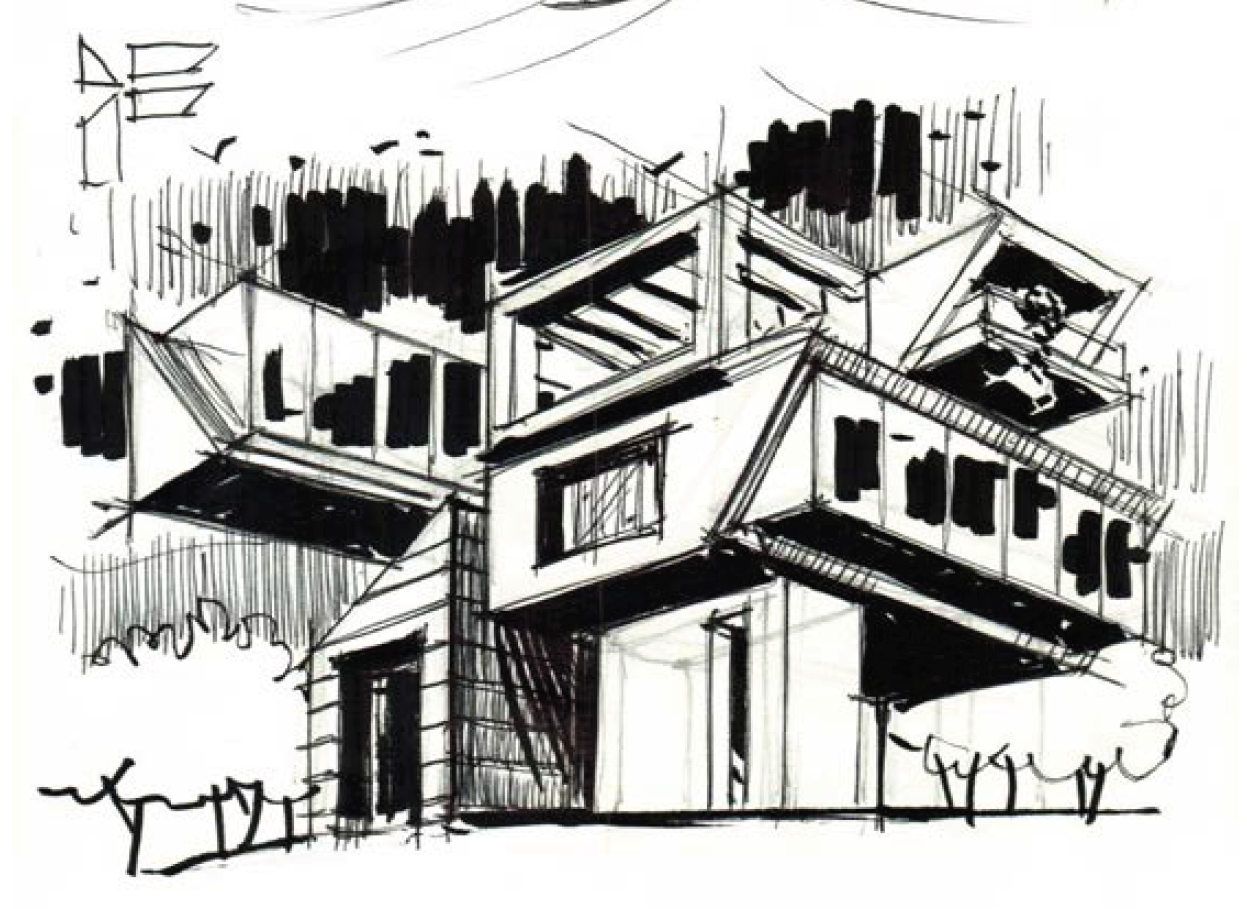

E letter..
E
-
Some more creative H!
-
I said to myself: Try your imagination with H, then try to make them 3D as well
-
I said to myself: Try your imagination with H, then try to make them 3D as well
-
Finally modeled an H building to see how it will come.
link to the model:
https://3dwarehouse.sketchup.com/model/30865223-c310-46bb-9743-46d655302747/An-H-building -
Lovely work as your usual.
-
The style is deliverable with the model: https://3dwarehouse.sketchup.com/model/30865223-c310-46bb-9743-46d655302747/An-H-building
-
As inspiration goes, it does not come better. Nicely done, Majid. Stay well out there.
-
Let's continue with the letter I:
As usual, I start from 2D sketches:
-
This post is deleted! -
Just imagine they could be plans/sections/facades of buildings such as houses, complexes, hospitals, hotels, etc...
