Medeek Electrical
-
Version 1.4.6 - 06.22.2024
- Added "generators" under misc. fixtures.
- Added "water heaters" under misc. fixtures.
- Added a variety of other common electrical devices categories under misc. fixtures.
-
Version 1.4.7 - 07.18.2024
- Added combined "smoke/CO" detectors under safety devices.
- Updated the Legend tool to include combined smoke/CO devices.
The included device in the smoke/CO library is a KIDDE 30CUDR. Just bought this one yesterday and modeled it this morning.
Note the 2D symbol text for this type of device is "SC".
-
Version 1.4.8 - 07.02.2025
Added "hvac" under misc. fixtures.
Added four generic hvac condensor units/sizes into the built-in library: 30X28, 30x32, 30x40, 36x32.
-
Version 1.4.9 - 02.11.2025
- Added three generic hvac condensor units/sizes into the built-in library (with WeatherGuardTM tops): 30X28_WG, 30x32_WG, 30x40_WG.
These additional variants added per customer request. They are the exact same as the similar sized units other than the addition of the weather guard top. Hopefully this gives enough selection for typical residential AC units however if there is need for any other styles etc... please let me know.
-
Version 1.5.0 - 02.16.2025
- Added two generic side discharge hvac/heat pump condensor units into the built-in library: HP_XV19_42, HP_XV19_36.
- Added various "Wilkerson Art" framed art prints within the "art" category under misc. fixtures: Wasco, Frog, Hummingbird, Eagle under Sun, Killer Whale, Abstract and Medeek (Grizzly Bear).
The funny thing is that I added the hummingbird framed art back in June (2024) as an Easter Egg but I guess no one noticed, or at least no one ever messaged me about it so I guess it went undetected. I've also added in a decent wall clock as well for those needing a wall clock mounted in a room.
Decided to take a much needed break from the code today and did some other misc. tasks. This one just kind of popped up on my radar so I figured I would add a few more framed prints.
As far as using the artwork in any of your projects, so long as you hold a licensed copy of the Medeek Electrical plugin you are authorized to use my artwork in any personal or professional projects you see fit. My only request is that if you do decide to use the artwork, please give attribution where possible and applicable.
-
Version 1.5.2 - 06.02.2025
- Updated the wire library to include all the common NMB wire sizes.
This update per customer request.
Wire sizes per the Southwire (Romex) documentation:
-
Version 1.5.4 - 08.11.2025
- Added "chargers" (EV) under misc. fixtures.
- Added a (Stiebel Eltron) tankless water heater and a (Tesla) wall charger/connector to the built-in libraries within misc. fixtures.
-
Version 1.5.5 - 12.11.2025
- Fixed the "terminal" wall corner configuration bug for all electrical fixtures.
-
Version 1.5.6 - 12.14.2025
- Added three and four gang dimmer and timer switches.
-

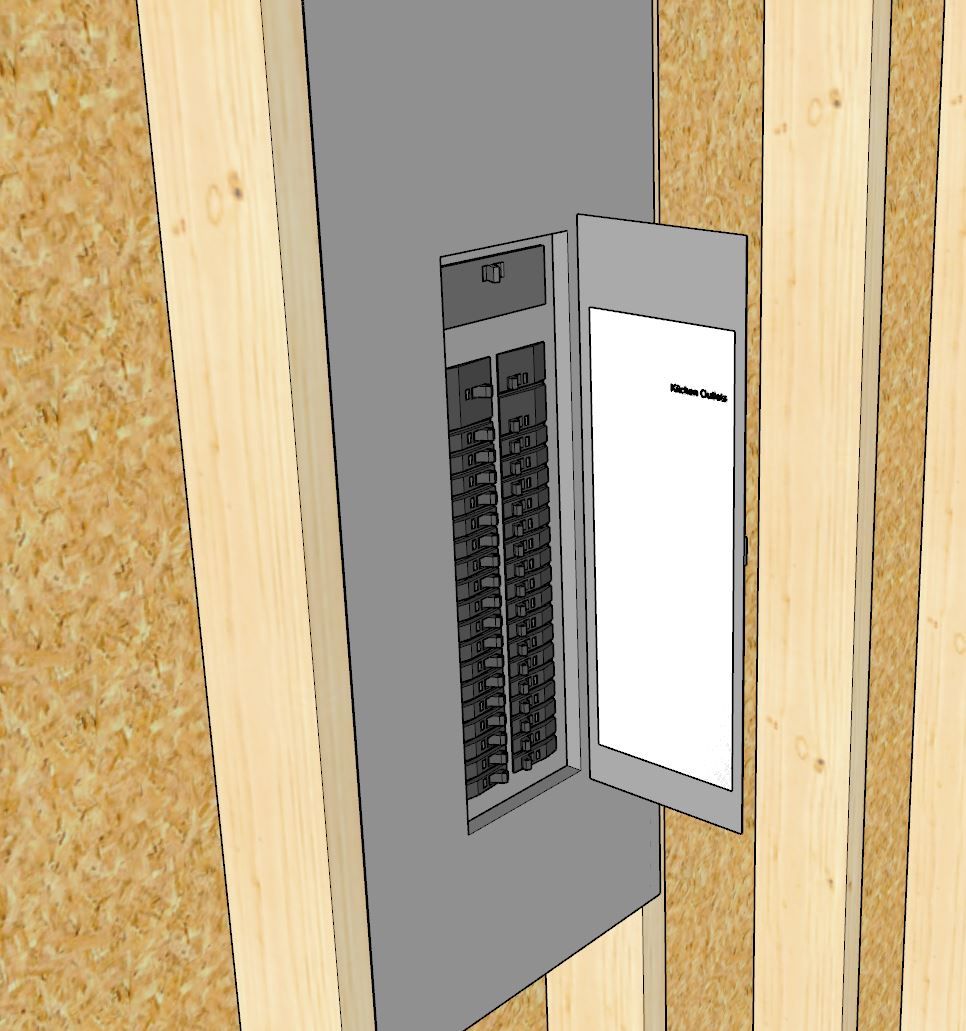

I’m thinking about adding in a tool so that one can assign labels within a load center as well as configure the circuit breakers. Thoughts on this?
-
so, on the white "paper" space you would have a list (slots) for entering text "kitchen light", "kitchen outlet", "garage door", "clothes washer", "clothes dryer" etc and add some parameters like voltage, amperage, single, dual, etc?
"clothes dryer", 240V, 30A, SINGLE -> voltage logic would span a 240V across both busses?
"air conditioner", 240V, 50A, DUAL -> would have two 240V splitting 25A across each for the air handler and compressor?
"kitchen lights", 120V, 20A, DUAL -> split two 10A circuits on single breaker (dual switches) for overhead and under counter lights to save breaker slots
etc
