    Screw threads on a cone

    Scheduled Pinned Locked Moved Newbie Forum
    sketchup
    2 Posts 2 Posters 233 Views 2 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L Offline
      lithium630
      last edited by

      I need to add threads to a tapered screw (so it's cone shaped). I've tried following instructions on different threads here but I haven't been able to figure it out. What's the best newbie guide to accomplish this?

      1 Reply Last reply Reply Quote 0
      • sdmitchS Offline
        sdmitch
        last edited by

        Determine the final dimensions of the threaded cone and multiply them by 100. Create a spiral path for the thread to follow. Create a shape to represent the cross-section of the thread at the end of the spiral. Use plugin FollowMe and Keep http://forums.sketchucation.com/viewtopic.php?t=16465 to extrude the thread. Create the cone to fit the thread. Select all and scale down to final dimensions.

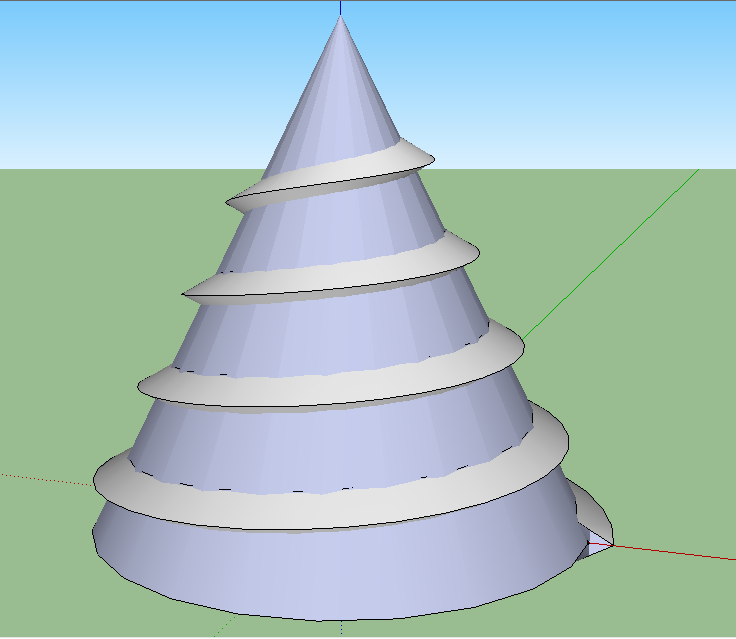

        Threaded cone.png

        Nothing is worthless, it can always be used as a bad example.

        http://sdmitch.blogspot.com/

        1 Reply Last reply Reply Quote 0
