Drawing on the vertical plane
-
Hello!
Is it possible to draw on the vertical plane without having to create a "face" first on which a polygon can be drawn, or maybe to draw on the "wrong" plane and then rotate?
Thanks in advance. -
Sure, just orbit the view until the vertical plane becomes perpendicular to you.
-
Thanks, Miguel!
-
Hi folks.
You can also use any of the standard views that present a vertical plane to you like Front, Back, Right or Left.
Just ideas.
-
@jean lemire said:
Hi folks.
You can also use any of the standard views that present a vertical plane to you like Front, Back, Right or Left.
Just ideas.
Are you referring to image reference planes?
-

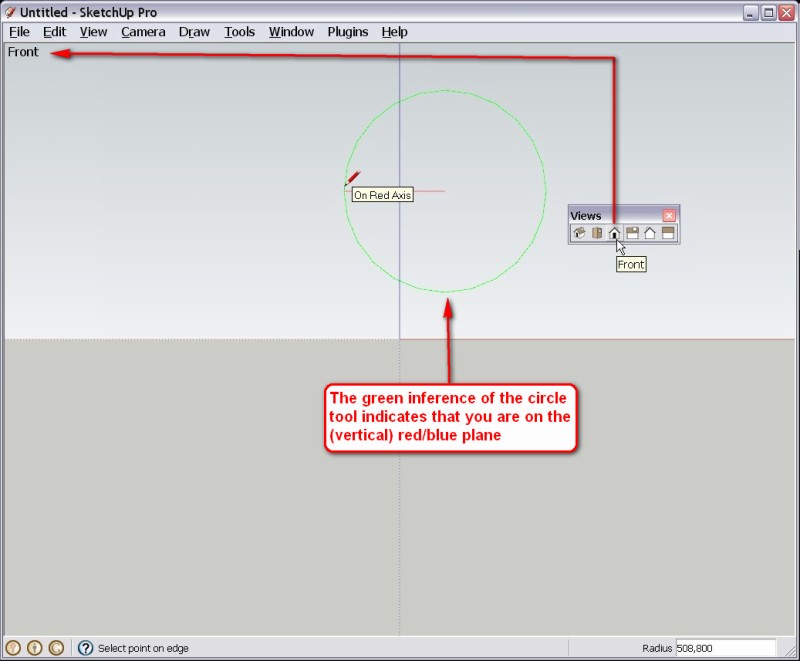

There is this "Standard views" toolbar - whith which you can always navigate to any special view. Note that while in an emty model, drawing would be made basically on the red/blue plane, if there is any model element in there, "in the depth", SU will tend to snap to those, too.
-
OK, got it.
-
If you want, you can even set up scenes with certain views (and even camera settings like perspective/orthogonal) and by clicking on these scenes, you can easily navigate between the different views.
