[majid]

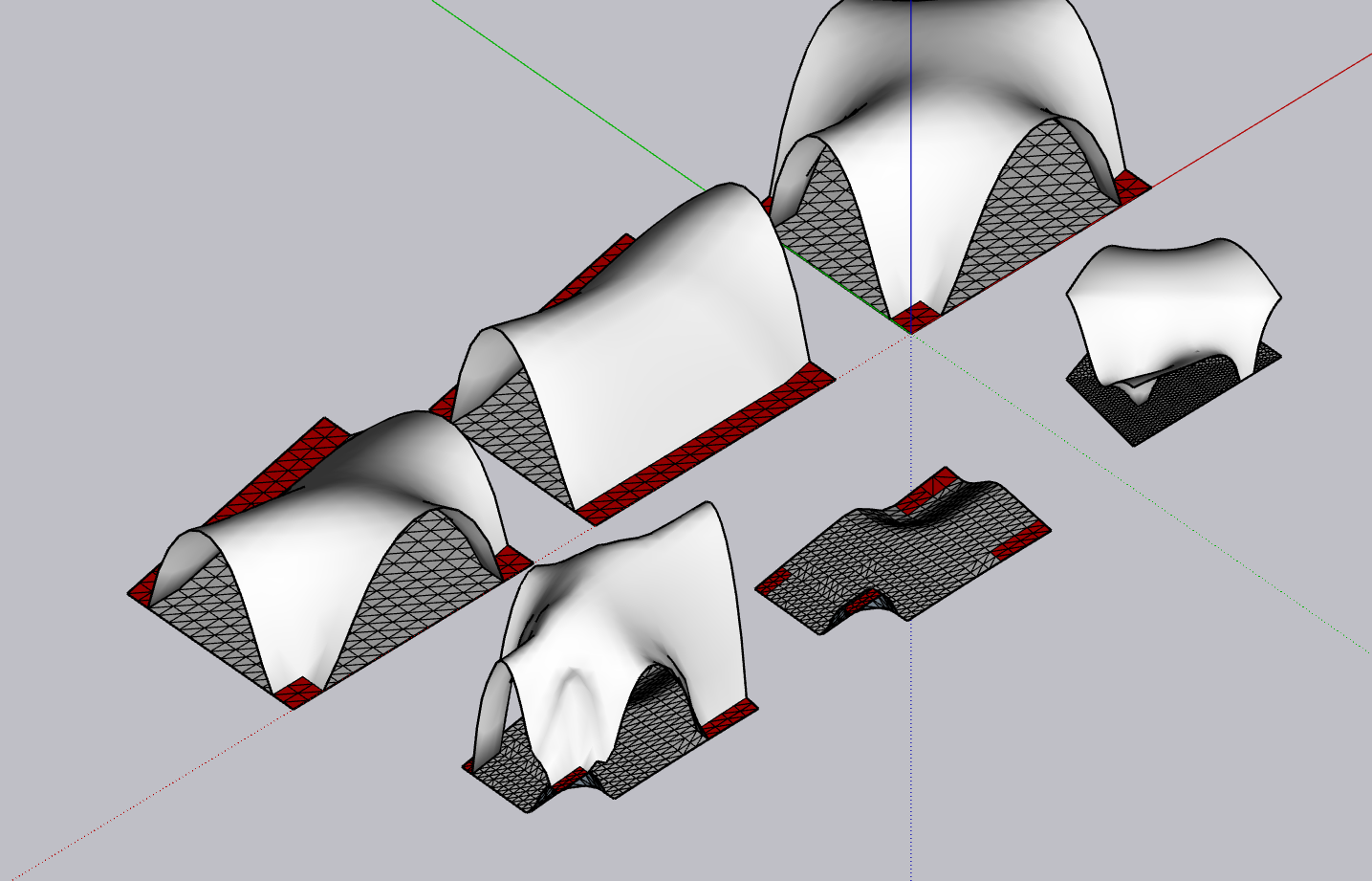

I have been developing a vault generator add-on for Blender 3D that is aimed to mimic RhinoVault (considering Blender cons/pros vs Rhino).
It tries to find the best compression-only form for the given input mesh. Recently, I used Gemini to translate it to work with SketchUp. It is in its early stages and would be fine if anyone helps me to improve it.

# ============================================================
# SKETCHUP FOLDING VAULTS V4 (Robust Non-Flat Mesh + Red Anchors) | By Majid Yeganegi AI optimization -2025 Nov.
# ============================================================

require 'sketchup.rb'

module VaultPlugin

  # --- 1. Math Helper Classes (Unchanged for performance) ---
  class SparseMatrix
    attr_reader :n_rows
    def initialize(n_rows)
      @n_rows = n_rows
      @rows = Hash.new { |h, k| h[k] = {} }
    end
    def add(r, c, val)
      return if r >= @n_rows || c >= @n_rows
      @rows[r][c] ||= 0.0
      @rows[r][c] += val
    end
    def dot(vec)
      result = Array.new(@n_rows, 0.0)
      @rows.each do |r_idx, col_data|
        sum = 0.0
        col_data.each { |c_idx, val| sum += val * vec[c_idx] }
        result[r_idx] = sum
      end
      result
    end
  end

  class VectorMath
    def self.sub(a, b); a.zip(b).map { |x, y| x - y }; end
    def self.add(a, b); a.zip(b).map { |x, y| x + y }; end
    def self.scale(vec, s); vec.map { |x| x * s }; end
    def self.dot(a, b); a.each_with_index.reduce(0) { |sum, (val, i)| sum + val * b[i] }; end
  end

  # --- 2. CG Solver ---
  def self.cg_solve(matrix, b, x0, max_iter, tol)
    x = x0.dup
    r = VectorMath.sub(b, matrix.dot(x))
    p = r.dup
    rsold = VectorMath.dot(r, r)

    max_iter.times do
      ap = matrix.dot(p)
      p_ap = VectorMath.dot(p, ap)
      break if p_ap.abs < 1e-15

      alpha = rsold / p_ap
      x = VectorMath.add(x, VectorMath.scale(p, alpha))
      r = VectorMath.sub(r, VectorMath.scale(ap, alpha))
      rsnew = VectorMath.dot(r, r)
      break if Math.sqrt(rsnew) < tol

      p = VectorMath.add(r, VectorMath.scale(p, rsnew / rsold))
      rsold = rsnew
    end
    return x
  end

  # --- 3. Helper: Check if Material is RED ---
  def self.is_red?(entity)
    return false unless entity.material
    c = entity.material.color
    # Check for Pure Red (255, 0, 0) or close to it
    return true if c.red > 200 && c.green < 50 && c.blue < 50
    return false
  end

  # --- 4. Main Process ---
  def self.process_mesh(selection_mesh, density_input, load_input, scale_factor, iterations)
    model = Sketchup.active_model
    entities = model.active_entities

    # A. Topology Extraction
    verts = []
    v_to_id = {}
    faces = selection_mesh.grep(Sketchup::Face)

    if faces.empty?
      UI.messagebox("Please select a Mesh (Faces) first.")
      return
    end

    faces.each do |f|
      f.vertices.each do |v|
        unless v_to_id.key?(v.entityID)
          v_to_id[v.entityID] = verts.length
          verts << v
        end
      end
    end
    n = verts.length

    # B. Explicit Anchor Detection (THE "RED" RULE ONLY)
    anchors = []

    # Check 1: Red Faces
    faces.each { |f| anchors.concat(f.vertices.map { |v| v_to_id[v.entityID] }) if is_red?(f) }

    # Check 2: Red Edges
    edges = faces.map { |f| f.edges }.flatten.uniq
    edges.each do |e|
      if is_red?(e)
        anchors << v_to_id[e.start.entityID]
        anchors << v_to_id[e.end.entityID]
      end
    end

    anchors = anchors.uniq

    if anchors.empty?
      UI.messagebox("Error: No RED anchors found! The mesh will float freely.\nPlease paint at least one edge or face RED.")
      return
    end

    # C. Index Mapping
    free_map = []
    global_to_free = {}
    free_count = 0

    (0...n).each do |i|
      unless anchors.include?(i)
        free_map << i
        global_to_free[i] = free_count
        free_count += 1
      end
    end
    n_free = free_map.length

    if n_free == 0
      UI.messagebox("Error: All selected vertices are anchors. Nothing to calculate.")
      return
    end

    # D. Build Edges Index
    edges_idx = edges.map do |e|
      id1 = v_to_id[e.start.entityID]
      id2 = v_to_id[e.end.entityID]
      [id1, id2] if id1 && id2
    end.compact

    # E. TNA Setup & Matrix Assembly
    q_val = density_input
    l_ff = SparseMatrix.new(n_free)
    d = Array.new(n, 0.0)

    # Build Laplacian (L_ff) and Diagonal (d)
    edges_idx.each do |u, v|
      w = q_val
      d[u] += w
      d[v] += w

      u_free = !anchors.include?(u)
      v_free = !anchors.include?(v)

      if u_free && v_free
        uf, vf = global_to_free[u], global_to_free[v]
        l_ff.add(uf, vf, -w)
        l_ff.add(vf, uf, -w)
      end
    end

    free_map.each { |i_glob| l_ff.add(global_to_free[i_glob], global_to_free[i_glob], d[i_glob]) }

    # F. Vertical Equilibrium (Solve for Final Z: Z_f)

    # Initial Z-positions of free nodes (used as the initial guess and for calculating Delta Z later)
    z_orig_free = Array.new(n_free)
    free_map.each_with_index { |glob_idx, i| z_orig_free[i] = verts[glob_idx].position.z }

    z_current = z_orig_free.dup

    # Iterative Solve for Z_f
    iterations.times do
      rhs = Array.new(n_free, -load_input) # -Pf

      edges_idx.each do |u, v|
        w = q_val
        u_free = !anchors.include?(u)
        v_free = !anchors.include?(v)

        # Contribution of fixed anchors to the RHS (-Lfa * Za)
        if u_free && !v_free
          rhs[global_to_free[u]] += w * verts[v].position.z
        elsif !u_free && v_free
          rhs[global_to_free[v]] += w * verts[u].position.z
        end
      end

      z_current = cg_solve(l_ff, rhs, z_current, 200, 1e-5)
    end

    # G. Calculate and Apply Displacement (Delta Z)

    # Delta Z = Z_final - Z_original. This is the displacement vector.
    # It will be negative for a hanging form (since Z_f < Z_orig_f).
    delta_z = VectorMath.sub(z_current, z_orig_free)

    model.start_operation("Generate Vault", true)

    group = entities.add_group
    mesh_out = Geom::PolygonMesh.new

    final_pts = []

    # Use the sign of the scale factor to determine the flip
    # scale_factor = -5.0 means: flip the negative displacement (to positive) and scale by 5.0
    scale = scale_factor

    (0...n).each do |i|
      v_orig = verts[i].position
      if anchors.include?(i)
        final_pts << v_orig # Anchors stay at their original Z
      else
        dz_calc = delta_z[global_to_free[i]]

        # Z_final = Z_original + (Delta Z * Scale)
        # If Delta Z is negative (hanging form) and Scale is negative (-5.0),
        # the result is positive displacement, creating the arch/vault.
        z_final = v_orig.z + (dz_calc * scale)

        final_pts << [v_orig.x, v_orig.y, z_final]
      end
    end

    # Reconstruct faces
    faces.each do |f|
      idxs = f.vertices.map { |v| v_to_id[v.entityID] }
      mesh_out.add_polygon(idxs.map { |k| final_pts[k] })
    end

    group.entities.add_faces_from_mesh(mesh_out)
    group.name = "Vault_Result"
    group.material = "White"

    group.entities.grep(Sketchup::Edge).each { |e| e.soft = true; e.smooth = true }

    model.commit_operation
  end

  # --- 5. UI Dialog ---
  def self.show_dialog
    prompts = ["Force Density (Stiffness)", "Load", "Height Scale (Multiplier)", "Iterations"]
    # Default Scale set to 5.0, as requested.
    defaults = [1.0, 1.0, 5.0, 30]

    input = UI.inputbox(prompts, defaults, "TNA Settings")
    return unless input

    sel = Sketchup.active_model.selection
    self.process_mesh(sel, input[0], input[1], input[2], input[3])
  end

  unless file_loaded?(__FILE__)
    menu = UI.menu('Plugins')
    menu.add_item('Create Vault (TNA)') { self.show_dialog }
    file_loaded(__FILE__)
  end
end

[TIG]

Majid

I'll look at it for you and send a fixed version by PM - it might be early next week...
